Section 03 ENGINES (2-STROKE)
Subsection 04 (LEAK TEST AND ENGINE DIMENSION MEASUREMENT)
Crankshaft Deflection in Center
of Crankshaft
ENGINE TYPE
MAXIMUM IN CENTER
OF CRANKSHAFT
mm (in)
All 0.08 (.0031)
NOTE: Crankshaft deflection cannot be correctly
measured between centers of a lathe.
NOTE: If the deflection exceeds the specified tol-
erance, crankshaft should be repaired or replaced.

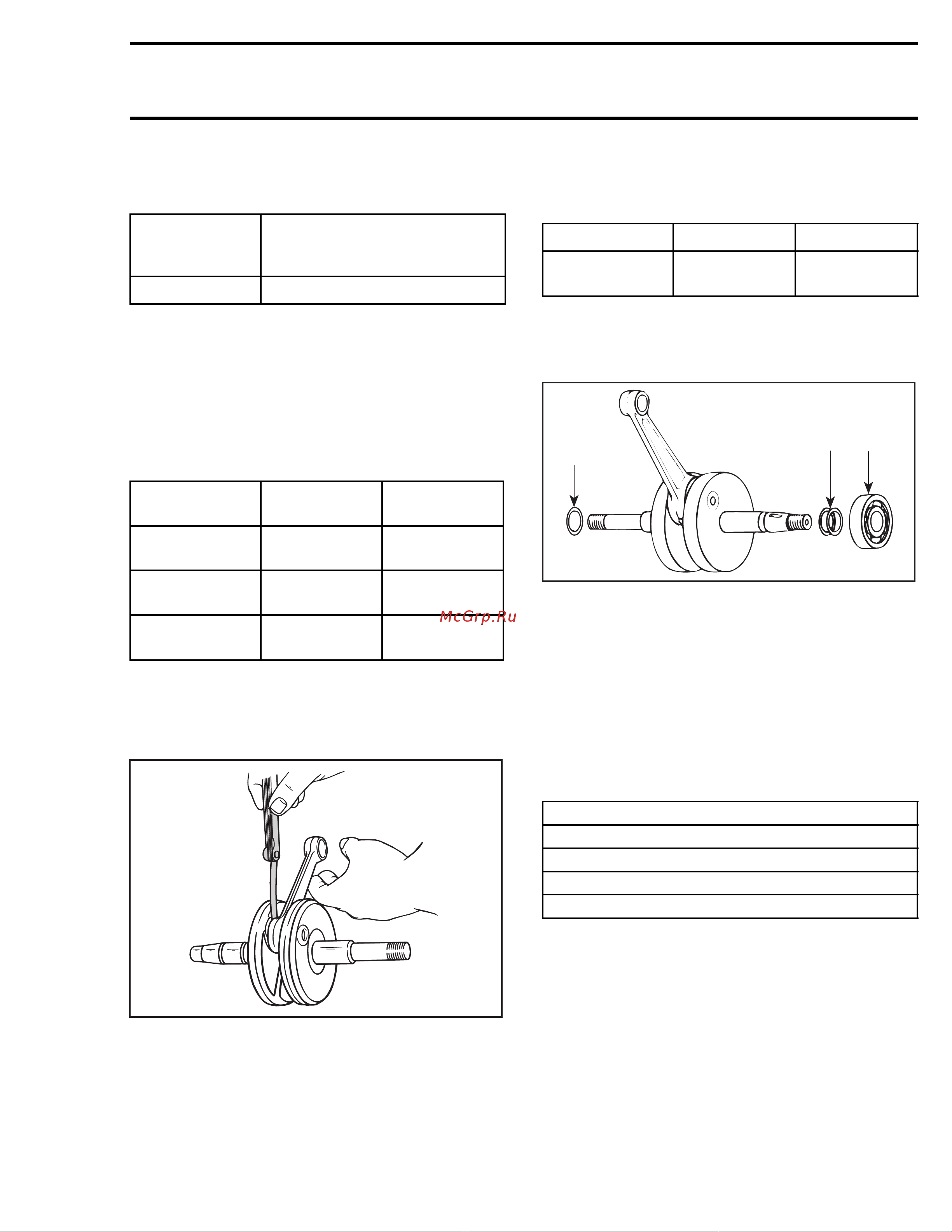

CONNECTING ROD BIG END
AXIAL PLAY
ENGINE TYPE
NEW PARTS
(min. - max.)
WEAR LIMIT
277, 443 and
552
0.20 - 0.53 mm
(.008 - .021 in)
1.0 mm
(.039 in)
593
0.39 - 0.74 mm
(.015 - .029 in)
1.20 mm
(.047 in)
593 HO SDI
0.31 - 0.67 mm
(.012 - .026 in)
1.20 mm
(.047 in)
Using a feeler gauge, measure distance between
thrust washer and crankshaft counterweight. If
the distance exceeds specified tolerance, repair or
replace the crankshaft.
A01C0SA
TYPICAL
CRANKSHAFT END-PLAY
277 Engine Type
ENGINE TYPE MINIMUM MAXIMUM
277
0.10 mm
(.004 in)
.030 mm
(.012 in)
Adjustment
Crankshaft end-play is adjusted with shims locat-
ed between crankshaft and magneto side bearing.
A01C1NA
3
1
5
4
2
1. Distance ring
2. Shim location
3. Bearing
4. PTO
5. MAG
CAUTION: Always install end-play adjustment
shims on the magneto side between bearing
and crankshaft counterweight.
The following is required for the adjustment pro-
cedure:
– adjustment shims (refer to Parts Catalog)
THICKNESSES AVAILABLE
0.10 mm (.004 in)
0.20 mm (.008 in)
0.30 mm (.012 in)
0.50 mm (.020 in)
– micrometer
– caliper.
Total shim thickness needed for the end-play ad-
justment is determined with the following proce-
dure:
• Measure crankcase halves as illustrated (M
1
and M
2
).
A standard compressed crankcase gasket will
have a 0.30 mm (.012 in) thickness (M
3
). Add
these measurements to obtain dimension A.
mmr2005-013 119
