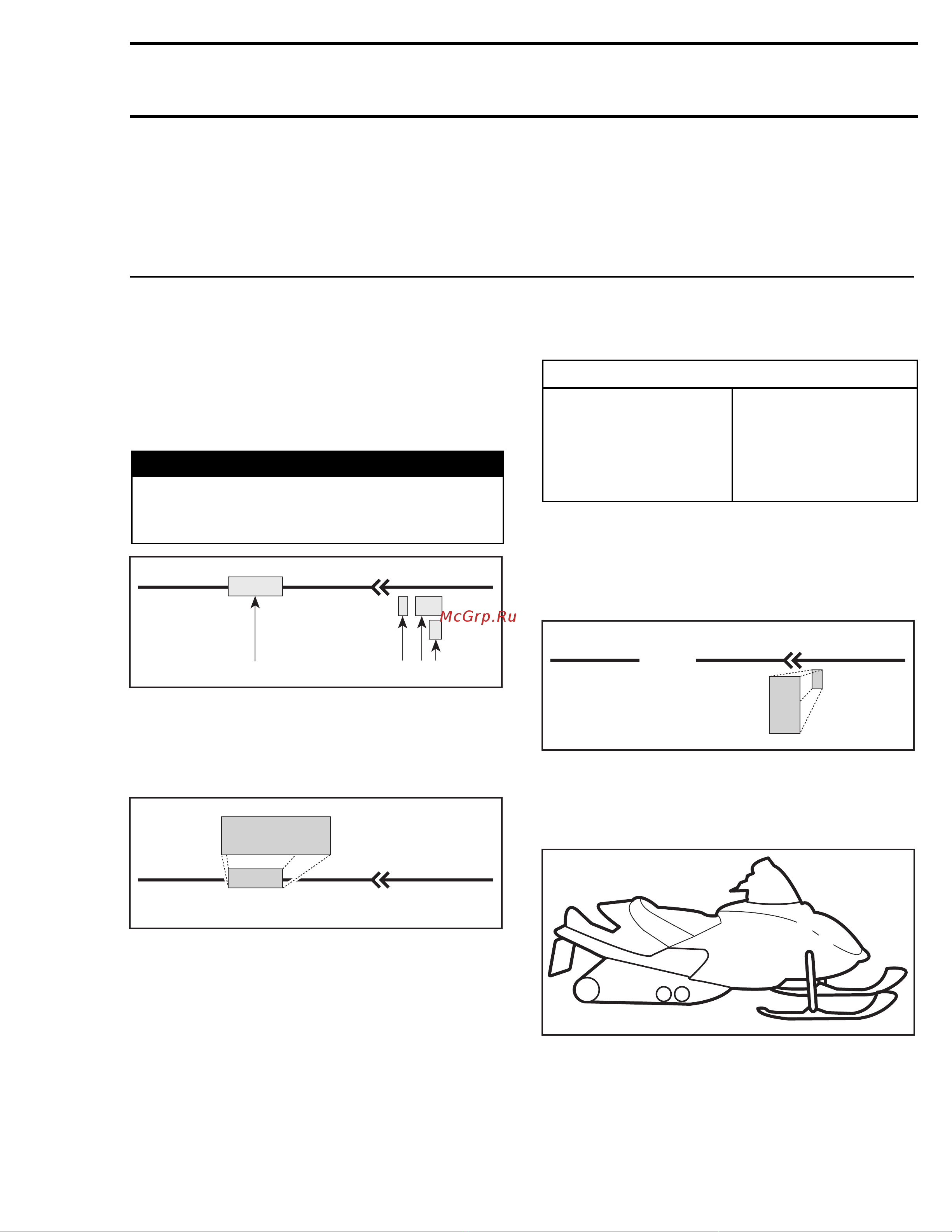

Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
WIRING DIAGRAMS
SERVICE TOOLS
Description Part Number Page
connector crimping tool........................................................
529 035 909 ......................................... 494
crimper die............................................................................
529 035 906 ......................................... 494
Wiring diagrams can be found at the end of this
subsection.
WIRING DIAGRAM LEGEND
WARNING
Ensure all terminals are properly crimped
on the wires and all connector housings are
properly fastened.
A00I04E
XX/XX
1
- MC
1
2 3 4
D
1. Wire colors
2. Connector housing area
3. Housing code per area
4. Wire connector location in housing
WIRE COLORS
1- MC
D
A00I04F
XX/XX
XX/XX
Thefirstcolorofawireisthemaincolor,second
color is the stripe.
Example: YL / BK is a YELLOW wire with a BLACK
stripe.
COLOR CODE
BE
BK
BU
BR
GN
GY
—
—
—
—
—
—
BEIGE
BLACK
BLUE
BROWN
GREEN
GREY
OR
RD
VI
WH
YL
—
—
—
—
—
ORANGE
RED
VIOLET
WHITE
YELLOW
CONNECTOR HOUSING AREA
The first digit of the connector identification num-
ber presents the location of the connector on the
vehicle.
- MC
D
XX/XX
A00I04G
11
1
The following illustration shows the snowmobile
with number on it. These numbers will corre-
spond with the locations of the connector on the
vehicle along with a brief description.
7
10
A32H43A
12
11
2
1
8
3
4
9
6
5
mmr2005-102 485
