Section 06 ENGINE MANAGEMENT (4-TEC)
Subsection 03 (COMPONENT INSPECTION AND ADJUSTMENT)
The only thing that has to be performed when
the throttle body has been replaced is the Closed
Throttle and Idle Actuator reset. Refer to
THROTTLE POSITION SENSOR (TPS) in ELEC-
TRONIC MANAGEMENT below.

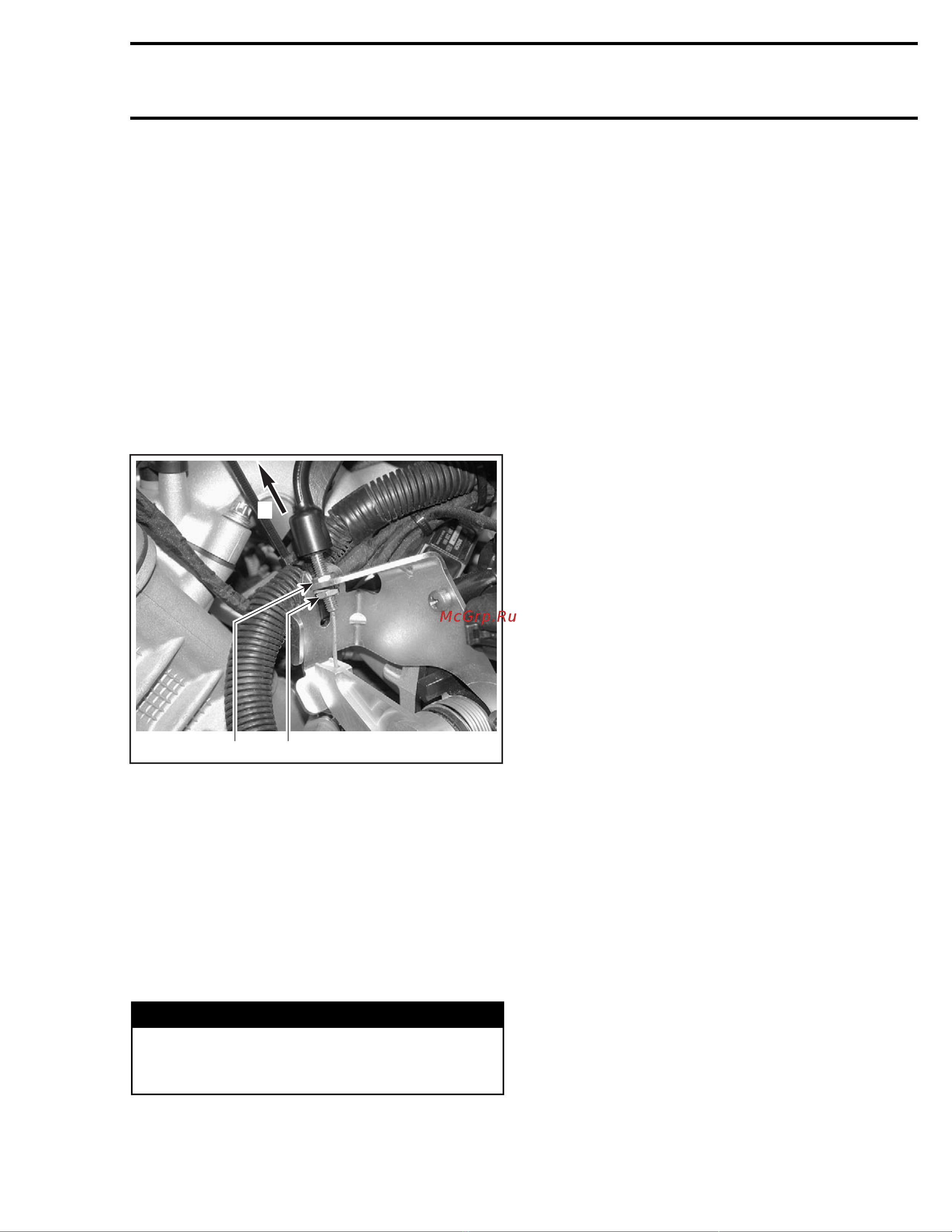

Throttle Cable Adjustment
Mechanically adjust the throttle cable.
Handlebar and throttle cable must be at their nor-
mal position.
Apply full throttle.
Pullonthrottlecablehousingwithaforceof50N
(11 lbf). Tighten top nut to 1 N•m(9lbf•in).
Tighten bottom nut to 4.5 N•m(40lbf•in).
1
A32I0SA
2
A
WIDE OPEN THROTTLE POSITION
1. Top nut torqued to 1 N•m(9lbf•in)
2. Bottom nut torqued to 4.5 N•m(40lbf•
in)
A. 50 N (11 lbf)
Activate throttle lever a few times. Make sure
throttle cam of throttle body rests against idle
speed screw without any tension in the cable.
CAUTION: If there is no free-play at idle posi-
tion, it may cause poor idling and startability.
Improper cable adjustment will cause strain on
cable and/or damage cable bracket or throttle
lever at handlebar.
WARNING
Make sure idle speed stopper contacts throt-
tle cam when throttle lever is fully released at
handlebar.
Closed Throttle and Idle Actuator Reset
Perform the Closed Throttle and Idle Actuator
reset as described in THROTTLE POSITION SEN-
SOR (TPS) in ELECTRONIC MANAGEMENT be-
low.
mmr2005-032 317
