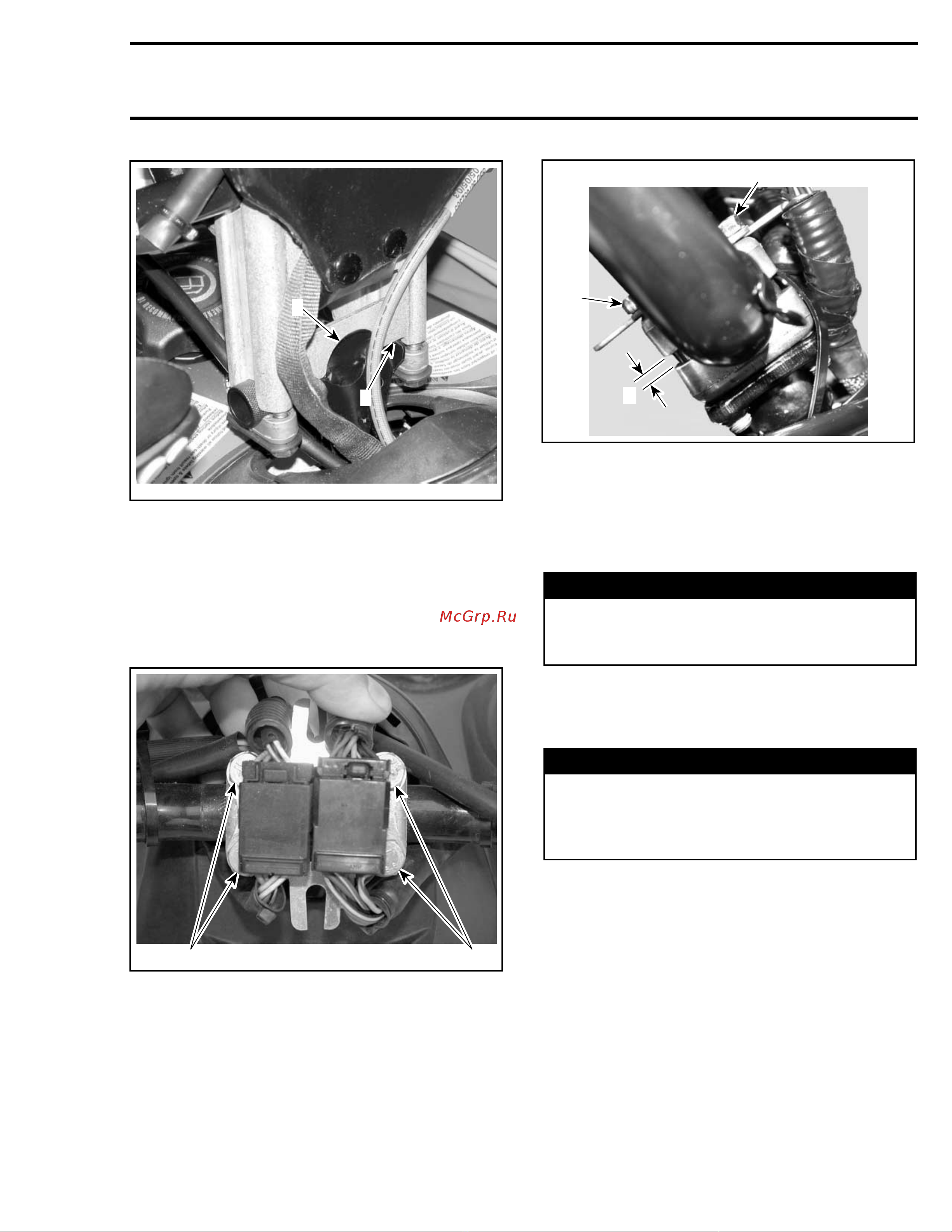

Section 08 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
A33G1CA
1
2
1. Opening here
2. Extension against stopper
Handlebar Position Adjustment
The handlebar position can be adjusted to suit driv-
er’s preferences.
Loosen all 4 bolts no. 4 retaining handlebar to
steering column.
1
A33H16A
1
TYPICAL
1. Four bolts
Move handlebar to the desired position. Torque
all 4 bolts no. 4 to 25 N•m(18lbf•ft).
1
1
A33G0GA
A
TYPICAL
1. Torque to 25 N•m(18lbf•ft)
A. Equalgapallaround
CAUTION: Tighten the bolts equally in a criss-
cross sequence and ensure there is an equal
gap on each side of the clamps no. 2.
WARNING
Avoid contact between the brake handle and
the windshield by NOT adjusting the handle-
bar too high.
Readjust throttle lever housing no. 21 and switch
housing accordingly to optimal angle so that you
will not need to release your grip to operate levers.
WARNING
Adjust with vehicle at rest in a safe place. Se-
curely retighten all fasteners. Never rotate
throttle lever to operate with fingers instead
of thumb.
Handlebar Strap
Summit
Ensure to position strap no. 28 symmetrically each
side of steering support and so that its rubber band
is on the inner side. Tilt strap 5° towards driver
relative to steering column axis or relative to han-
dlebar extension on so equipped models.
Position strap between rubber band and screw
end to protect the rubber band.
Retaining clip and hardware
must be installed in
thesamepositiononboths
trap ends.
mmr2005-141 287
