Section 08 ELECTRICAL
Subsection 01 (IGNITION TIMING)
WARNING
Place ski tips against a wall, raise rear of vehicle
on a stand, so that track does not contact the
ground. Do not allow anyone in front of or be-
hind the vehicle while engine is running. Keep
clear of track and do not wear loose clothing
which can get caught in moving parts.
– Connect the timing light pickup to a spark plug
cable.
NOTE: To avoid an incorrect reading due to paral-
lax, view the magneto flywheel and the crankcase
timing marks in a straight line.
– Connect tachometer wire to spark plug wire or
aim tachometer toward spark plug wire without
using any connection wire.
– Start the engine and raise the engine speed to
3500 RPM while observing the timing marks,
refer to illustration.
NOTE: Ignition timing may be verified when en-
gine speed is anywhere within 3000 - 4000 RPM.
A03E1EA
2
3
1

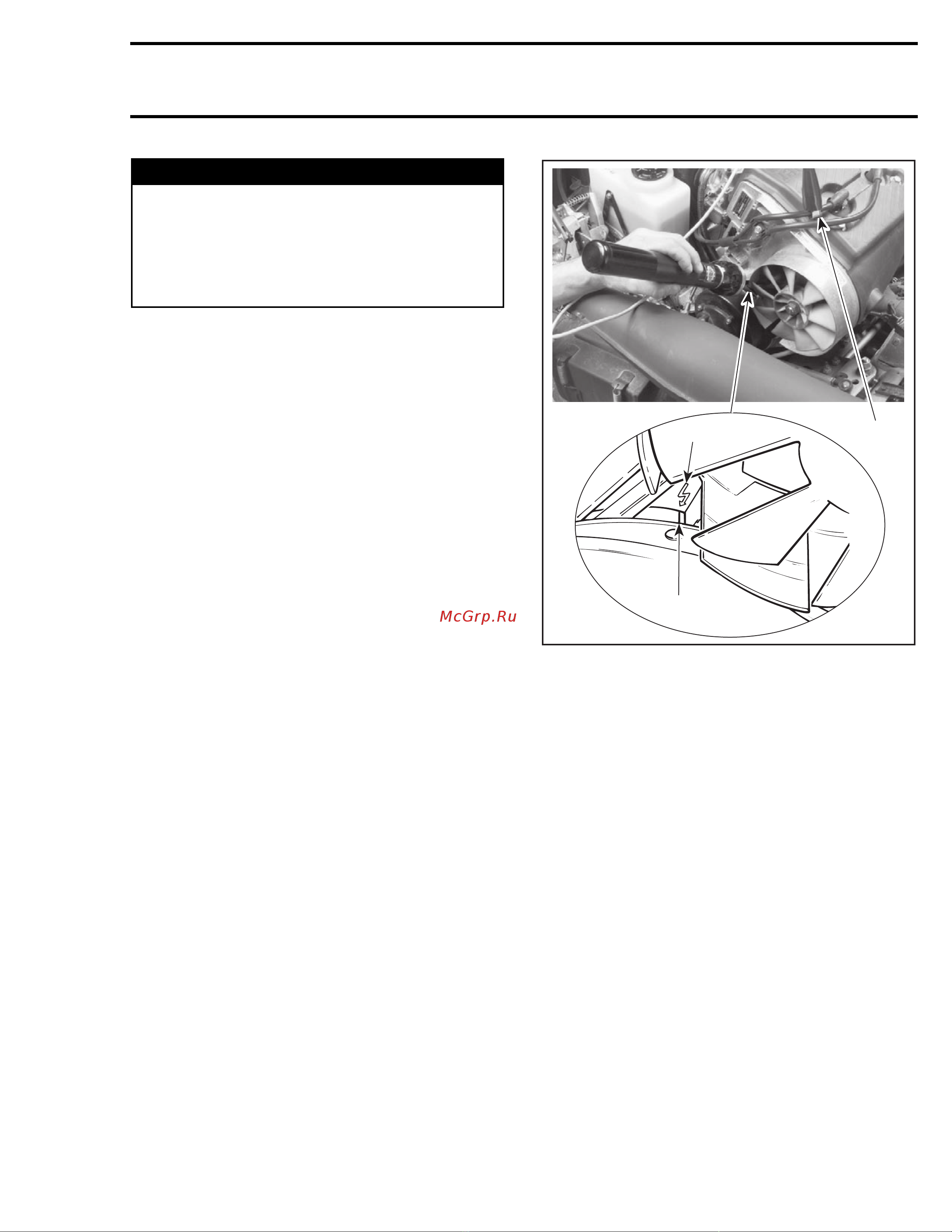

1. Timing light pickup on MAG side
2. Crankcase arrow
3. Magneto flywheel mark
– The magneto flywheel mark scribed previous-
ly and the crankcase arrow should be perfect-
ly aligned. If the marks do not align, a faulty
trigger coil (check proper grounding of coil), a
faulty flywheel, a faulty Woodruff key, a mis-
aligned (twisted) crankshaft or a faulty CDI mod-
ule could be the cause: substitute one part at a
time and recheck timing marks (check connec-
tors condition prior to substituting any part).
– Install parts which were removed.
mmr2005-042 425
