Section 09 REAR SUSPENSION
Subsection 01 (TORQUE REACTION SUSPENSION)

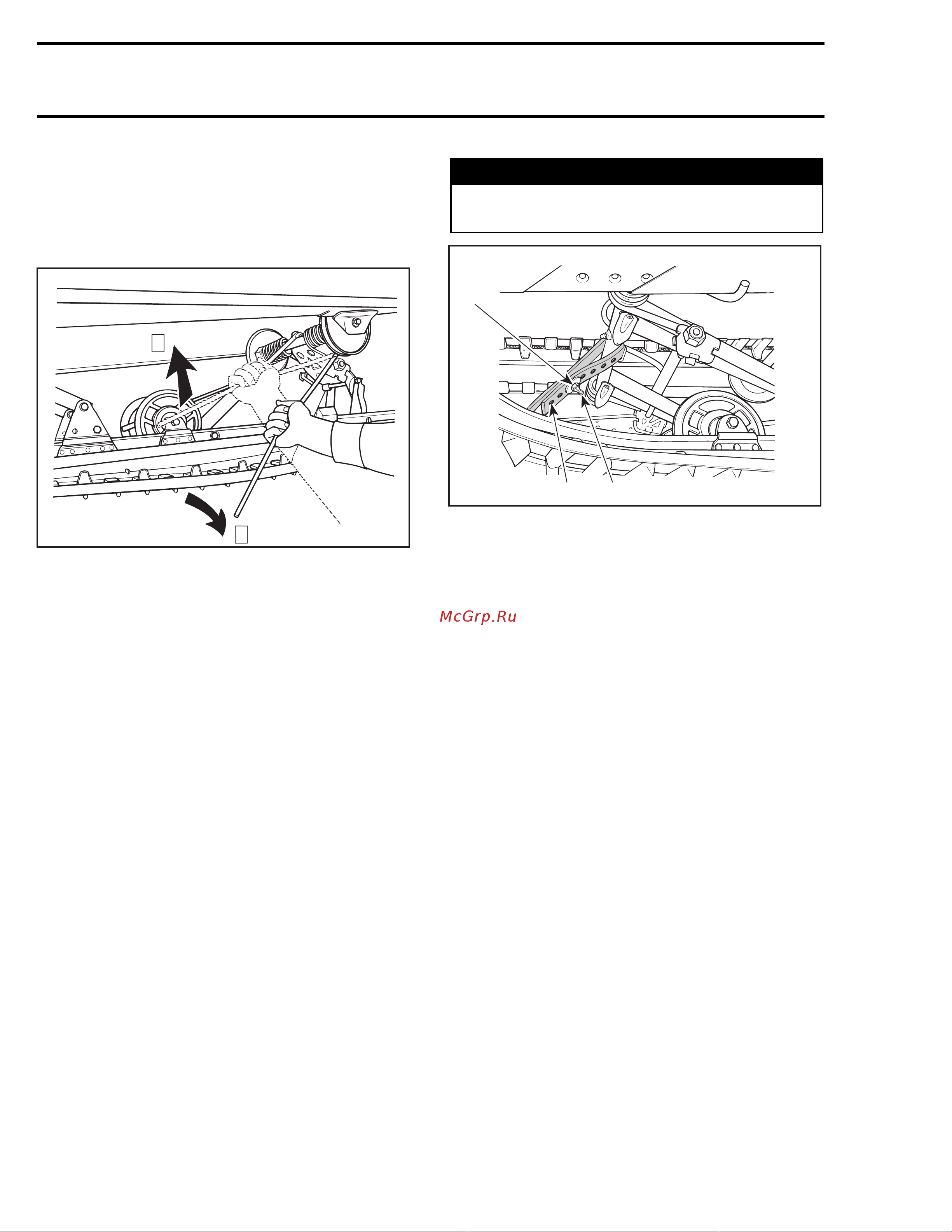

NOTE: To quickly change rear cam position with-
out using any tool:
– Lay vehicle on its side.
– Unhook rear spring by hand from lower idler
wheel.
A05F0FA
1
2
– Turn adjustment cam by hand to the desired
position.
– Reinstall spring on its support making sure that
it sits in the groove of support.
Stopper Strap
The function of the stopper strap is to control the
transfer of vehicle weight during acceleration and
to control track lead angle.
The longer the belt, the more the weight will be
transferred to the track to provide a better trac-
tion. The shorter the belt, the lesser the weight
transferred to the track, thus maintaining a more
positive steering.
The longer the belt, the greater will be the track
lead angle. A shorter belt will reduce track lead
angle which may help when negotiating a particu-
lar snow condition.
Adjusting holes on the stopper strap allow to
adjust it according to driver's requirements, field
and/or snow conditions.
CAUTION: Whenever stopper strap length is
changed, track tension must be readjusted to
prevent any possibility of operating vehicle
with a too loose or too tight track tension.
For normal use, locate bolt through 3
rd
hole from
strap end.
WARNING
Always torque the nut to 11 N•m(97lbf•in).
Replace strap if worn or torn.
A05F0CA
A
1
2
1. 1
st
hole
2. 3
rd
hole
A. 11 N•m(97lbf•
in)
NOTE: When towing a load, it is suggested to ad-
just stopper strap to its shortest length, soften
front springs of rear suspension and stiffen rear
springs. These adjustment will improve steering
ability.
Deep Snow Operation
When operating the vehicle in deep snow, it may
be necessary to change position of adjustment
cams, stopper strap and/or driver's riding position,
to change the angle at which the track rides on the
snow. Operator's familiarly with the various ad-
justments as well as snow conditions will dictate
the most efficient combination.
