Section 07 ELECTRICAL SYSTEM
Subsection 04 (ACCESSORIES)
ACCESSORIES
SERVICE TOOLS
Description Part Number Page
multimeter FLUKE 111......................................................... 529 035 868
................. 308, 312, 314–315
supply cable..........................................................................
529 035 997
.................................307, 313
supply harness......................................................................
529 035 869
.................................307, 313
VCK (Vehicle Communication Kit).........................................
529 035 981 .........................................308
GENERAL
WARNING
It is recommended to always disconnect the
battery when replacing any electric or elec-
tronic parts. Always disconnect battery ex-
actly in the specified order, BLACK (-) cable
first. Do not place tools on battery.
During assembly/installation, use the torque val-
ues and service products as in the exploded
views.
Clean threads before applying a threadlocker. Re-
fer to SELF-LOCKING FASTENERS and LOCTITE
APPLICATION at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must be strictly be adhered to. Locking de-
vices (e.g.: locking tabs, elastic stop nuts,
self-locking fasteners, cotter pins, etc.) must
be installed or replaced with new ones where
specified. If the efficiency of a locking device
is impaired, it must be renewed.
Lighting and Accessories System
Testing

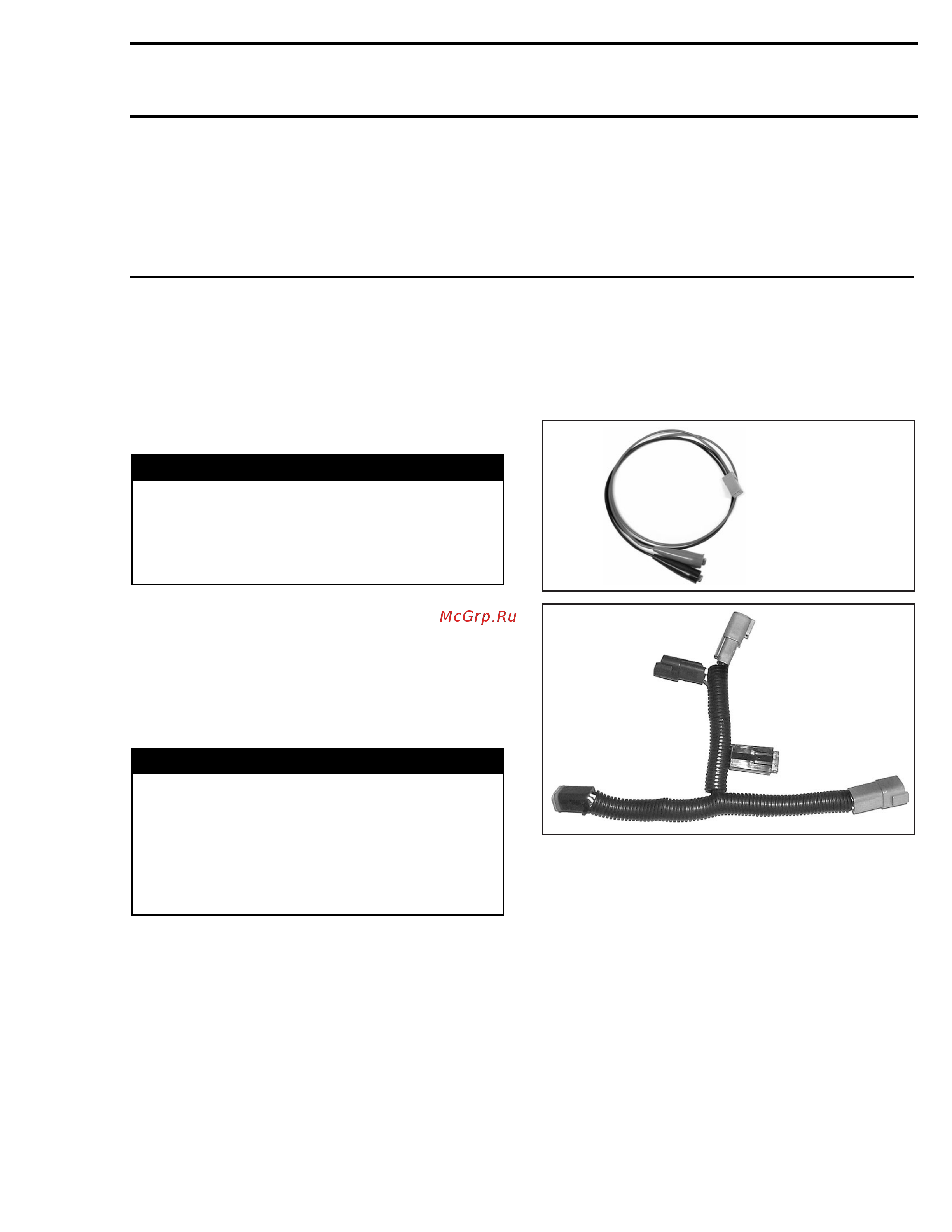

Connect the supply cable (P/N 529 035 997) to the
supply harness (P/N 529 035 869). Respect polar-
ity by connecting 12V to RED wire and ground to
BLACK wire.
529 035 997
529 035 869
Connect the supply harness (P/N 529 035 869) to
diagnostic connector, located on right side of the
vehicle. Now the headlight and accessories sys-
tems are supplied with 12 volts. Refer to appropri-
ate wiring diagram in WIRING DIAGRAM section
to troubleshoot lighting system.
CAUTION: Always use the proper supply har-
ness and cables. Ensure to respect polarity
when connecting cable clips to battery. Match
RED cables together.
Once lighting system testing is done, disconnect
supply cable from vehicle and then 12-Volt supply
from the supply cable.
mmr2005-085 307
