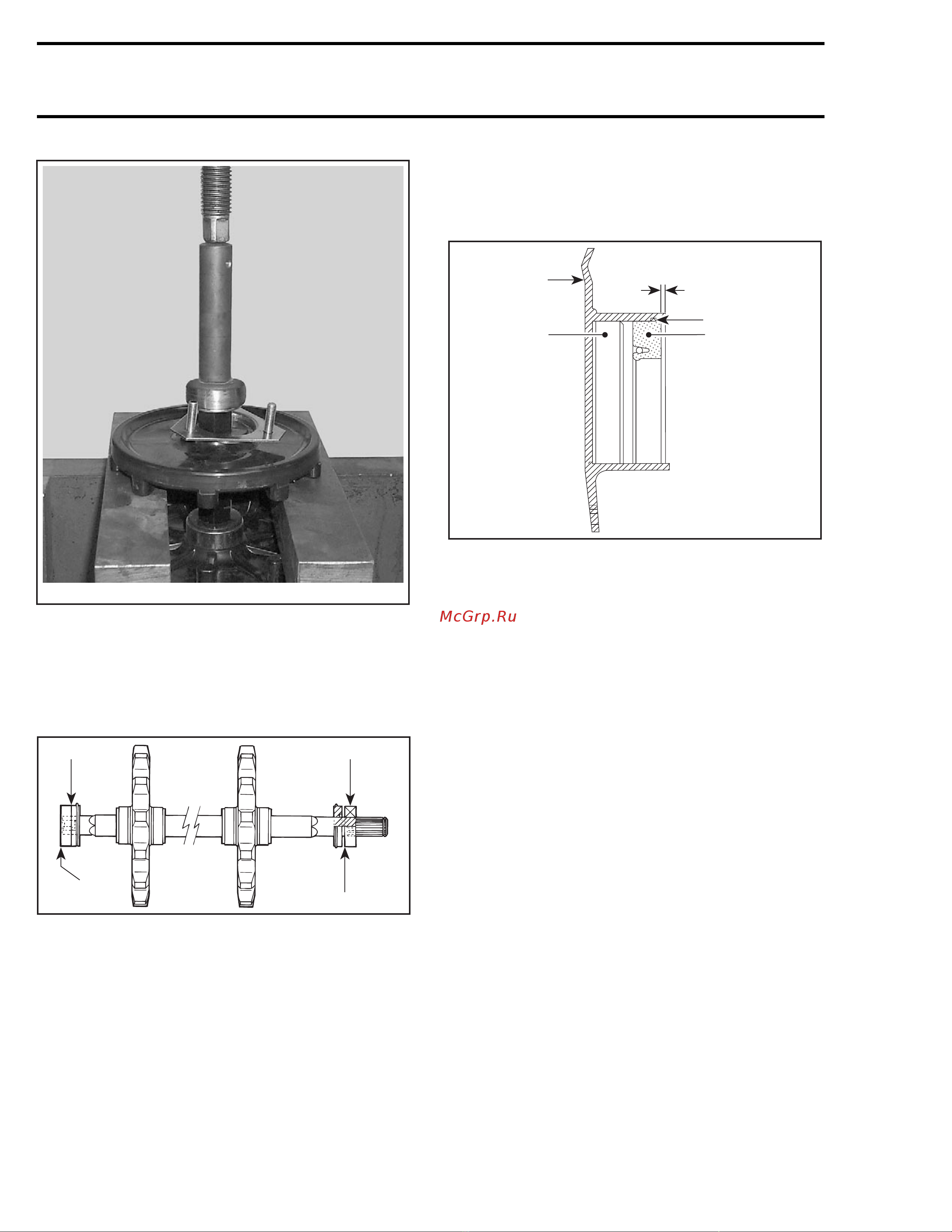

Section 09 REAR SUSPENSION
Subsection 04 (DRIVE AXLE)
A33D0OA
TYPICAL — ALL MODELS EXCEPT TUNDRA
The bearing on the splined side of axle must be
pushed until it is seated on shaft shoulder. The
end bearing housing bearing must be flush with
end of drive axle. Each bearing must have its
shield facing the sprocket.
A00F05A
1
3
2
1
1. Bearing shield on this side
2. Flush with drive axle
3. Seated on shaft shoulder
INSTALLATION
Position drive axle assembly into location. Install
end bearing housing. Install spacer (if applicable)
between bearing and lower chaincase sprocket.
Install chaincase and position seals (if applicable),
making sure that a gap of approximately 2 mm
(1/16 in) exists between end of bearing housing
and each seal.
2
A
1
A00F0GA
3
4
SIDE VIEW
1. Bearing
2. Seal
3. Housing
4. Seal lip
A. 2 mm (.080 in) approximately
3, Retainer Ring
Make sure that welded nuts are toward inside of
tunnel.
Lock drive axle sprocket with a circlip.
Reinstall the chaincase cover.
Refill with chaincase oil. Refer to TECHNICAL DA-
TA.
Install the suspension. Refer to TRACK and adjust
track tension and carry out track alignment proce-
dure.
LUBRICATION
10, Grease Fitting
Lubricate end housing bearing with suspension
synthetic grease (P/N 293 550 033).
ADJUSTMENT
Sprocket/Track Alignment
CAUTION: Do not tamper with sprocket/track
alignment if frame or suspension is damaged.
508 mmr2005-051
