Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
1
A33Z05A
8-CIRCUIT CONNECTOR HOUSING — CUT-AWAY
1. Tab

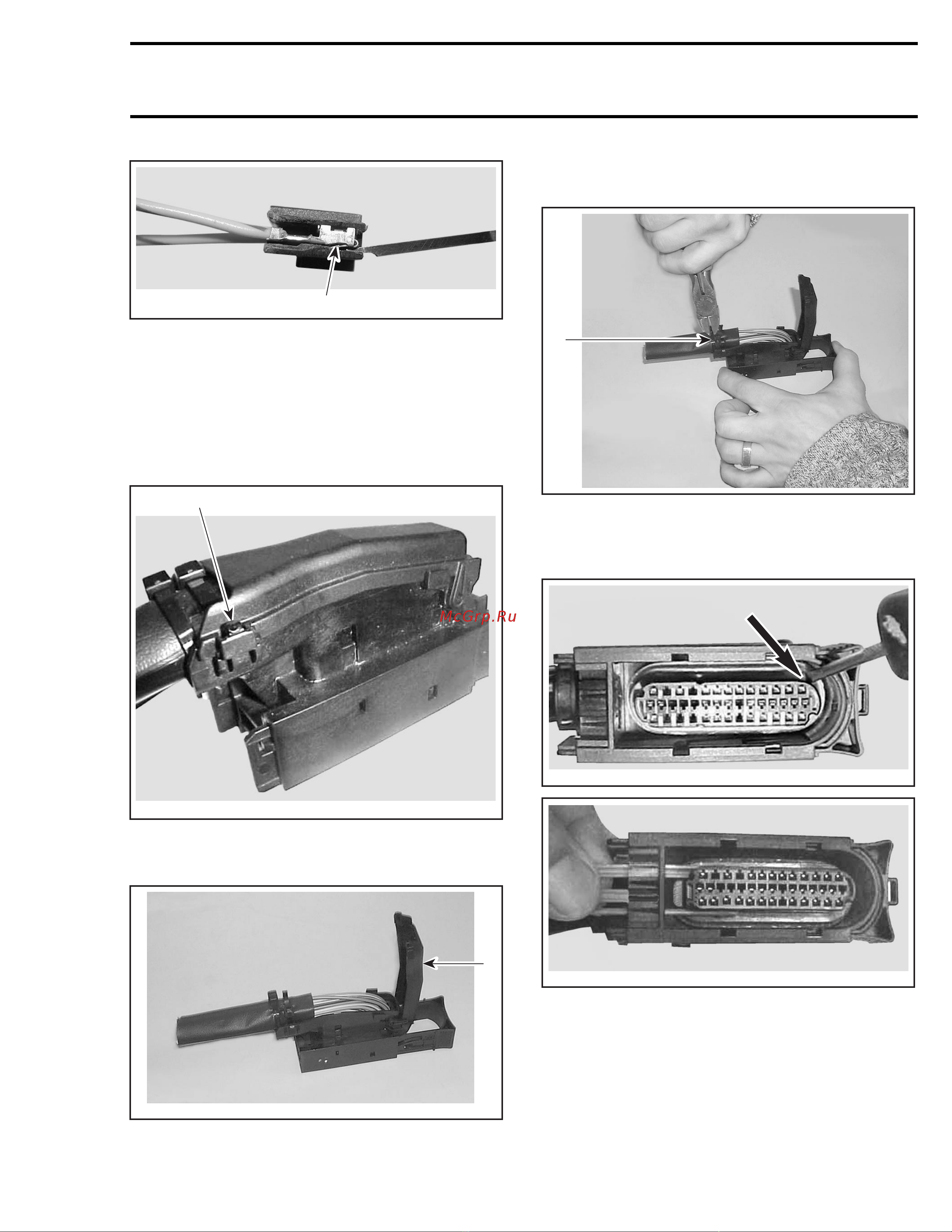

Connector housing A and B on ECM
Terminal Removal
Unlock the connector housing cover by pushing in
the tabs on top of the housing with a flat screw-
driver to be able to flip the top cover up.
1
F18Z0RA
1. Push in tab
Lift the cover by pushing it forward.
1
F18Z06A
1. Cover
Cut both locking ties that secure the harness to
the housing.
1
F18Z07A
1. Locking ties
Turn the housing over and remove the lock by
pushing and then pulling toward the wire harness.
F18Z0SA
F18Z0TA
Use a 0.76 mm (.030 in) oxyacetylene torch t
ip
cleanerorano. 68drillbitin
serted down into the
housing to release the lock
ing tab on the connec-
tor.
CAUTION: Using a probe larger than 0.76 mm
(.030 in) may damage the terminal.
mmr2005-102 493
