Section 04 ENGINE MANAGEMENT (SDI)
Subsection 02 (DIAGNOSTIC PROCEDURE)
PCODE EMS PILOT LAMP BEEPER DESCRIPTION
P0601 BLINK OFF TPS learns unlikely or checksum fault.
P1102 BLINK OFF
Throttle position sensor adaptation failure.
P1104 BLINK OFF
Throttle position sensor adaptation canceled.
P1655 BLINK OFF DESS
®
shorted to battery.
P1656 BLINK OFF DESS
®
line shorted to ground.
P0604 BLINK OFF
RAM fault.
P0605 BLINK OFF EEPROM fault.
P0602 BLINK OFF
MPEM not coded.
P0605 BLINK OFF EEPROM checksum fault.
P0605 BLINK OFF Coding ID checksum fault.
P0605 BLINK OFF Coding checksum fault.
P0605 BLINK OFF
Programming checksum fault.
P0562 OFF 2 s beep/min.
Battery voltage too low.
P0563 BLINK 2 s beep/min. Battery voltage too high.

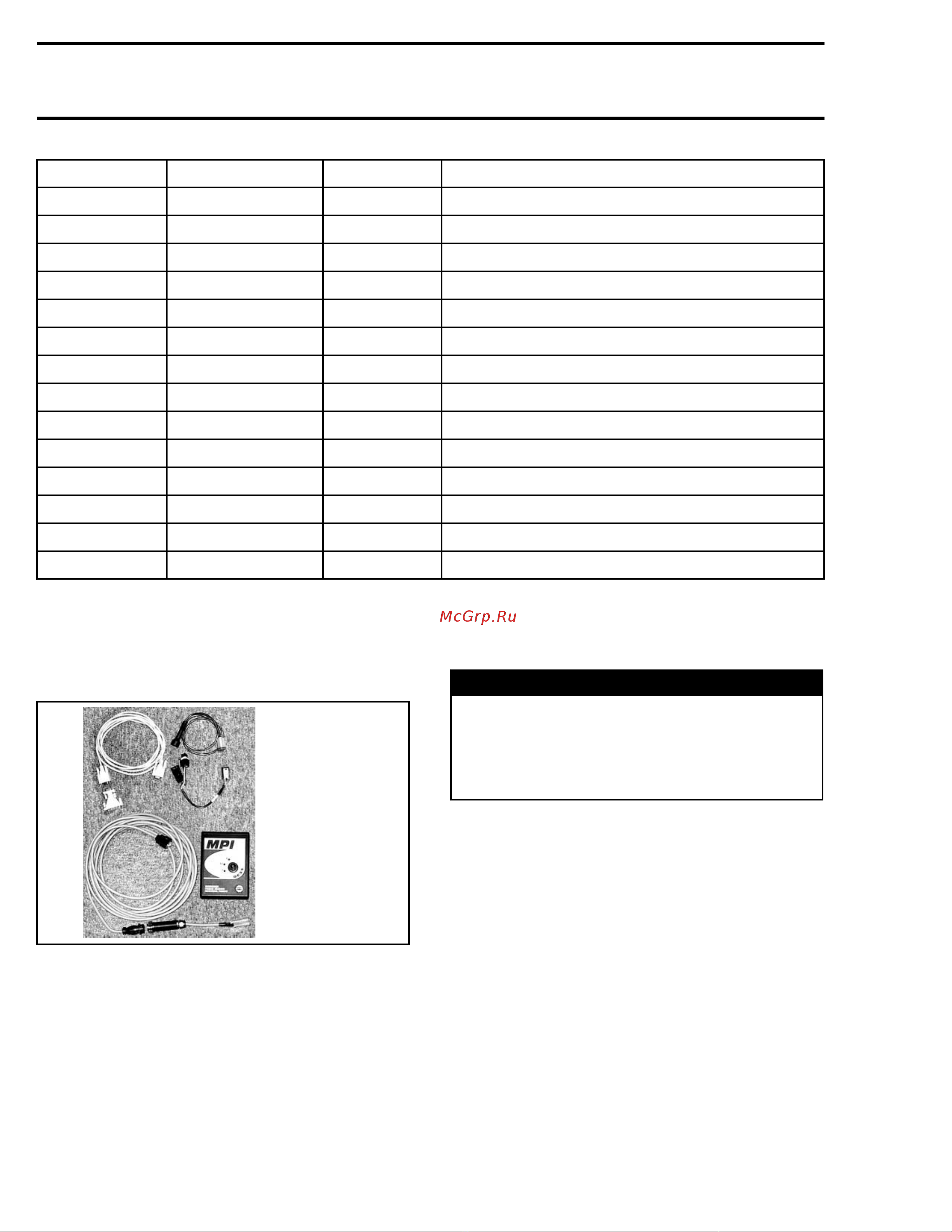

VCK (Vehicle Communication Kit)
The VCK (Vehicle Communication Kit) (P/N 529
035 981) is the primary tool to diagnose engine
management and fuel injection related problems.
529 035 981
NOTE: The MPEM programmer does not work on
SDI models.
Ensure to use the latest version of B.U.D.S. avail-
able on BOSSWeb.
B.U.D.S. (BRP Utility and Diagnostic Software) is
designed to allow actuators, sensors and electron-
ic equipments inspection, diagnostic options and
reset such as the closed throttle.
For more information pertaining to the use of the
software B.U.D.S., use its help which contains de-
tailed information on its functions.
WARNING
If the computer you are using is connected to
the power outlet, there is a potential risk of
electrocution when working in contact with
water. Be careful not to touch water while
workingwiththeVCK.
VCK Supply
The VCK (MPI box) can use the vehicle power for
its supply. Four AA batteries or an AC/DC power
supply can also be used. Make sure to respect
MPI specification if a power supply is used.
Connecting VCK to Vehicle
Remove the 6 pin connector from the protective
cap on the right side of the vehicle.
132 mmr2004-125
