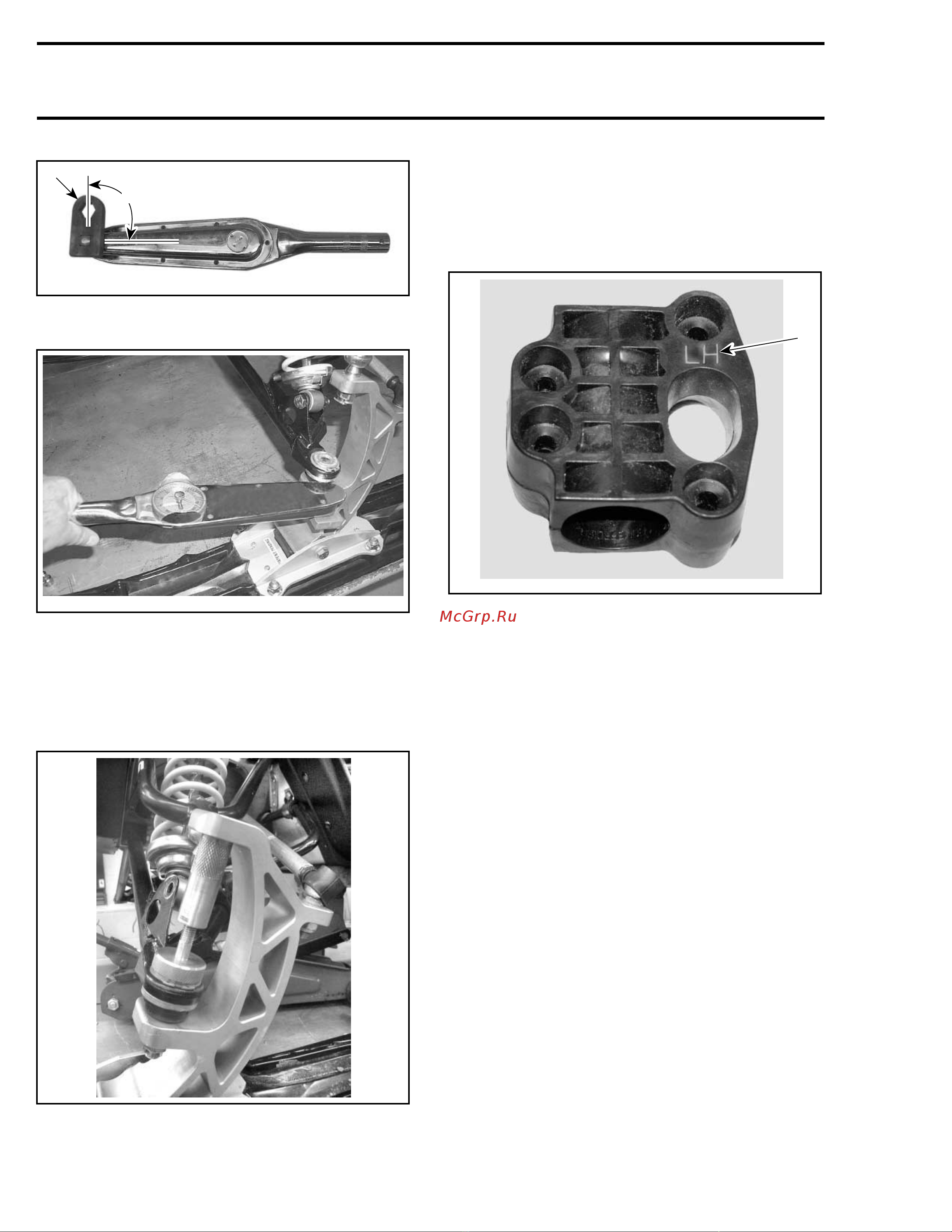

Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
1
A33F22A
A
1. Tool perpendicular (90°) to torque wrench
A. 90°
A33F2KA
Use ball joint lock tool (P/N 529 035 945) to restrain
ball joint during nut tightening.
NOTE: The upper arm ball joint has to be removed
in order to use this tool. Also remove the small
screw from top of ball joint to allow proper seating
of tool.
A32F3XA
TYPICAL
Anti-Sway Bar
Summit
Notice that LH and RH sliding blocks are different.
Look for their molded identification with LH or RH
letters.
1
A33F2DA
1. Molded identification for proper side installation
To install sliding blocks:
– Temporarily rotate the rear block by 180°.
– Insert on anti-sway bar end and push beyond
the lower arm.
– Rotate block back by 180° to its normal position.
– Install the other block half.
– Install screws and nuts.
– Ensure blocks slide easily when compressing
and releasing suspension.
302 mmr2005-142
