Section02ENGINE
Subsection 08 (BOTTOM END)

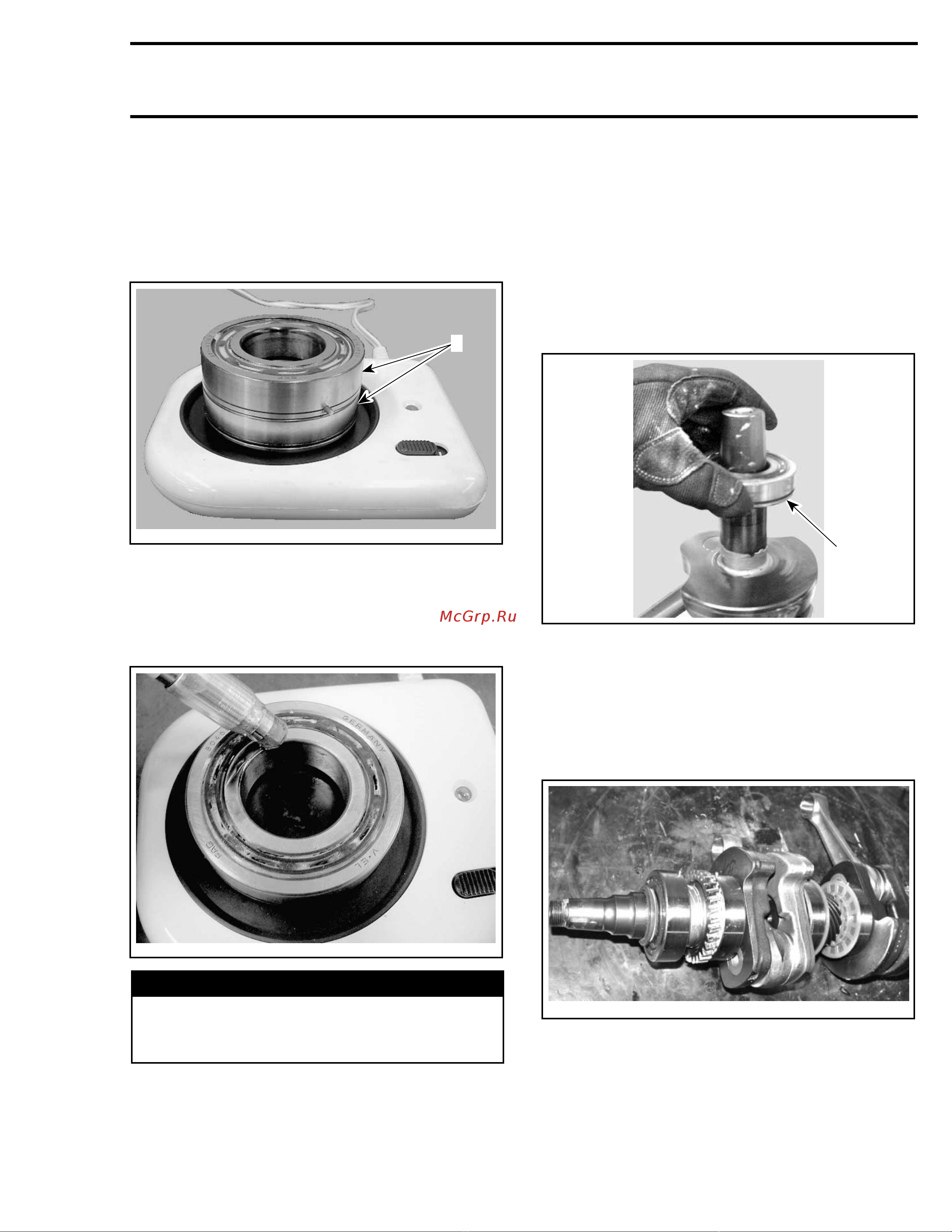

NOTE: Normally it takes approximately 10 min-
utes to heat up a bearing so in the event of replac-
ing bearing, it’s recommended to start the bearing
heating process prior to removal operation. Two
bearings can be heated at the same time on one
bearing heater.
A32CB8A
1
1. Bearings
Probe the inner race of the bearing with the tem-
perature indicator stick (P/N 529 035 970). Stick
will liquefy when the bearing reach the proper
temperature.
A32CB9A
WARNING
Do not touch heated bearing with bare hands.
Always wear heat resisting gloves before
handling the heated bearing(s).
Crankshaft Bearing Installation
CAUTION: Never reinstall a bearing that has
been removed.
NOTE: To install bearings no. 6 and gears no. 7 on-
to the crankshaft, refer to a specialized shop. Spe-
cial tools and accurate procedures are required.
Slide bearings no. 3 and no. 4 with the integrated
seal facing crankshaft. Push bearing to end posi-
tion.
A32CAVB
1
TYPICAL
1. Integrated seal this side
NOTE: Heated bearings will slide onto the crank-
shaft. If required, push with a steel tube on the
inner ring of the bearing. Pay special attention
to correct positioning of the locating pins.
Install seals on crankshaft.
A35C1IA
mmr2005-118 71
