Section02ENGINE
Subsection 06 (E-RAVE SYSTEM)
GENERAL
The E-RAVE system can be serviced with engine
on vehicle.
During assembly/installation, use torque values
and service products as shown in exploded view.
Clean threads before applying a threadlocker. Re-
fer to SELF-LOCKING FASTENERS and LOCTITE
APPLICATION at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must strictly be adhered to. Locking de-
vices (e.g.: locking tabs, elastic stop nuts,
self-locking fasteners, cotter pin, etc.) must
be installed or replaced with new ones where
specified. If the efficiency of a locking device
is impaired, it must be renewed.
E-RAVE SYSTEM DYNAMIC TEST
Lift rear of vehicle off the ground and support it
with a stand.
WARNING
To prevent serious injury to individuals near
the snowmobile:
– NEVER stand behind or near a moving track
– always use a wide-base snowmobile stand
with a rear deflector panel
– when the track is raised off the ground, on-
ly run it at the lowest possible speed.
Centrifugal force could cause debris, dam-
aged or loose studs, pieces of torn track, or
an entire severed track to be violently thrown
backwards out of the tunnel with tremendous
force, possibly resulting in the loss of a leg
or other serious injury.

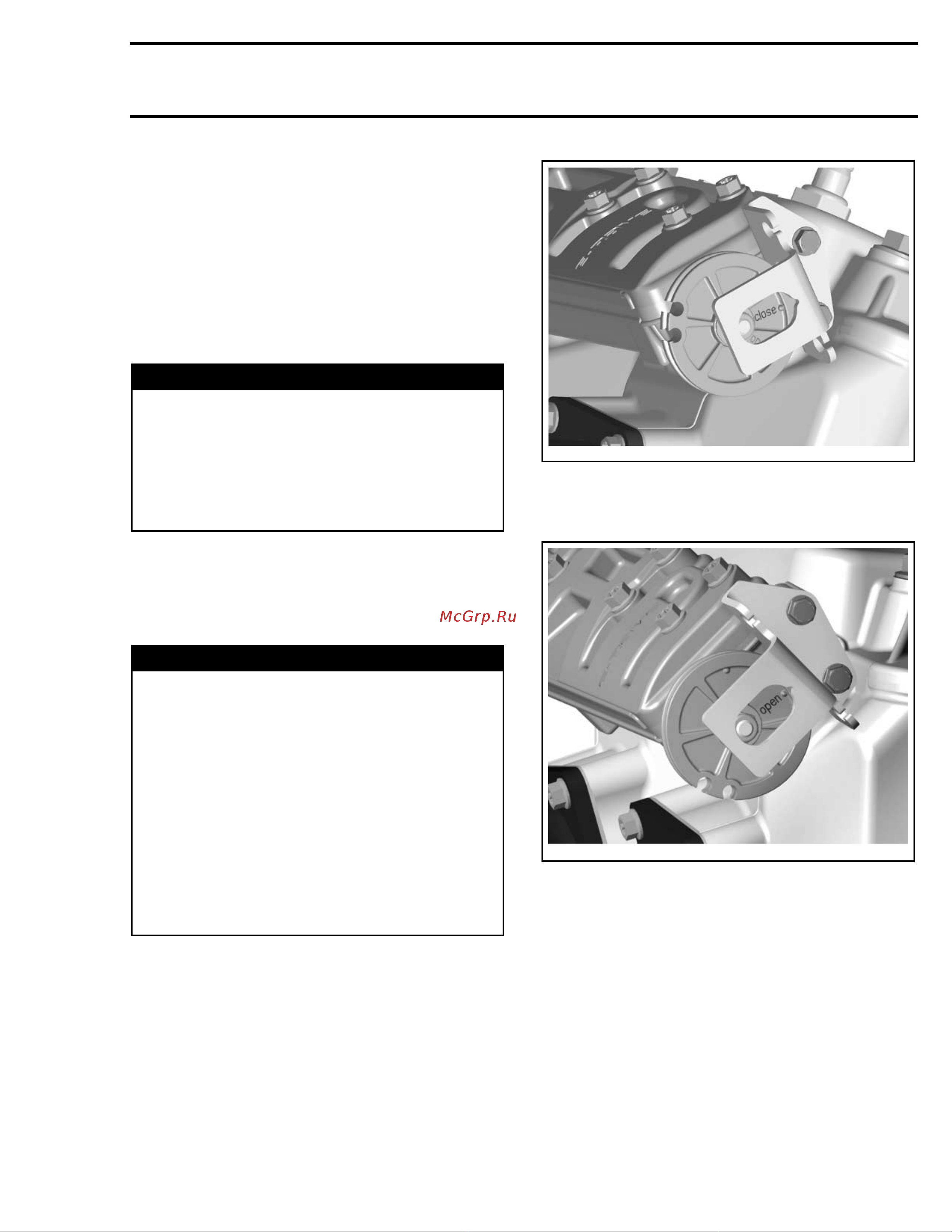

Start engine and while at idle speed, check posi-
tion of the E-RAVE shaft pulley. It should be in the
Close position.
A35C0GA
Bring the engine above 6500 RPM while in wide
open throttle and check position of the E-RAVE
shaft pulley. It should be in the Open position.
A35C0HA
If test fails, check cables and pulleys condition
and adjustment. If correct, disconnect cable from
E-RAVE actuator no. 3 and check for smooth me-
chanical movement of the E-RAVE system by turn-
ing the pulley. If it works, check the E-RAVE actu-
ator. Refer to ENGINE MANAGEMENT.
E-RAVE CABLES
Removal
Completely unscrew adjuster nuts from E-RAVE
actuator bracket.
Detach cables from E-RAVE actuator pulley.
mmr2005-148 43
