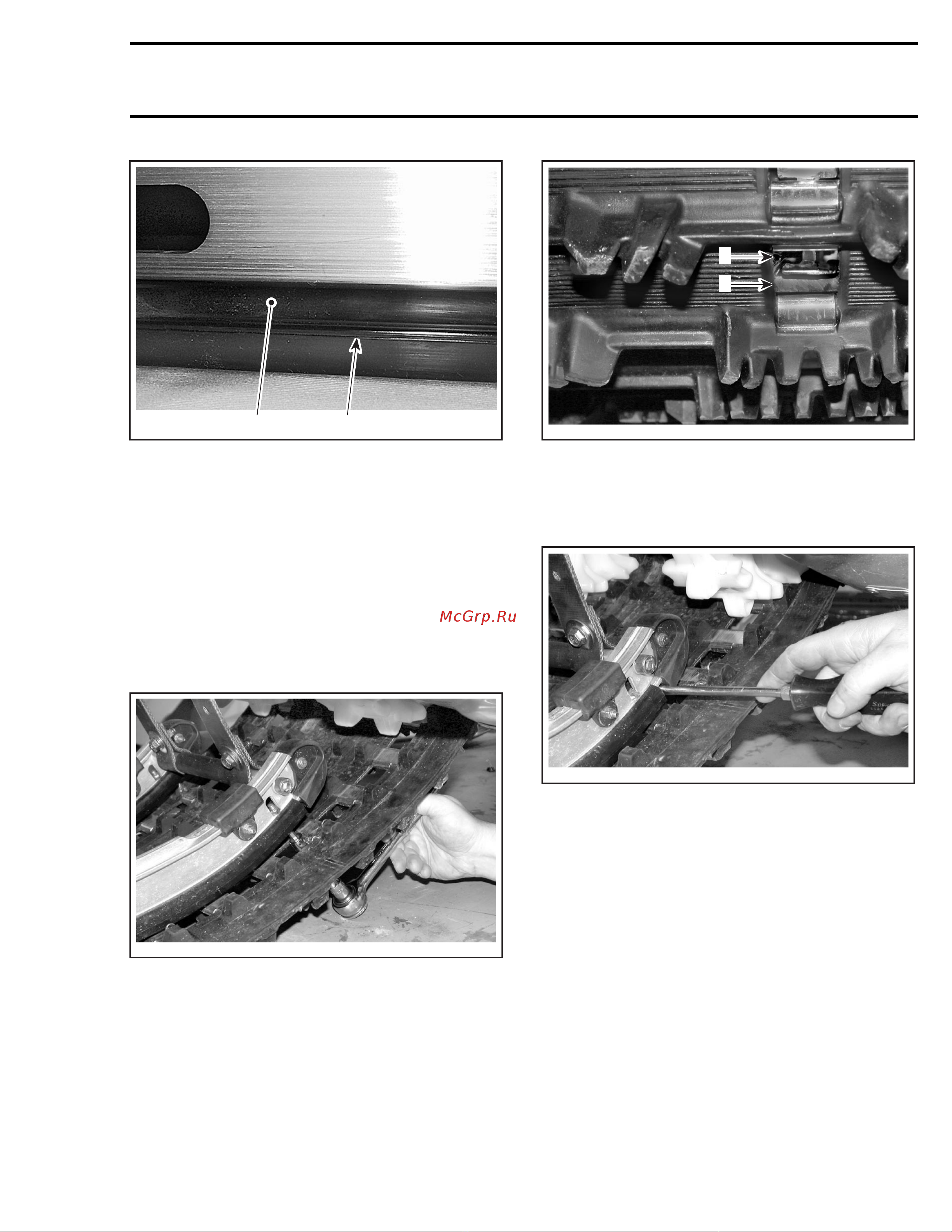

Section 09 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)
1
A03F3SA
2
TYPICAL
1. Slider shoe
2. Molding line (wear limit indicator)
Replace slider shoes when wear limit is reached.
CAUTION: Slider shoes must always be re-
placed in pairs.
SLIDER SHOE REMOVAL
Lift rear of vehicle and support it off the ground.
Completely loosen track tension.
Remove front runners nut and screw.
A33F5RA
TYPICAL — REMOVE NUT AND SCREW
Align track window with slider shoe.
A33F5SA
2
1
TYPICAL
1. Track window
2. Slider shoe
Using a pry bar or screw driver, push slider shoe
until it comes in contact with track.
A33F5TA
TYPICAL — PUSH ON SLIDER SHOE
Using locking pliers, pull slider shoe thru track win-
dow to remove.
NOTE: If necessary, lubricate track window to fa-
cilitate slider shoe removal.
mmr2005-094 389
