Section 03 ENGINES (2-STROKE)
Subsection 03 (593 AND 593 HO SDI ENGINES)

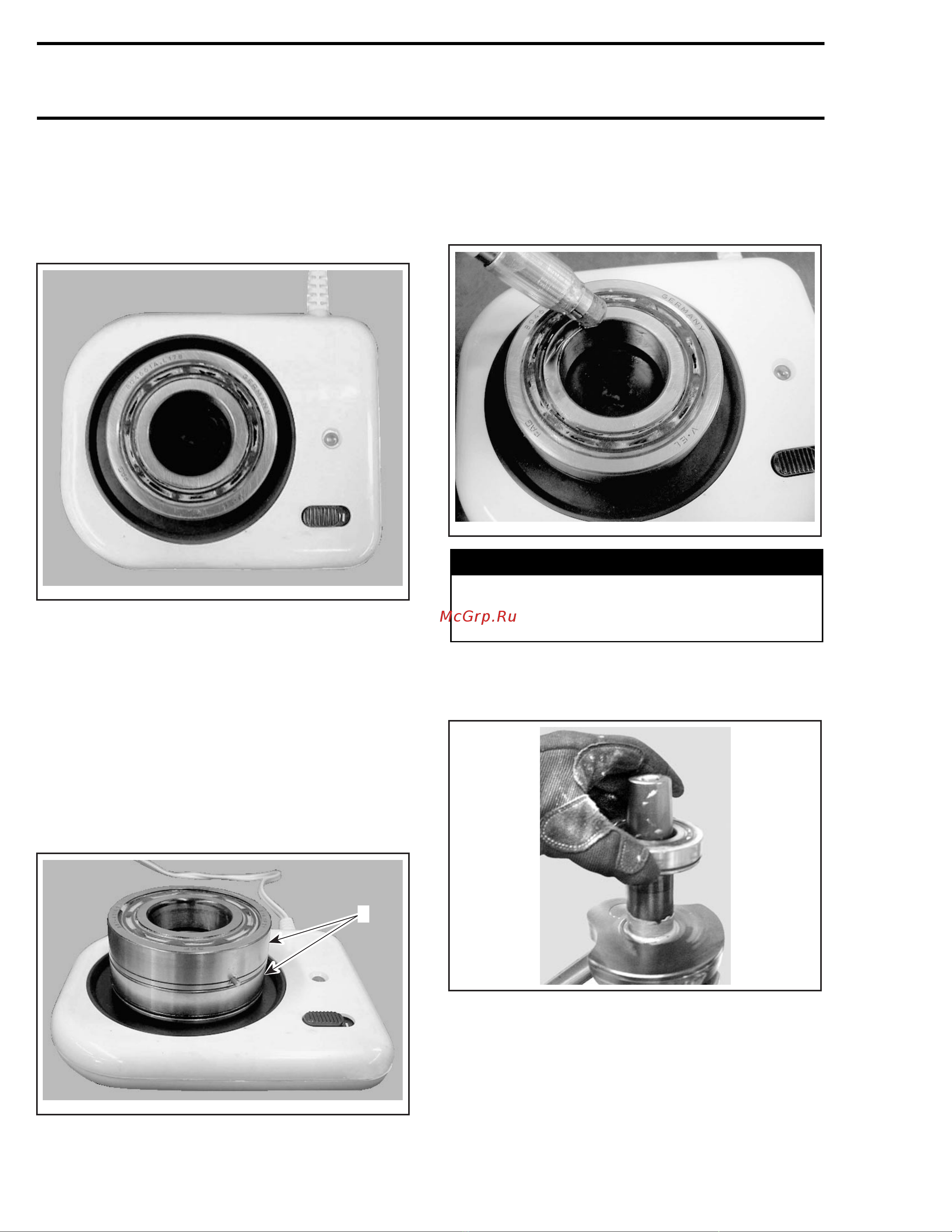

Heat up the bearing(s) using bearing heater
(P/N 529 035 969). This will expand bearings
and ease installation. If required, put a suitable
plate or shim to avoid the direct contact between
integrated seal and the heating surface.
A32CB7A
CAUTION: Bearing should not be heated to
more than 80°C(176°F). Do not heat bearing
with direct flame or heat gun or heated oil.
Inappropriate heating procedure(s) may cause
inner seal failure.
Turn bearing(s) several times during heating
process for heating it/them properly.
NOTE: Normally it takes approximately 10 min-
utes to heat up a bearing. So, in the event of re-
placing a bearing, it is recommended to start heat-
ing it prior to removal. Two bearings can be heat-
edatthesametimeononebearingheater.
A32CB8A
1
1. Bearings
Probe the inner race of the bearing with the tem-
perature indicator stick (P/N 529 035 970). Stick
will liquefy when the bearing reach the proper
temperature.
A32CB9A
WARNING
Do not touch heated bearing with bare hands.
Wear heat resisting gloves before handling
the heated bearing(s).
Slide in the inner PTO bearing with the integrated
seal facing crankshaft. Push bearing to end posi-
tion.
A32CAVA
NOTE: Heated bearings will slide onto the crank-
shaft. If required, push with a steel tube on the
inner ring of the bearing. Pay special attention
to correct positioning of the drive pins and/or
retaining discs.
Install retaining discs.
104 mmr2005-012
