Section02ENGINE
Subsection 09 (ENGINE MEASUREMENT)

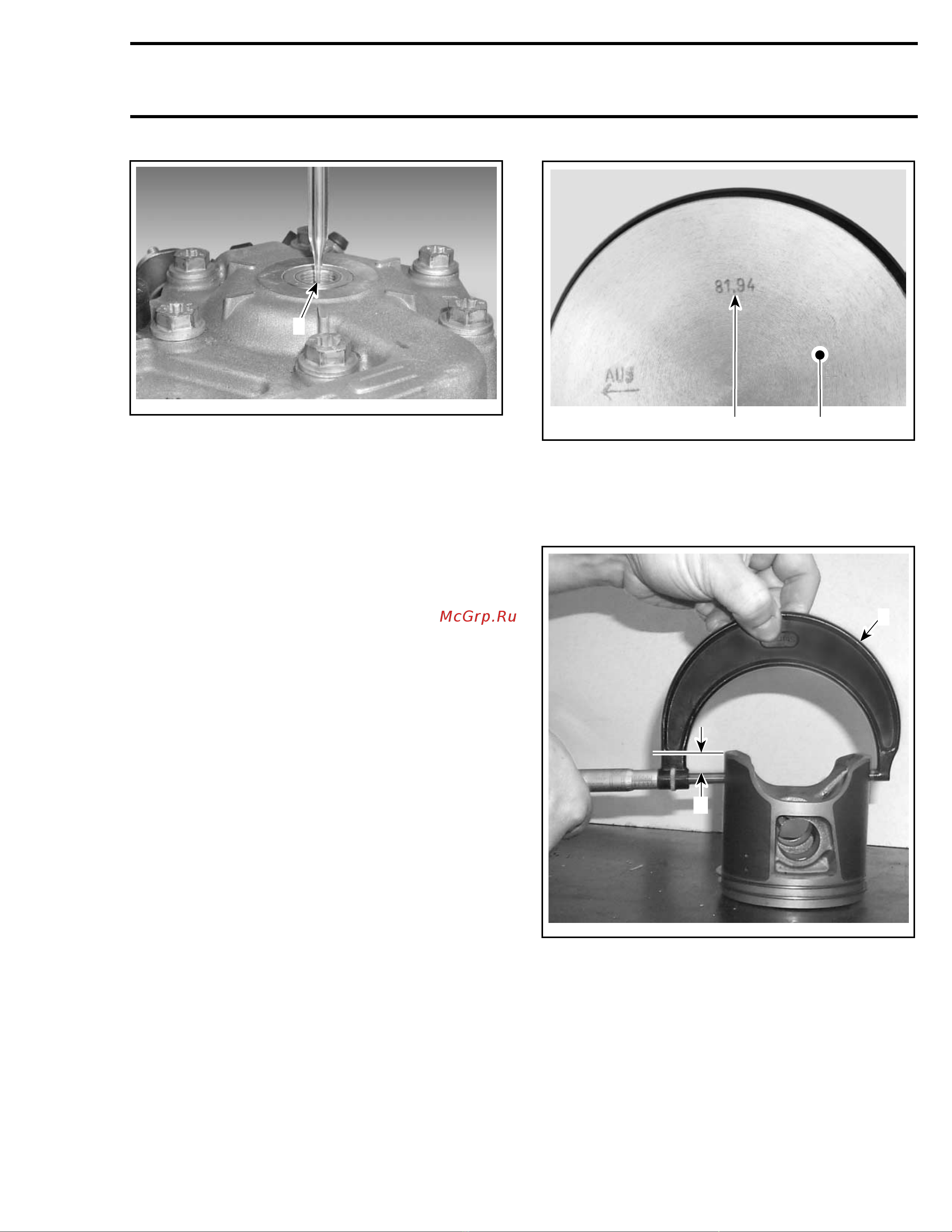

A35C2YA
1
1. Top of spark plug hole
NOTE: The liquid level in cylinder must not drop
for a few seconds after filling. If so, there is a
leak between piston and cylinder. The recorded
volumewouldbefalse.
Let burette stand upward for about 10 minutes,
until liquid level is stabilized.
Read the burette scale to obtain the quantity of
liquid injected in the combustion chamber.
NOTE: When the combustion chamber is filled to
top of spark plug hole, it includes an amount of
2.25 cc corresponding to the spark plug well.
Repeat the procedure for the other cylinder.
Install a thicker or thinner cylinder/crankcase
gasket (refer to Parts Catalogs)inordertoob-
tain the specified combustion chamber volume
or the nearest.
USED PISTON MEASUREMENT
Note the measurement on the piston dome.
F00D0EA
2 1
1. Piston dome
2. Piston measurement
Using a micrometer, measure piston skirt at
29 mm (1.142 in) perpendicularly (90°)topiston
pin.
A35C2ZA
1
A
1. Measuring perpendicularly (90°) to piston pin axis
A. 29 mm (1.142 in)
The measured dimension must not be less than
0.15 mm (.006 in) of the one scribed on piston
dome. Otherwise, replace piston.
mmr2005-119 77
