Section 08 DRIVE SYSTEM
Subsection 03 (DRIVEN PULLEY)
REMOVAL
Remove guard and drive belt from vehicle.
Remove pulley retaining screw no. 14 and shoul-
dered washer no. 12 then pull the driven pulley
from the countershaft.
Take care not to lose spacer no. 2.
Countershaft
Should countershaft no. 1 removal be required, re-
fer to BRAKE then look for COUNTERSHAFT and
BRAKE DISC REMOVAL.
DISASSEMBLY

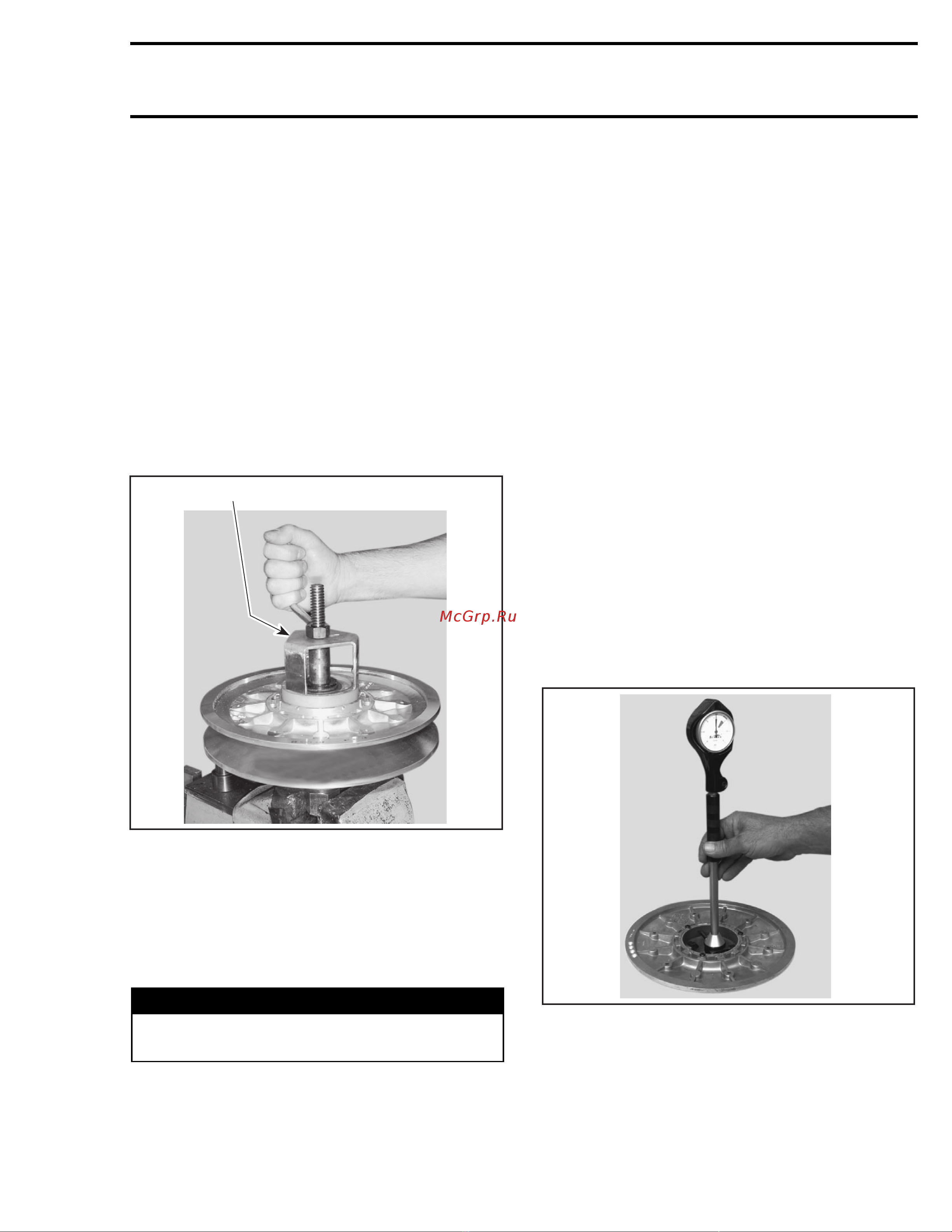

Use clutch spring compressor (P/N 529 035 524).
529 035 524
A15D36B
TYPICAL
Remove circlip no. 3 and washer no. 4 to disas-
semble the outer cam and the 2 pulley halves.
NOTE: Before removing cam and spring, note po-
sition of spring in fixed half (position A,B or C) and
thepositioninthecam(1to6). Thesepositions
will help during assembly.
WARNING
Driven pulley cam is spring loaded, use above
mentioned tool.
CLEANING
Large Bushing and Small Bushing
During break-in period (about 10 hours of use),
teflon from bushing no. 8 and no. 9 moves to cam
or shaft surface. A teflon over teflon running con-
dition occurs, leading to low friction. So it is nor-
mal to see gray teflon deposit on cam or shaft. Do
not remove that deposit, it is not dust.
When a dust deposit has to be removed from the
cam or the shaft, use dry cloth to avoid removing
transferred teflon.
Pulley Half Cleaning
Use pulley flange cleaner (P/N 413 711 809) to
clean pulley halves.
INSPECTION
Bushings
Check the bushings no. 8 and no. 9 for cracks,
scratch and for free movement when assembled
to fixed half.
Using a dial bore gauge measure bushing diame-
ter. Measuringpointmustbeatleast5mm(1/4in)
from bushing edge.
A03D1OA
Replace bushing(s) if worn more than specified.
mmr2005-088 341
