Section 03 ENGINES (2-STROKE)
Subsection 10 (FUEL SYSTEM)

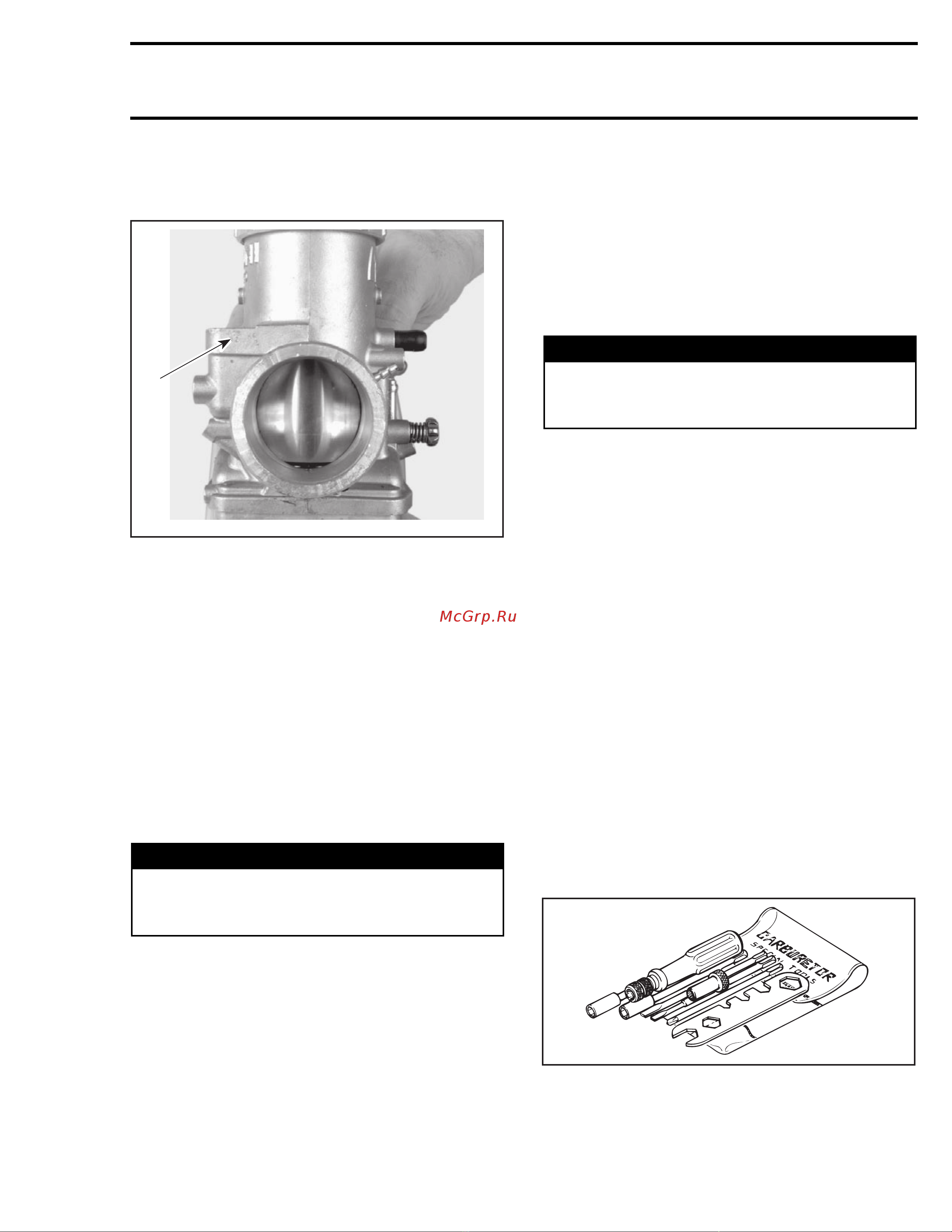

IDENTIFICATION
All carburetors are identified on their body.
A01C59A
1
1. Identification: 34-482
REMOVAL
Tundra and Skandic LT/WT/SWT
Remove air silencer.
All Models
Disconnect fuel inlet line.
Disconnect primer line from carburetor on some
models.
Disconnect choke cable on some models.
Unscrew carburetor cover no. 1 then pull out
throttle slide no. 5 from carburetor.
WARNING
Exercise care when handling throttle slide.
Scratches incurred may cause throttle slide
to stick open in operation.
Disconnect throttle cable from throttle slide.
Untighten rubber flange clamps then remove car-
buretor from engine.
CLEANING AND INSPECTION
The entire carburetor should be cleaned with a
general solvent and dried with compressed air be-
fore disassembly.
CAUTION: Heavy duty carburetor cleaner may
be harmful to the float material and to the rub-
ber parts, O-rings, etc. Therefore, it is recom-
mended to remove those parts prior to clean-
ing.
Carburetor body and jets should be cleaned in
a carburetor cleaner following manufacturer's
instructions. Replace any jets having gum or
varnish on their surfaces.
WARNING
Solvent with a low flash point such as gaso-
line, naphtha, benzol, etc., should not be used
as they are flammable and explosive.
Check inlet needle tip condition. If worn, the inlet
needle and seat must be replaced as a matched
set.
NOTE: Install needle valve for snowmobile carbu-
retor only. It is designed to operate with a fuel
pump system.
Check throttle slide no. 5 for wear. Replace as
necessary.
Check idle speed screw no. 7 for straightness.
Replace as necessary.
Check for fuel soaked into float no. 12; replace as
necessary.
Check float no. 12 for cracks or other damages
affecting free movement ; replace as necessary.
Inspect throttle cable and housing for any dam-
ages. Replace as necessary.
DISASSEMBLY AND ASSEMBLY
NOTE: To ease the carburetor disassembly and
assembly procedures it is recommended to use
carburetor tool kit (P/N 404 112 000).
A00B2FA
mmr2005-019 165
