Section 03 ENGINES
Subsection 06 (BOTTOM END)
A32CAUA

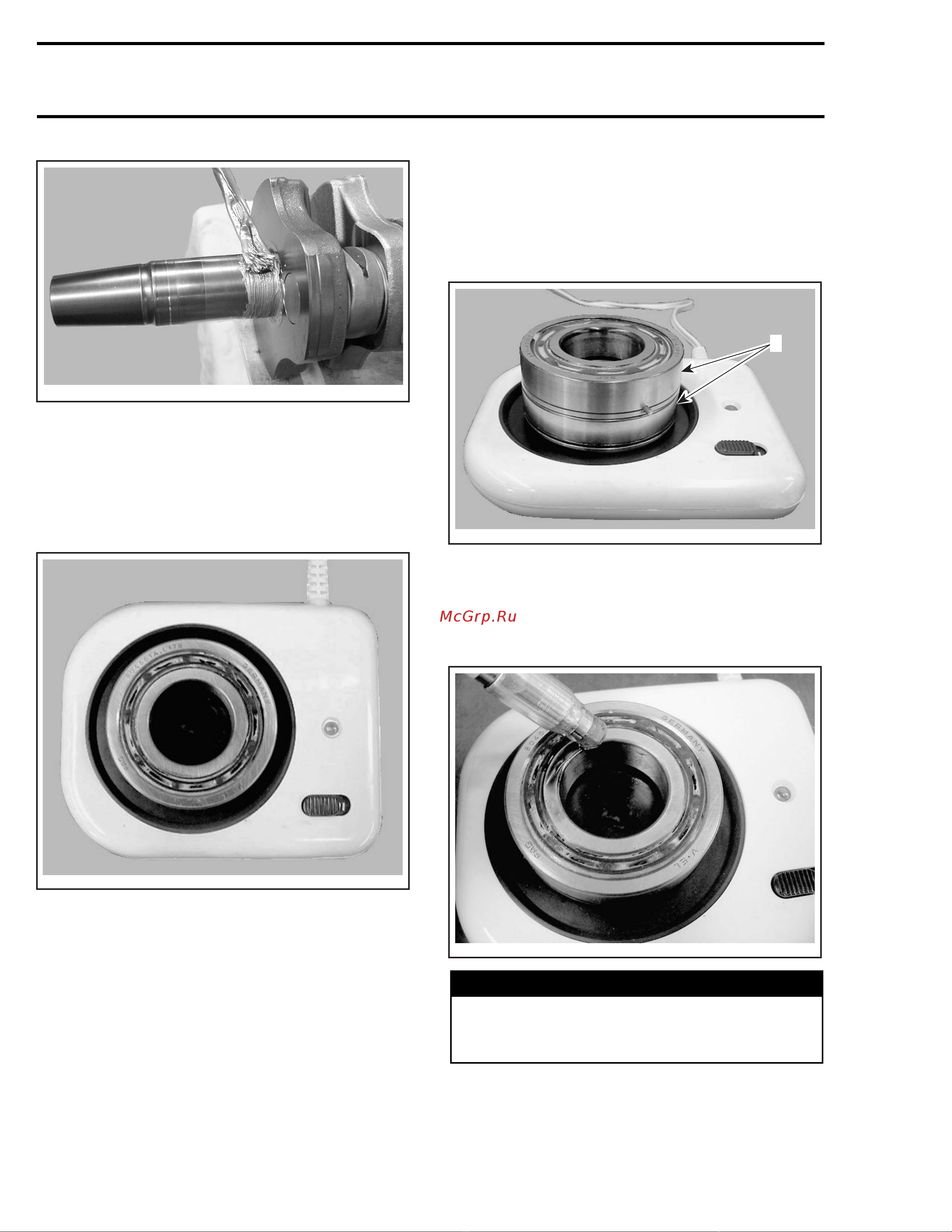

Crankshaft Bearing Preparation
Heat up the bearing(s) using bearing heater
(P/N 529 035 969). This will expand bearings
and ease installation. If required, put a suitable
plate or shim to avoid the direct contact between
integrated seal with the heating surface.
A32CB7A
CAUTION: Bearing(s) should not be heated to
more than 80°C(176°F). Do not heat bearing(s)
on direct flame, or with a heat gun or in an
oil bath. Inappropriate bearing(s) heating may
result in inner seals or cage failure.
Turnbearingseveraltimestoobtainanevenheat-
ing process.
NOTE: Normally it takes approximately 10 min-
utes to heat up a bearing so in the event of replac-
ing bearing, it’s recommended to start the bearing
heating process prior to removal operation. Two
bearings can be heated at the same time on one
bearing heater.
A32CB8A
1
1. Bearings
Probe the inner race of the bearing with the tem-
perature indicator stick (P/N 529 035 970). Stick
will liquefy when the bearing reach the proper
temperature
A32CB9A
WARNING
Do not touch heated bearing with bare hands.
Always wear heat resisting gloves before
handling the heated bearing(s).
124 mmr2005-073
