INTRODUCTION
Description
3
5
A00A6HB
2
4687
1

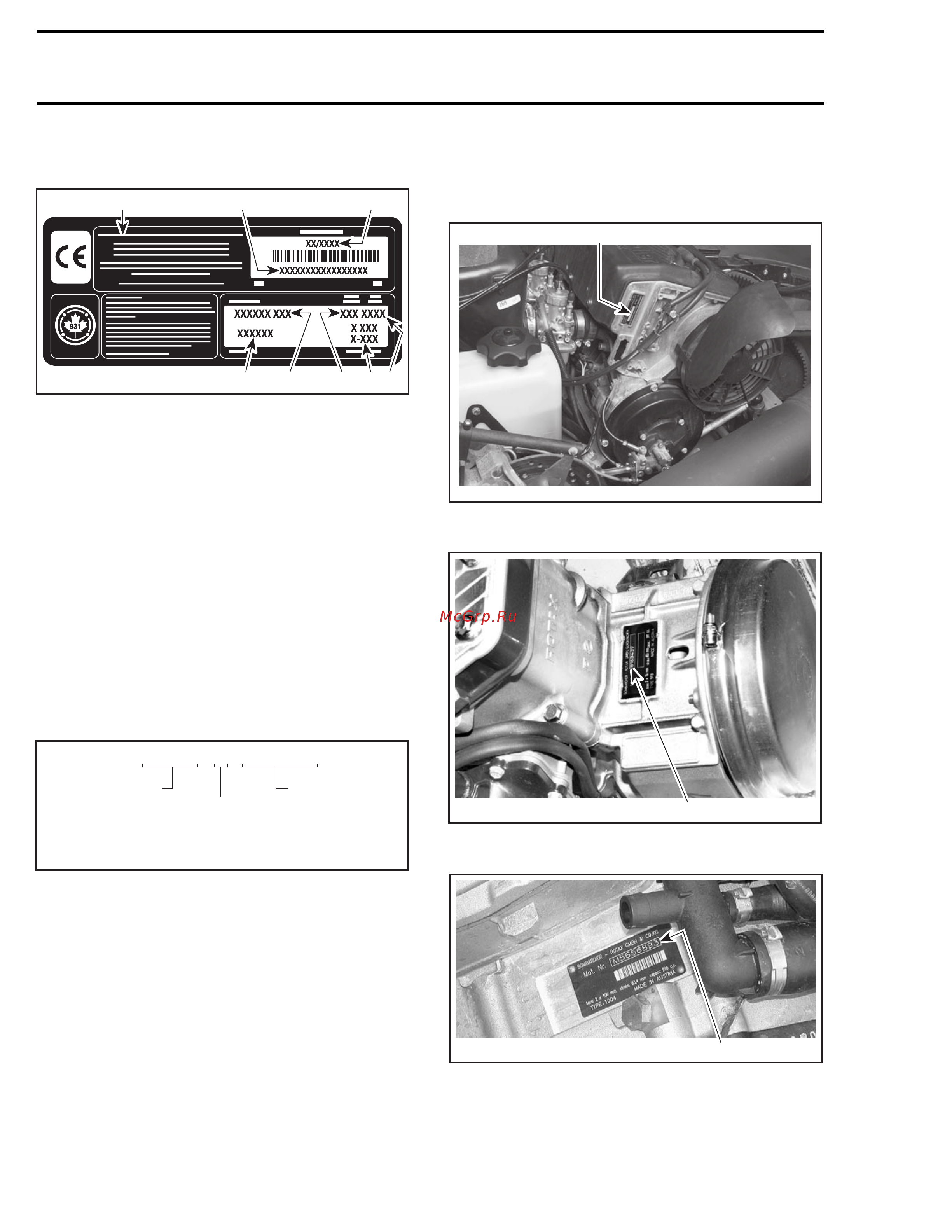

VEHICLE DESCRIPTION DECAL
1. Manufacturer name and address
2. Manufacturing date
3. Vehicle identification number (VIN)
4. Model name
5. Option package
6. Engine type
7. Model year
8. Color codes
VEHICLE IDENTIFICATION
NUMBER (VIN)
Location
VIN is scribed on vehicle description decal. See
above. It is also embossed on tunnel near vehicle
description decal.
Description
A00A8HA
2 B P S B X 5 A 9 Y 1 0 0 0 0 0 1
Model number
Serial number
Model year: y = 2000
1 = 2001
2 = 2002
etc.
ENGINE SERIAL NUMBER
Location
A03A0BA
1
TYPICAL — 2–STROKE FAN-COOLED ENGINES
1. Engine serial number
1
A32C01B
TYPICAL — 2–STROKE LIQUID-COOLED ENGINES
1. Engine serial number
A32A1XA
1
4-TEC ENGINE — RH OF ENGINE
1. Engine serial number
XVI
mmr2005-001
