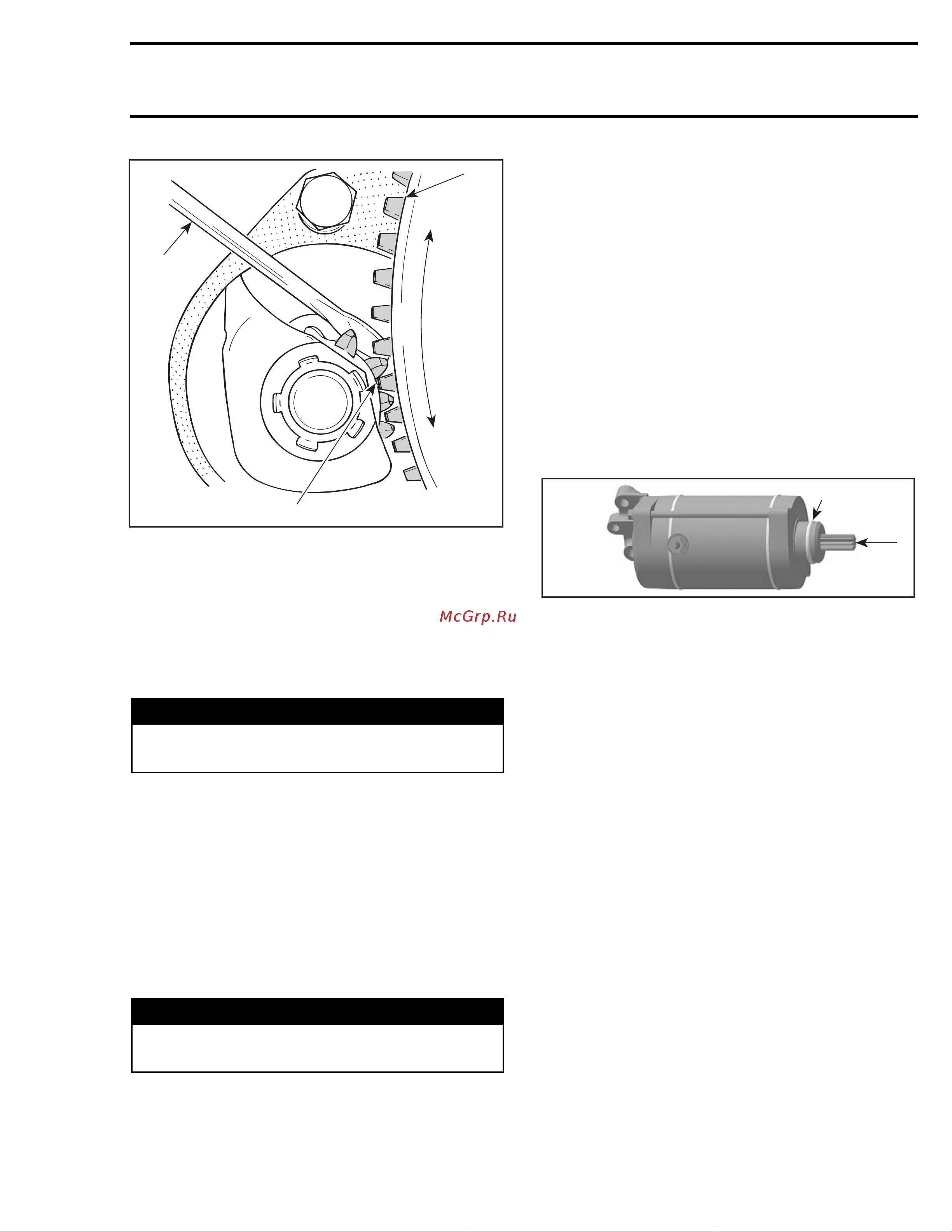

Section 08 ELECTRICAL
Subsection 05 (ELECTRIC STARTER)
A09E0PA
1
2
3
A
1. Screwdriver pulling starter pinion
2. Ring gear
3. No excessive backlash
A. 0.5 to 1.5 mm (.020 to .060 in)
Connect the RED battery cable and the RED
wire to the large terminal of the relay. Connect
RED/GREEN wire to small terminal of relay.
Connect BLACK cable to battery.
WARNING
Always disconnect ground cable first and
connect last.
593 and 593 HO SDI Engines
– Usenewteflonwashersonthe3boltsretaining
starter to engine.
– Torque the bolts to 28 ± 1 N•m(21±1lbf•ft).
– Make sure that starter and engine mating sur-
faces are free of grime. Serious trouble may
arise if starter is not properly aligned.
– Connect the RED battery cable and the RED
wire to the large terminal of the starter.
– Torque large terminal nut to 7 N•m(62lbf•in).
WARNING
Always disconnect ground cable first and
connect last.
– Connect ground cable to the starter with star
washer in between.
– Torque ground cable connecting bolt to 11 N•m
(97 lbf•in).
V-1000 Engine
The installation is the reverse of removal proce-
dure. Pay attention to the following details.
NOTE: During assembly replace the O-ring
no. 1of the starter. Grease the drive gear and the
O-ring before assembly using Super Lube grease
(P/N 293 550 030). This will simplify assembly
and prevent displacement of the O-ring during
installation.
If it is not possible to move the starter into the
guide, this is due to the position of the drive
gearno. 2. Pull the starter out once more, slightly
rotate the drive gear and try again.
2
R1004motr127A
1
1. Drive gear
2. O-ring
Torque starter screws to 9 N•m(80lbf•in).
mmr2005-046 461
