Ski-Doo Ski Doo MX Z 2005 [210/1429] Choke cable
![Ski-Doo Ski Doo MX Z 2005 [210/1429] Choke cable](/views2/1012747/page210/bgd2.png)
Section04FUELSYSTEM
Subsection 02 (CARBURETORS, THROTTLE AND CHOKE CABLES)
MODELS
THROTTLE
SLIDE HEIGHT
(drill bit size)
± 0.1 mm (± .004 in)
593 engine 1.5 (.059)
593 HO engine except
in Summit models
1.6 (0.063)
793 HO engines except
in Summit Models
1.7 (0.067)
593 HO and 793 HO
engines in Summit
models
2.0 (.079)
Throttle Cable Adjustment
NOTE: For SDI models, refer to COMPONENT IN-
SPECTION, REPLACEMENT AND ADJUSTMENT
in ENGINE MANAGEMENT (SDI).

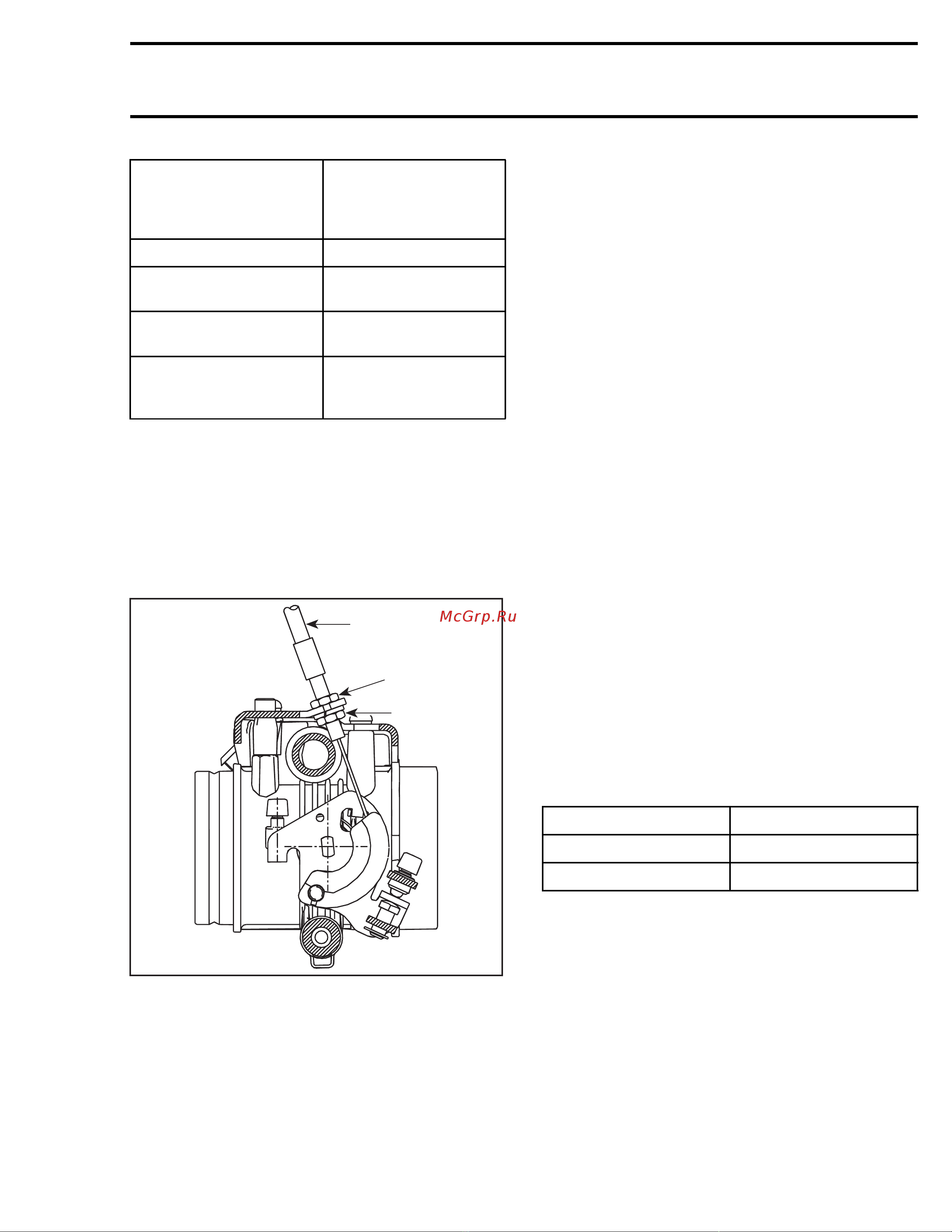

Adjust throttle cable as per following procedure:
Loosen throttle cable housing adjusting and lock-
ing nuts.
1
A32C74A
2
3
1. Throttle cable
2. Adjusting nut
3. Locking nut
While holding throttle lever to wide open throttle
position, adjust throttle cable until cut-away lower
edge is equal or 1.0 mm (.04 in) lower than the
venturi bore on engine side. In this position, turn
cable housing adjusting nut and tighten lock nut.
Also ensure that, when throttle is released to idle
position, the idle adjusting screw end touches its
stopper. No tension should be applied to throttle
cable.
CAUTION: Oil pump cable must be readjust-
ed whenever throttle cable adjustment or idle
speed are changed, otherwise serious engine
damage may occurs.
793 HO Power Tek Engine
NOTE: On a Power Tek engine, if there is any ten-
sion on the throttle cable, it will not be possible to
reset the TPS (TPS will be out of range).
UsetheVCK(VehicleCommunicationKit)toreset
the TPS. For further information, refer to COM-
PONENT INSPECTION, REPLACMENT AND AD-
JUSTMENT in ENGINE MANAGEMENT (Power
Tek) section.
CAUTION: Whenever throttle cable is replaced
or readjusted, the TPS reset must be per-
formed, otherwise serious engine damaged
may occurs.
Idle Speed Adjustment
CAUTION: Before starting engine for the idle
adjustment, make sure that oil pump is adjust-
ed. The oil injection pump adjustment must be
checked after each time carburetor idle is ad-
justed. Refer to OIL INJECTION SYSTEM.
Start engine and allow it to warm then adjust
idle speed to specifications by turning idle speed
screw clockwise to increase engine speed or
counterclockwise to decrease it.
ENGINE IDLE SPEED (RPM)
593 and 593 HO
1600
793 HO
1500
CAUTION: Do not attempt to set the idle speed
by using the pilot screw. Severe engine dam-
age can occur.
CHOKE CABLE
Adjustment
Adjust choke cable as per following procedure:
Loosen choke cable housing adjusting and locking
nuts.
mmr2005-077 191
