Section 03 ENGINES (2-STROKE)
Subsection 03 (593 AND 593 HO SDI ENGINES)

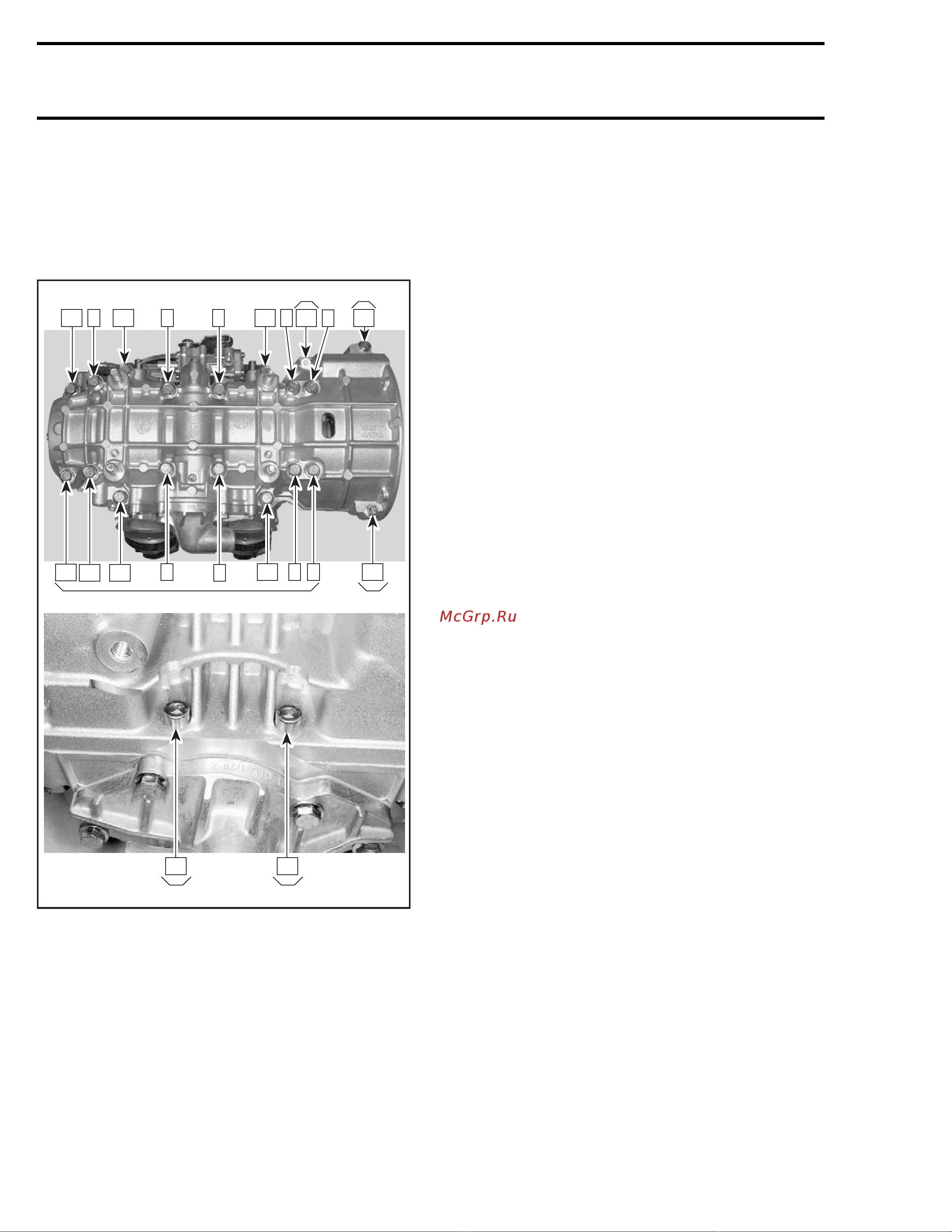

Screw all crankcase bolts in place in the following
sequence and to the appropriate torque through a
two steps torquing: first, screw bolts up to 60%
of the final torque (18 Nm(13.5lbfft) for most
of the bolts), then, tighten to the required torque
(i.e. 29 Nm(21lbfft)).
11
A32C3FA
BA
9 14 4 1 16 5
8
18
12
10 13
2
3
15 6 7 17
19
B
20
B
21
B B
1. Torque bolts 1 through 16 to 29 Nm(21lbfft)
2. Torque bolts 17 through 21 to 9 Nm(80lbf
in)
593 HO SDI Engine
Install oil seal cover.
BREAK-IN
After rebuilding an engine always observe a break-
in period as described in Operator's Guide.
