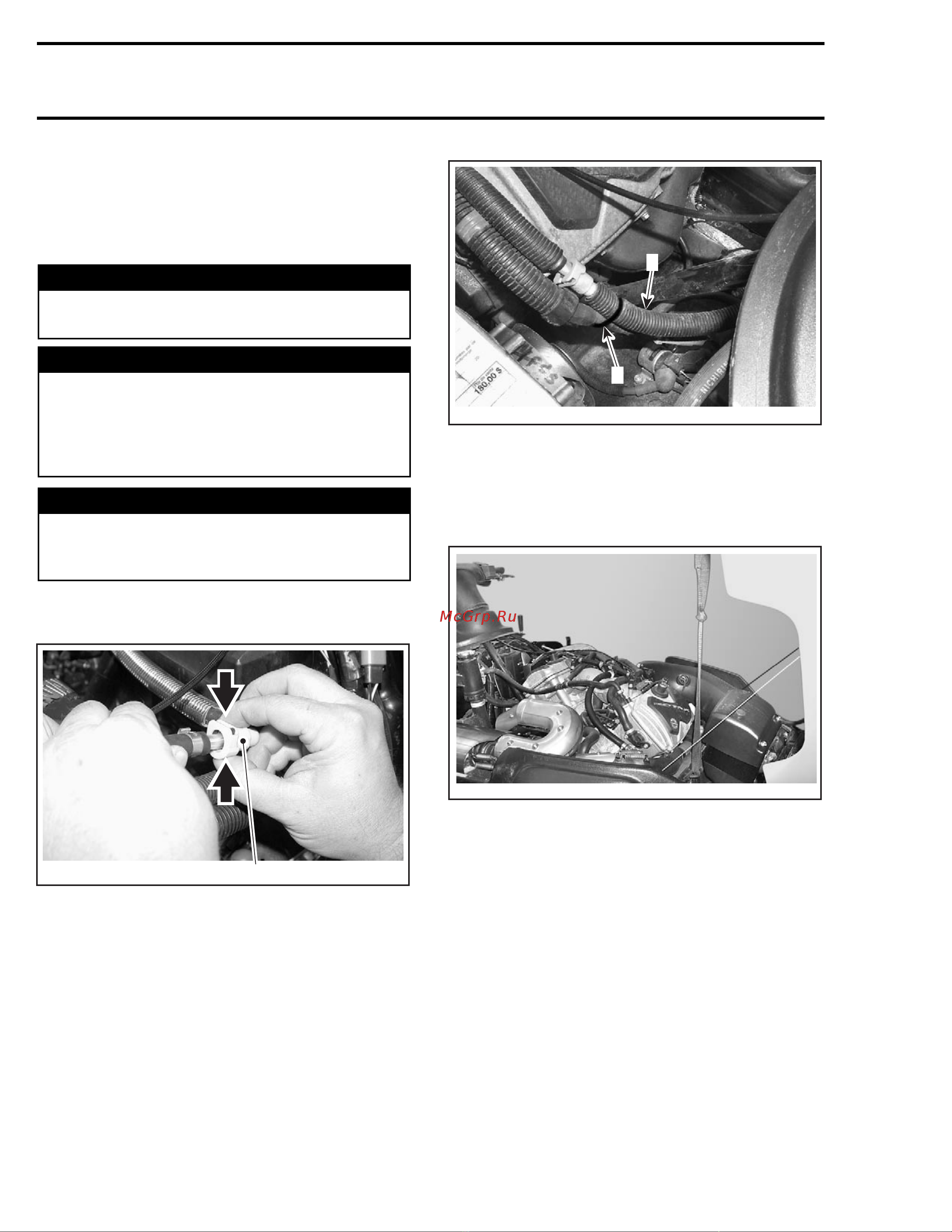

Section 04 ENGINE (4-TEC)
Subsection 02 (REMOVAL AND INSTALLATION)
ENGINE REMOVAL
Use B.U.D.S. to release fuel pressure. Refer to
B.U.D.S. instructions.
Disconnect battery.
WARNING
Battery BLACK (-) cable must always be dis-
connected first and connected last.
WARNING
Never charge or boost battery while installed.
Battery contains sulfuric acid which is corro-
sive and poisonous. In case of contact with
skin, flush with water and call a physician im-
mediately.
WARNING
Should the battery casing be damaged, wear
a suitable pair of non-absorbent gloves when
removing the battery by hand.
Unplug fuel supply line no. 1 by squeezing spring
lock of plastic female coupling.
1
A32C7IA
1. Plastic female coupling
Cut locking tie retaining fuel supply line to engine
harness.
A29I05A
1
2
1. Locking tie
2. Fuel supply line
Lift front of vehicle by the front cross member.
CAUTION: Never lift front of 4-TEC models by
the front bumper.
A29C36A
NOTE: At this point, drain engine oil only if engine
needs repair.
Working underneath bottom pan, remove oil drain
plug then lift oil filter cover.
178 mmr2005-022
