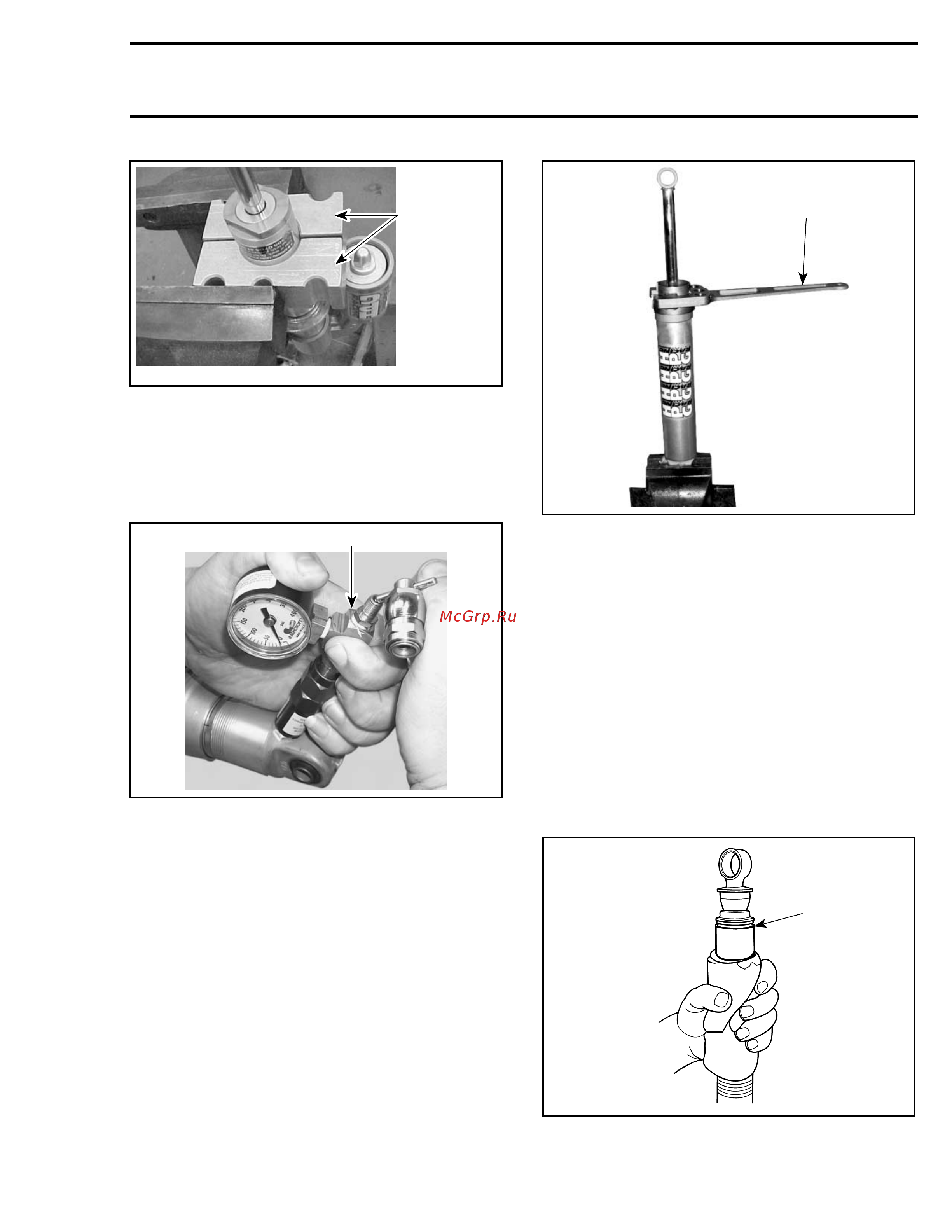

Section 07 REAR SUSPENSION
Subsection 03 (SHOCK ABSORBER INSPECTION AND SERVICING)
529 035 769
A32F2DA
Remove screw on top of valve. Place the needle
guide of gas fill tool kit (needle type) (P/N 503 190
102) on the shock valve. Press the detent pin and
push forward the needle assembly very slowly to-
wards rubber of needle valve. Push on shock tool
valve center rod to release gas pressure.
503 190 102
A32F37A
Remove tool from shock.
Screw Cap Type HPG T/A Shock
Using appropriate size of shock wrench (P/N 529
035 727) unscrew seal carrier.
529 035 727
A32F1NA
TYPICAL
Snap Ring Cap Type HPG T/A Shock
Using a flat tool, pop-out the cap.
Compress the carrier to access and remove the
snap ring.
All HPG T/A Shocks
With the seal carrier removed, slowly lift and
remove damper rod assembly from the damper
body.
NOTE: Remove damper rod assembly slowly to
reduce oil spillage and prevent piston seal damage
by damper body threads. Wrap the damper body
with a shop cloth to capture possible overflow oil
while removing the damper piston.
1
A27F0AA
1. Oil flows
mmr2005-140 271
