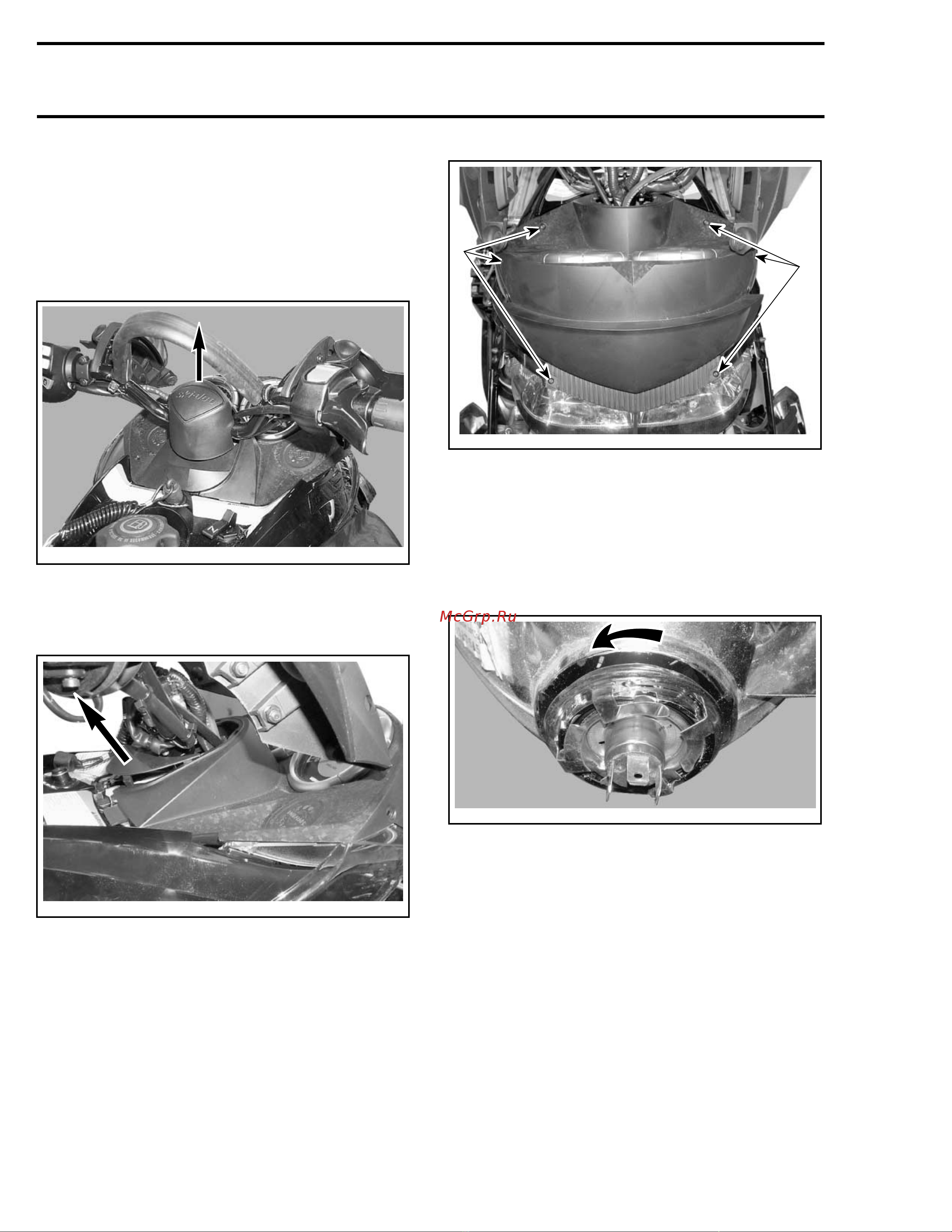

Section05ELECTRICALSYSTEM
Subsection 05 (ACCESSORIES AND LIGHTING SYSTEM)
HEADLAMP
Bulb Replacement
If any headlight bulb is burnt, proceed as follows.
Remove windshield.
Pull out steering support cap.
A32H45A
TYPICAL
Lift hood.
Pull up front console end cap.
A32H47A
TYPICAL
Remove retaining screws and slightly lift acces-
sories panel.
1
A32H46A
1
TYPICAL
1. Remove screws
Place the accessories panel out of way.
Unplug burnt bulb connector. Remove the rubber
boot.
Turn bulb retainer ring counterclockwise to unlock.
Detach the bulb and replace.
A32H44A
TYPICAL
CAUTION: Never touch glass portion of an
halogen bulb with bare fingers, as it short-
ens its operating life. If by mistake glass is
touched, clean it with isopropyl alcohol which
will not leave a film on the bulb. After lock-
ing ring installation, ensure bulb is properly
secured in place.
Properly reinstall removed parts.
Test
If the new bulb do not work correctly, check con-
nector, wiring harness or HI-LOW beam switch.
Removal
Remove the accessories panel.
180 mmr2005-130
