Section 10 STEERING / FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
WARNING
Never lengthen tie rod making threaded por-
tion of ball joint exceed 20 mm (25/32 in).
– Close front of skis manually to take all free-play
from steering mechanism.
NOTE: A rubber cord must be hooked in front of
skis to keep them closed.
Skis should have a toe-out of 5 mm (3/16 in) when
they are in a straight-ahead position and the vehi-
cle is resting on the ground.
Measurements are taken 250 mm (10 in) at front
and rear of ski pivot bolt.
NOTE: To make sure skis are in a straight-ahead
position, place a straight edge against pre-ad-
justed track and measure the distance between
front and rear of skis and straight edge. Distances
should be equal. After the ski toe-out adjustment,
distance at front of ski must be 2.5 mm (3/32 in)
more than at rear on both sides for a total toe-out
of 5 mm (3/16 in).
Skandic LT/LT E/WT/SWT/WT LC
Toe-out adjustment is performed by adjusting
lengthofleftandrighttierodsno. 20. Handlebar
centering is done at same time by turning tie rods
accordingly.
Procedure:
– Loosen jam nuts no. 13 and no. 15 of both tie
rods no. 20.
– Close front of skis manually to take all free-play
from steering mechanism.
WARNING
Never lengthen tie rod making threaded por-
tion of ball joint exceed 20 mm (25/32 in).
NOTE: A rubber cord must be hooked in front of
skis to keep them closed.
Skis should have a toe-out of 5 mm (3/16 in) when
they are in a straight-ahead position and the vehi-
cle is resting on the ground.
Measurements are taken 250 mm (10 in) at front
and rear of ski pivot bolt.
NOTE: To make sure skis are in a straight-ahead
position, place a straight edge against pre-ad-
justed track and measure the distance between
front and rear of skis and straight edge. Distances
should be equal. After the ski toe-out adjustment,
distance at front of ski must be 2.5 mm (3/32 in)
more than at rear on both sides for a total toe-out
of 5 mm (3/16 in).
LUBRICATION
WARNING
Do not lubricate throttle and/or brake cable
nor their housing.

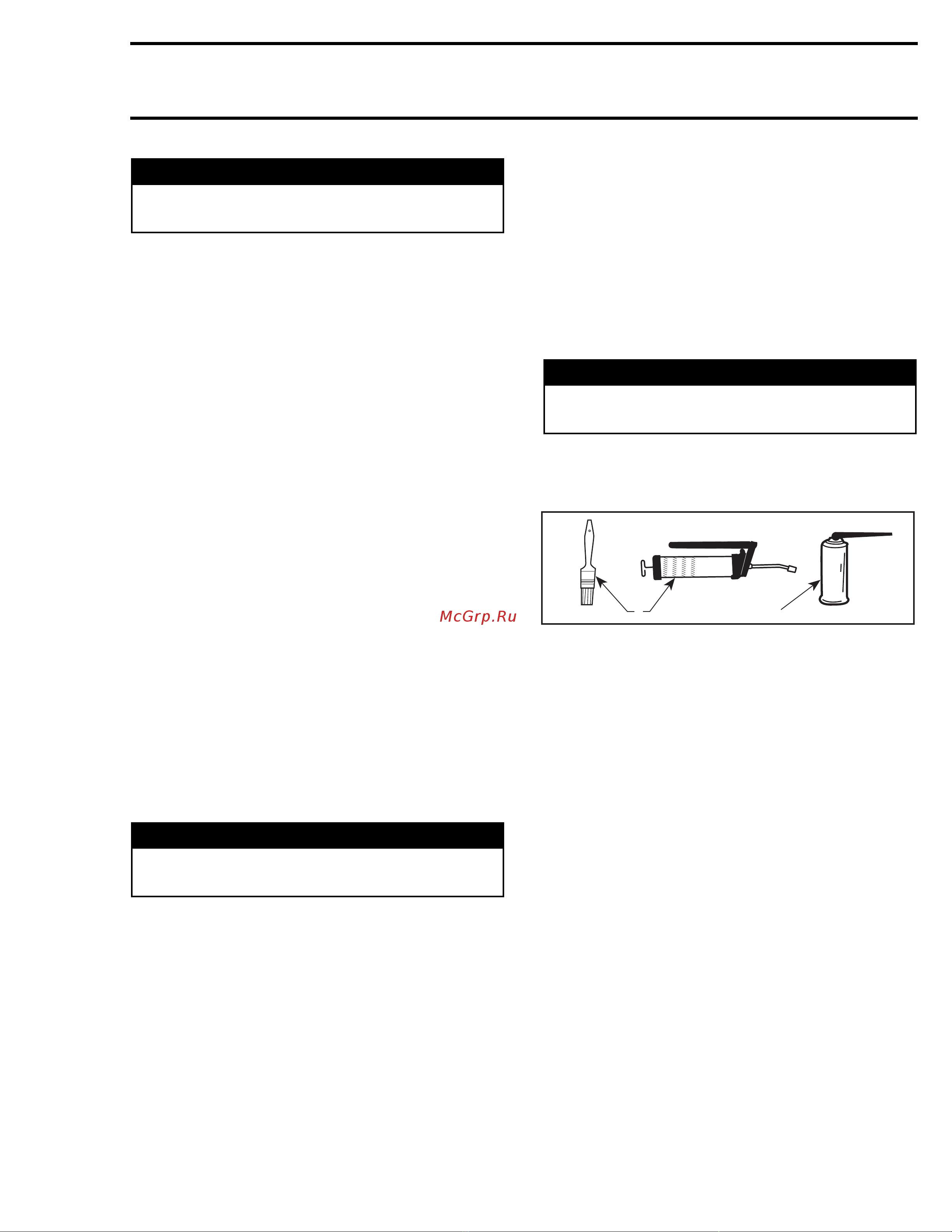

The following symbols will be used to show what
type of lubricant should be used at the suitable
locations.
A00G01A
2
1
1. Synthetic grease (P/N 413 711 500)
2. Penetrating lubricant (P/N 293 600 016)
Tun d ra
Lubricate front suspension posts and pivot arm at
grease fittings. Pump five strokes of grease gun
on each post. Use suspension synthetic grease
(P/N 293 550 033).
NOTE: There are 3 grease fittings.
Apply Bombardier Lube (P/N 293 600 016) to ball
joints.
NOTE: Thereare6lubricationpoints.
Apply suspension synthetic grease (P/N 293 550
033) to both steering column bushings.
mmr2005-053 527
