Ski-Doo Ski Doo MX Z 2005 [317/1429] Warning

Section 07 ELECTRICAL SYSTEM

Subsection 03 (STARTING SYSTEM)

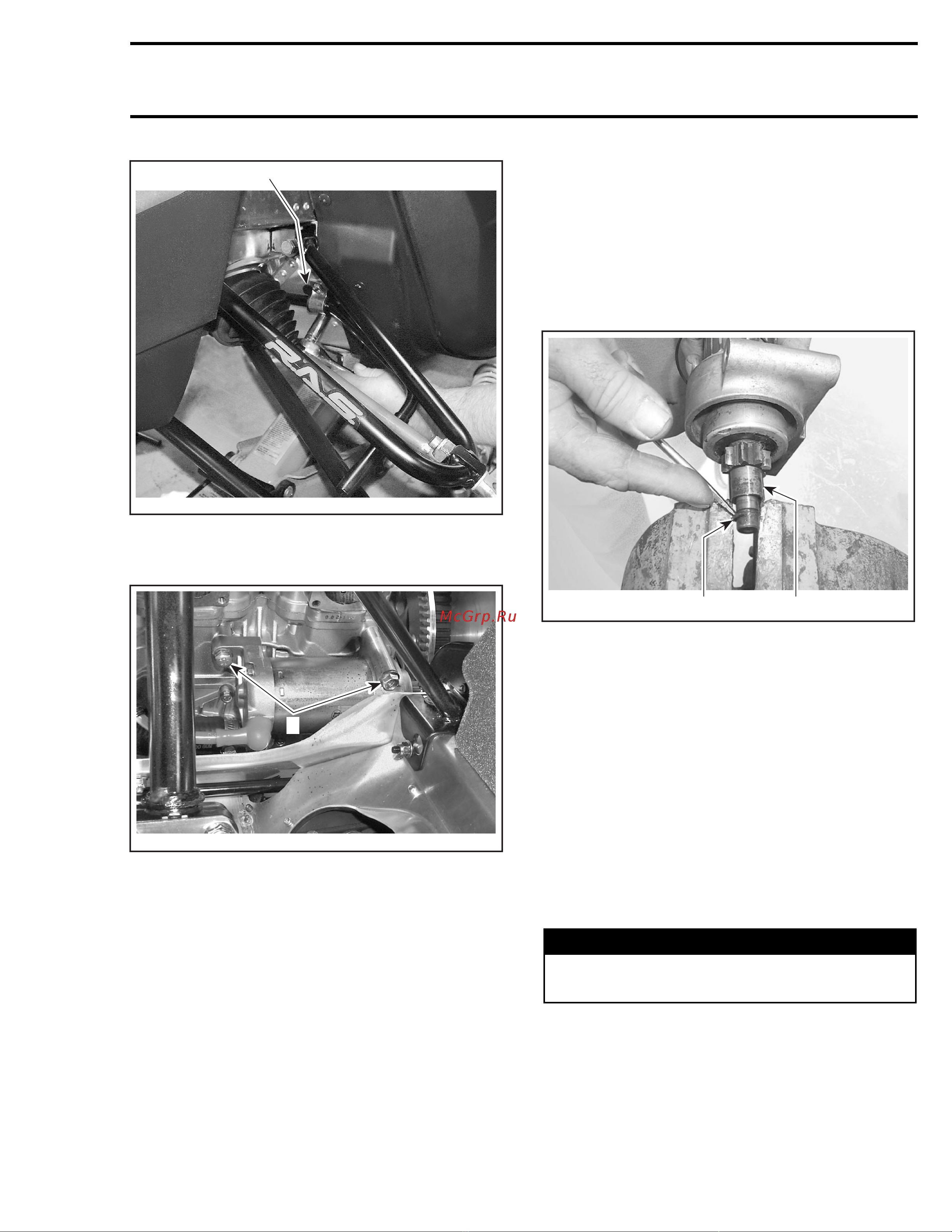

A33F27B

1. Clamp

– Unbolt and remove starter from engine.

A33E0VA

1. Bolts to be removed

STARTER DISASSEMBLY

Before disassembling, trace index marks on

starter housing no. 10 and starter housing assem-

bly no. 8 to ease further assembly.

Remove starter through bolts no. 17. Separate

end frame housing no. 14 from starter housing

no. 10. Withdraw starter housing from armature

no. 11.

Brush holder no. 13 can be removed from end

frame housing no. 14 by disconnecting the end

frame attached brush from brush holder no. 13.

Check the radial play between the armature shaft

and end frame bearing. Replace the end frame

bearing or replace starter. If parts are in good con-

dition then coat with synthetic grease (P/N 413

711 500) before reinstalling them.

Push back the collar no. 3 using a screwdriver.

Remove snap ring no. 2. Remove collar no. 3 and

spring no. 4.

A32E20A

1. Collar

2. Snap ring

Turn starter clutch no. 6 clockwise to remove it

from armature assembly no. 11.

Pull housing from armature.

STARTER CLEANING

CAUTION: Yoke assembly and drive unit as-

sembly must not be immersed in cleaning sol-

vent.

Clean brushes and holders with a clean cloth

soaked in solvent. Brushes must be dried thor-

oughly with a clean cloth.

Blow brush holders clean using compressed air.



WARNING

Always wear safety glasses when using com-

pressed air.

Remove dirt, oil or grease from commutator using

acleanclothsoakedinsuitablesolvent. Drywell

using a clean and dry cloth.

Clean engine ring gear teeth and drive unit (clutch).

mmr2005-084 303
