Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

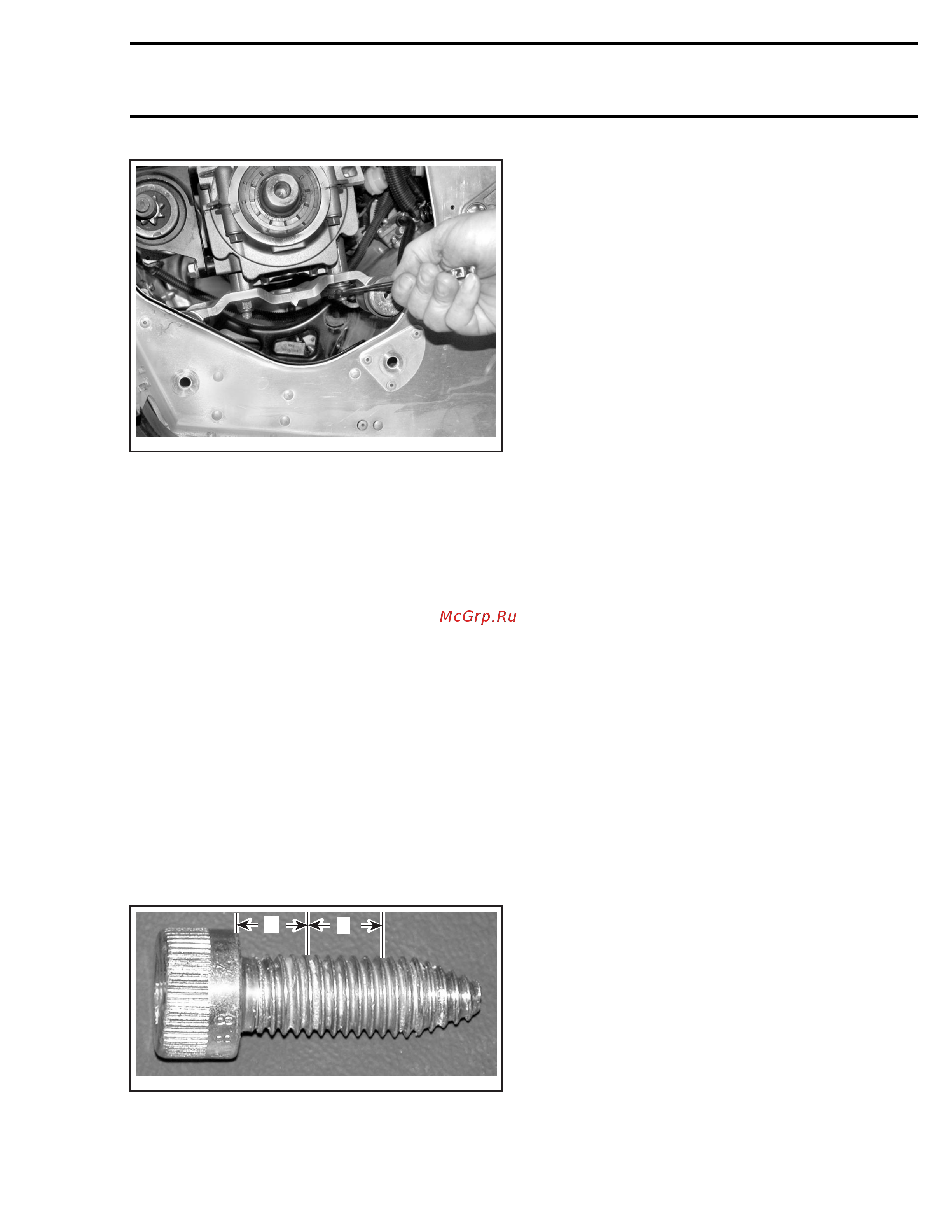

A33C4IA
Remove the support from engine and lower it in
frame.
Remove engine from vehicle.
INSPECTION
Check if engine support no. 14 is cracked, bent or
otherwise damaged. Replace if necessary.
Check rubber mounts no. 15 on engine support.
Replace them if brittle, cracked or otherwise dam-
aged.
INSTALLATION
To install engine in vehicle, reverse the removal
procedure. However, pay attention to the follow-
ing.
Install engine support under engine then torque
engine support nuts to 35 N•m(26lbf•ft).
Before installing engine support bolts , apply Loc-
tite 243 (blue) (P/N 293 800 060) as shown in the
following illustration.
A33C2IA
A
B
A. DonotapplyLoctiteinthisarea,±10mm(.39in)
B. Loctite area, ± 8 mm (.31 in)
Torque engine support bolts to 48 N•m(35lbf•ft).
Hand torque engine stopper no. 9 then torque its
nut no. 16 to 50 N•m(37lbf•ft).
Reinstall all removed parts by using the appropri-
ate component/system reinstallation procedures
described in this shop.
mmr2005-070 63
