Section03FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMPS)
WARNING
Fuel lines remain under pressure at all times.
Always proceed with care and use appro-
priate safety equipment when working on
pressurized fuel system. Wear safety glasses
and work in a well ventilated area. Do not
allow fuel to spill on hot engine parts and/or
on electrical connectors. Proceed with care
when removing/installing high pressure test
equipment or disconnecting fuel line connec-
tions. Use the VCK to release fuel pressure
prior to removing a hose. Cover the fuel
line connection with an absorbent shop rag.
Slowly disconnect the fuel hose to minimize
spilling. Wipe off any fuel spillage in the
engine compartment. Fuel is flammable and
explosive under certain conditions. Always
disconnect battery or remove 30 amp. fuse
prior to working on the fuel system.
Before working on any procedure of the fuel sys-
tem, always disconnect BLACK (–) cable from bat-
tery, then the RED (+) cable.
WARNING
Always disconnect battery or starter cables
exactly in the specified order, BLACK (–)cable
first. It is recommended to disconnect elec-
trical connections prior to disconnecting fuel
lines.
WARNING
Whenever a fuel line is disconnected, ob-
struct line with a hose pincher (P/N 295 000
076) or (P/N 529 032 500). Fuel is flammable
and explosive under certain conditions. Al-
ways wipe off any fuel or oil spillage from the
vehicle. Ensure work area is well ventilated.
Do not smoke or allow open flames or sparks
in the vicinity.

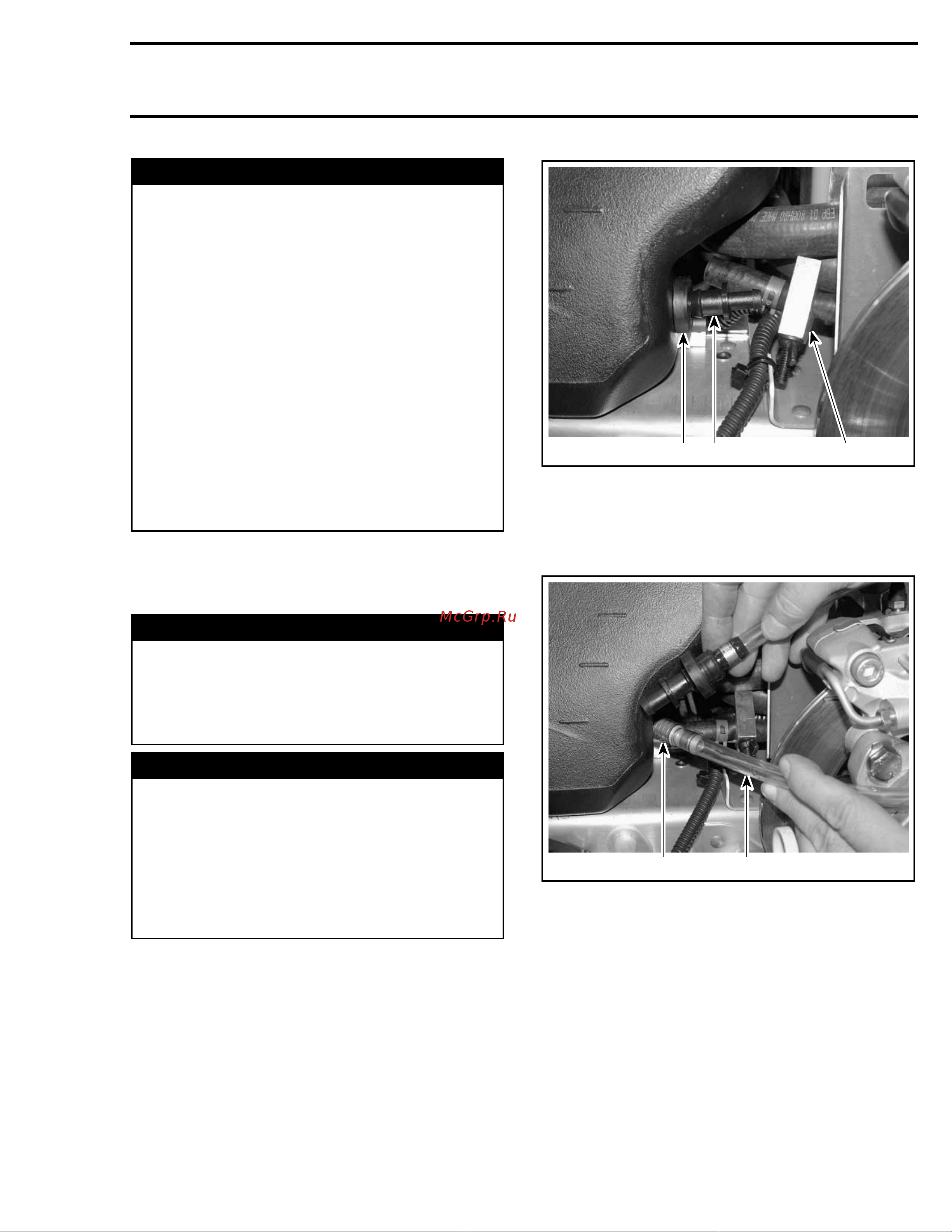

IN-TANK FUEL FILTER REMOVAL
Drain fuel tank.
Install a hose pincher (P/N 295 000 076) on supply
hose then, unplug hose.
Pull out male connector from grommet.
295 000 076
A33I02A
21
TYPICAL
1. Male connector
2. Grommet
Pull out grommet from fuel tank then, pull out pick-
up hose and fuel filter.
1
A33I01A
2
TYPICAL
1. Fuel filter
2. Pickup hose
Replace fuel filter and grommet.
IN-TANK FUEL FILTER
INSTALLATION
Installation is reverse of removal procedure. Pay
attention to the following details.
mmr2005-123 105
