Section 08 ELECTRICAL
Subsection 03 (ALTERNATOR)
ALTERNATOR

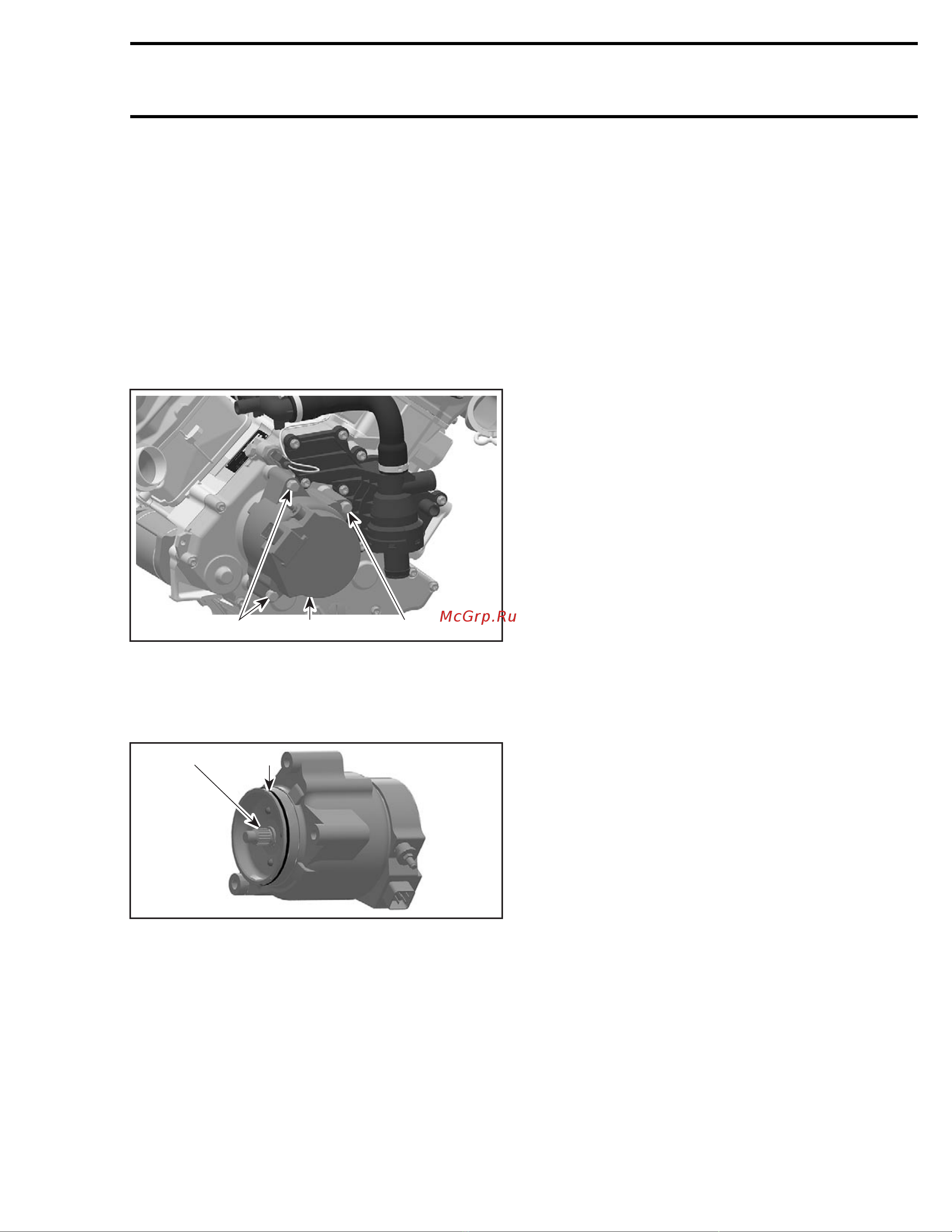

The alternator is located on the ignition cover on
the engine right hand side (alternator side).
REMOVAL
Remove:
– alternator cable
– alternator plug
– alternator screws and pull alternator.
1
R1004motr128A
2 2
1. Alternator
2. Three screws
INSPECTION
2
R1004motr129A
1
1. Drive gear splines
2. O-ring
NOTE: The alternator does not require any main-
tenance and must not be opened for repair work.
Inspect the housing, O-ring and the alternator
drive gear splines for damage or wear. In case
of damage, the alternator must be replaced. The
alternator can only be replaced as a complete
assembly.
INSTALLATION
The installation is the reverse of removal proce-
dure. Pay attention to the following details.
NOTE: At assembly replace the O-ring of the alter-
nator. Grease the drive gear splines and the O-ring
before assembly using multi purpose grease. This
will ease assembly and prevent displacement of
the gasket during installation.
If it is not possible to move the alternator into the
guide, this is due to the position of the drive gear.
Pull the alternator out once more, slightly rotate
the drive gear and try again.
Torque alternator screws to 23 N•m(17lbf•ft).
mmr2005-044 437
