Section04FUELSYSTEM
Subsection 02 (CARBURETORS, THROTTLE AND CHOKE CABLES)
1
A33C1QA
2

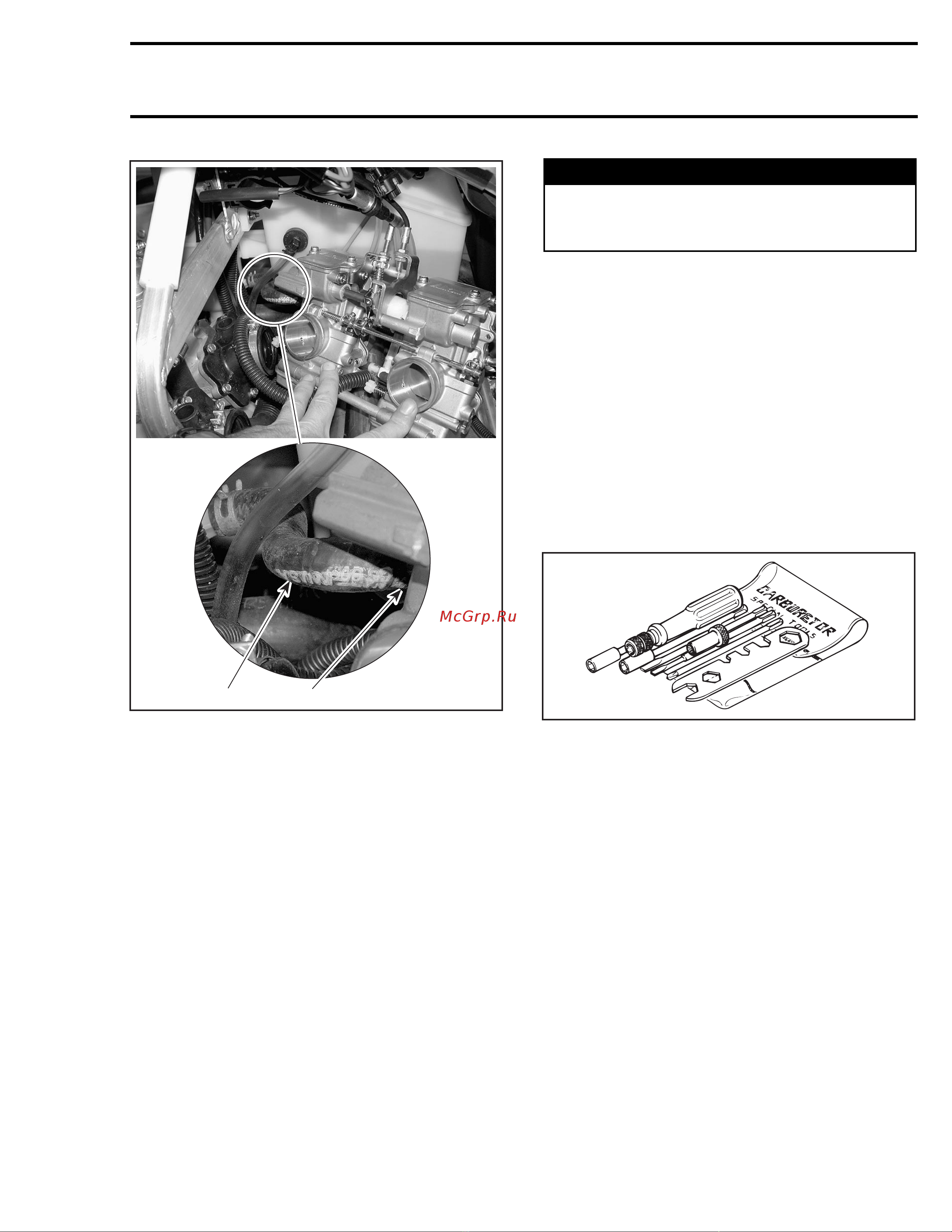

1. Outlet line
2. Pinch here
Disconnect outlet line from carburetor assembly
taking care to recuperate coolant.
CLEANING AND INSPECTION
The entire carburetor should be cleaned with a
general solvent and dried with compressed air be-
fore disassembly.
CAUTION: Heavy duty carburetor cleaner may
be harmful to the float material and to the rub-
ber parts, O-rings, etc. Therefore, it is recom-
mended to remove those parts prior to clean-
ing.
Carburetor body and jets should be cleaned in
a carburetor cleaner following manufacturer’s
instructions. When jets are very dirty or coated
with varnish and gum, replace them.
WARNING
Solvent with a low flash point such as gaso-
line, naphtha, benzol, etc., should not be used
as they are flammable and explosive.
Check throttle slide for wear. Replace as neces-
sary.
Check for fuel soaked into float no. 1; replace as
necessary.
Check float for cracks or other damages affecting
free movement; replace as necessary.
Inspect throttle and choke cables and housings for
any damage. Replace as necessary.
DISASSEMBLY AND ASSEMBLY
NOTE: To ease the carburetor disassembly and
assembly procedures, it is recommended to use
carburetor tool kit (P/N 404 112 000).
A00B2FA
Float Bowl
Unscrew drain plug no. 2 and screw no. 3.Re-
move float bowl no. 6.
Float and Needle Valve Assembly
Unfasten both screws then, pull out float and nee-
dle valve assembly.
At assembly, apply Loctite 243 on screw threads.
Main Jet
Themainjetno. 5 installed in the carburetor has
been selected for a temperature of -20°C(0°F)
at sea level (except Power Tek models, refer to
ENGINE MANAGEMENT). Different jetting can
be installed to suit temperature and/or altitude
changes. A service bulletin gives information
about calibration according to altitude and tem-
perature.
Main jet no. 5 may be removed without removing
float bowl no. 6 by first removing drain plug no. 2.
mmr2005-077 187
