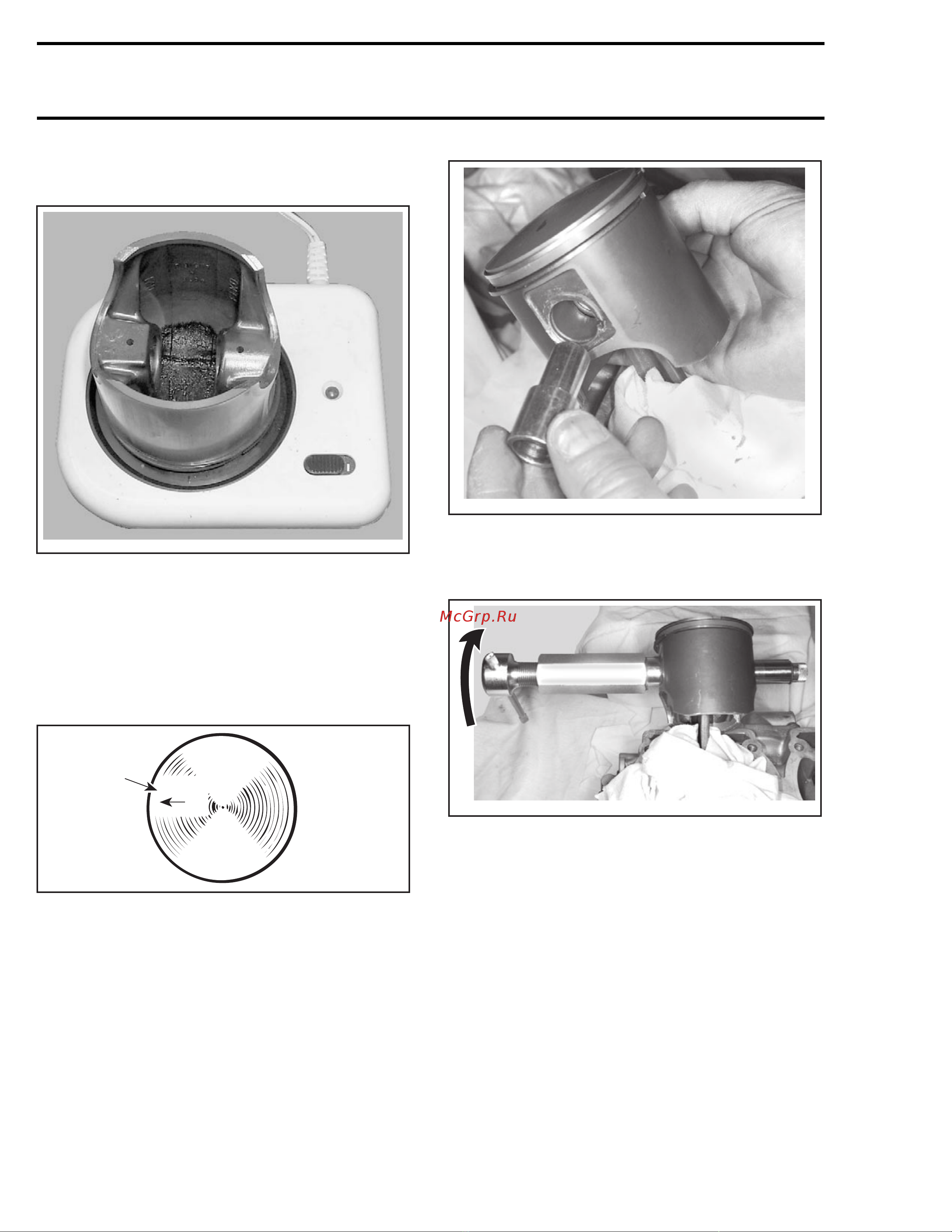

Section 03 ENGINES (2-STROKE)
Subsection 02 (443 AND 552 ENGINES)
Heat piston using bearing heater (P/N 529 035
969).
A32CBHA
CAUTION: Piston temperature must not exceed
46°C(115°F). NEVER USE DIRECT FLAME to
heat the piston and never freeze the pin. In-
appropriate heating procedure(s) may damage
the piston.
Mount piston over connecting rod with the letters
“AUS” (over an arrow on the piston dome) facing
in the direction of exhaust port.
A01C01A
AUS
1
1. Exhaust
Install shouldered sleeve.
A02C2IA
TYPICAL — SHOULDERED SLEEVE INSTALLATION
Install piston pin puller and turn handle until piston
pin is correctly positioned in piston.
A02C2JA
TYPICAL
Remove piston pin puller and sleeve kit.
70 mmr2005-011
