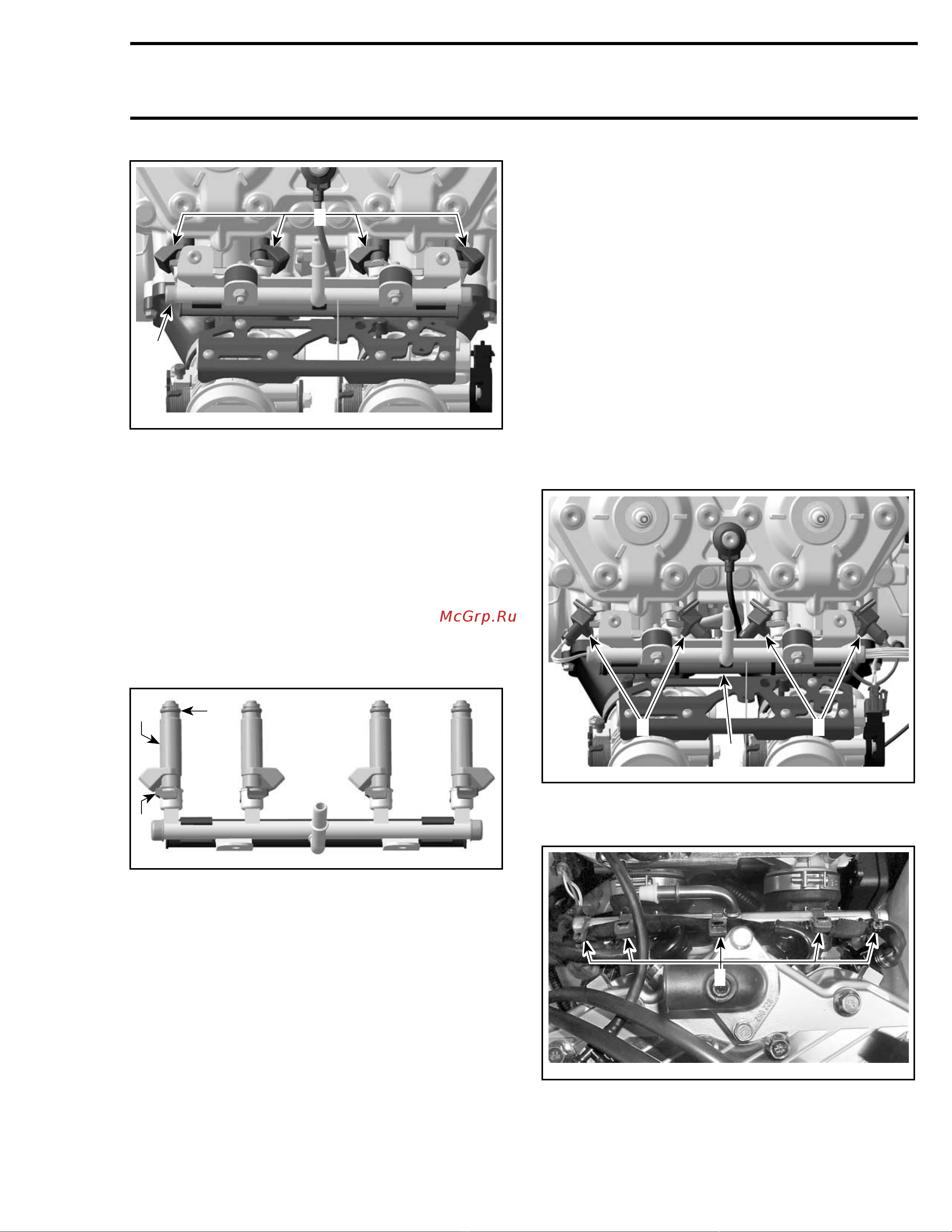

Section 04 ENGINE MANAGEMENT (SDI)
Subsection 03 (COMPONENT INSPECTION, REPLACEMENT AND ADJUSTMENT)
A35C3YA
2
1
1. Fuel rail
2. Fuel injectors
Disconnect wiring harness from the four fuel in-
jectors.
Remove the harness support from the fuel rail.
NOTE: It is not necessary to cut the tie raps of the
harness support.
Unscrew rail retaining nuts.
Gently pull rail up by hand, working each side
slightly at a time.
Pull rail out with fuel injectors.
A35C3ZB
2
1
3
FUEL RAIL AND INJECTORS
1. Fuel injector
2. Injector clip
3. O-ring
Remove the injector clip. Fuel injector can be eas-
ily pulled out of the fuel rail.
Installation
For the installation, reverse the removal proce-
dure. Pay attention to the following details.
NOTE: Pay attention not to mix up the inner and
outer injectors. Refer to table and illustration
above.
Replace O-rings with new ones.
NOTE: A thin film of engine oil should be applied
to O-rings to ease fuel injector installation in fuel
rail and cylinders.
Insert injectors with your hand. Do not use any
tool. Ensure clip and injector are properly in-
stalled.
Torque rail retaining nuts to 10 N•m(89lbf•in).
When installing fuel line connector to the fuel rail,
put some oil on the O-ring to ease installation.
Attach the harness support to the fuel rail.
Add dielectric grease (P/N 293 550 004) to injector
electrical connector.
Reconnect fuel injector connectors.
NOTE: The grey colored connectors are for cylin-
der MAG side.
A35C40A
3 2
1
1. Harness support
2. Grey fuel injector connectors — MAG
3. Black fuel injector connectors — PTO
A32CCSA
1
1. Locking ties
mmr2005-126 143
