Section 05 ENGINE MANAGEMENT (POWER TEK)
Subsection 03 (COMPONENT INSPECTION, REPLACEMENT AND ADJUSTMENT)

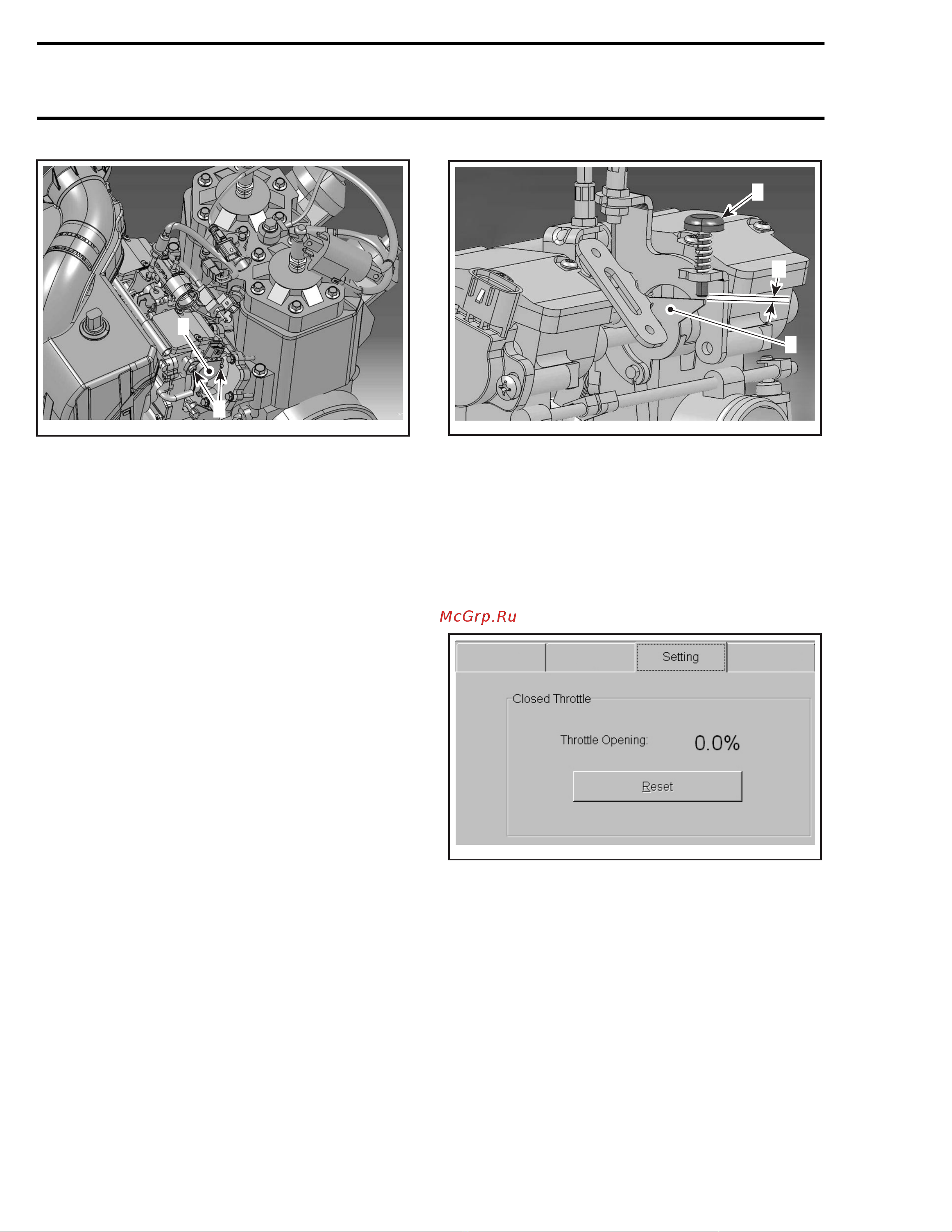

A33C4WC
1
2
CARBURETOR
1. Throttle position sensor (TPS)
2. Screws
Install the new TPS.
Apply Loctite 243 on the TPS retaining screws,
then torque to 3 N•m(27lbf•in).
Reinstall remaining removed parts.
ProceedwiththeClosed Throttle Reset.Seebe-
low.
Closed Throttle Reset (TPS)
Preparation
NOTE: This operation performs a reset of the val-
ues in the ECM.
This reset is very important. The setting of the
TPS will determine the basic parameters for all
fuel and ignition mappings.
NOTE: Resetmustbedoneeachtimethethrottle
position sensor (TPS) is loosened or removed or
carburetor or ECM is replaced. An improperly set
TPS may lead to poor engine performance.
Ensure carburetor synchronization and throttle ca-
ble are properly adjusted prior to performing this
setting. Refer to FUEL SYSTEM.
IMPORTANT: Having enough free-play in throttle
lever is critical to properly set the values in ECM.
Setting Closed Throttle (TPS)
Unscrew idle speed screw until there is a gap with
the throttle lever stopper.
A33C51A
1
2
A
1. Idle screw
2. Throttle lever stopper
A. Gap required here
Activate throttle lever 2 – 3 times to make sure
throttle slides are fully closed.
Connect vehicle communication kit (VCK) and use
B.U.D.S. software.
Push the Reset button in the Setting tab of
B.U.D.S.
A33C59A
If TPS is not within the allowed range while reset-
ting the Closed Throttle, the ECM will generate a
fault code and will not accept the setting.
Perform the wide open throttle verification. In
Monitoring Tab of B.U.D.S., check if throttle
opening is within 95 and 100% when throttle
lever is fully depressed.
220 mmr2005-107
