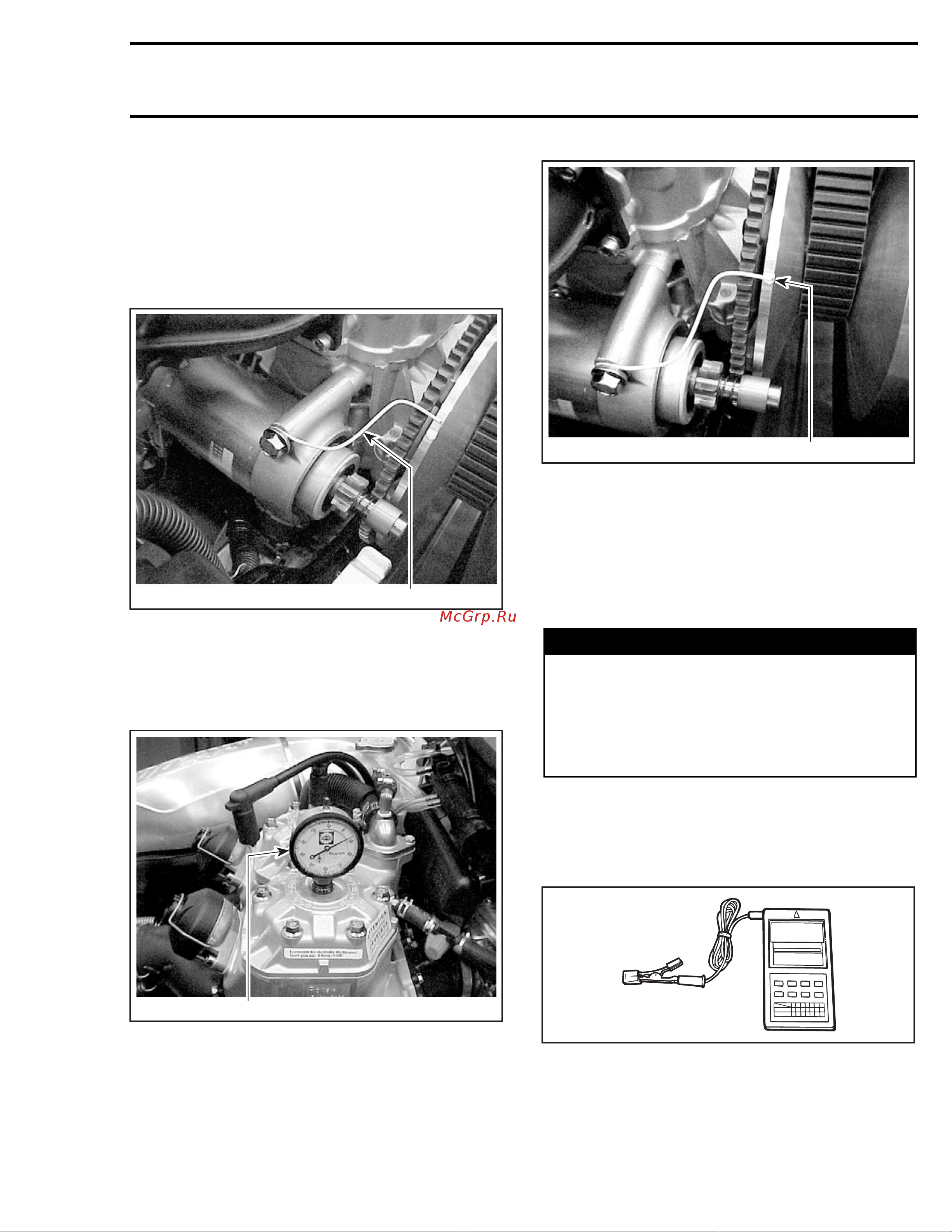

Section 08 ELECTRICAL
Subsection 01 (IGNITION TIMING)
•“0” now indicates exact TDC.
– Rotate the drive pulley clockwise, one-quarter
turn then carefully rotate it counterclockwise
until the needle indicates the specified mea-
surement, indicated in TECHNICAL DATA.
– Twist a wire as shown and use it as a pointer.
Install the wire on upper starter bolt.
1
A29E0RA
TYPICAL
1. Pointer
– With the TDC gauge indicating specified timing,
scribe a mark on drive pulley fixed half in line
with pointer end.
1
A29E0SA
TYPICAL
1. TDC gauge indicating specified timing
1
A29E0TA
TYPICAL
1. Timing mark in line with pointer end
Checking Ignition Timing
Use a timing light.
To check the ignition timing, refer to illustration
and proceed as follows:
WARNING
Place ski tips against a wall, raise rear of vehicle
on a stand, so that track does not contact the
ground. Do not allow anyone in front of or be-
hind the vehicle while engine is running. Keep
clear of track and do not wear loose clothing
which can get caught in moving parts.
– Connect the timing light pickup to a spark plug
cable.
Connect a digital induction type tachometer
(P/N 529 014 500).
529 014 500
TACHOMETER
– Start the engine and point timing light on timing
mark. Bring engine to 3500 RPM.
mmr2005-042 427
