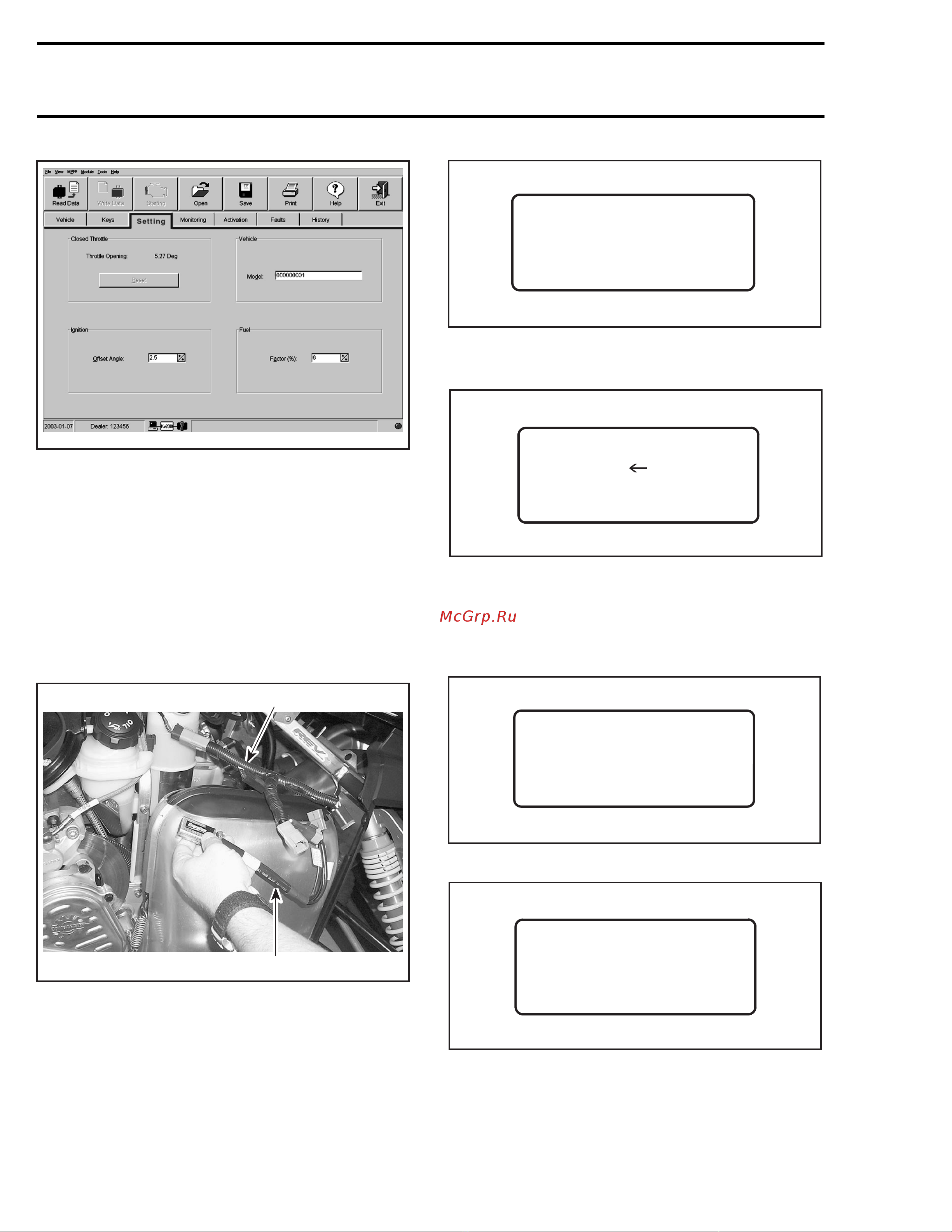

Section07ELECTRICALSYSTEM
Subsection 01 (IGNITION SYSTEM)
A32A1TA
Detailed information about the B.U.D.S. software
and its usage is available under its Help section.
MPEM Programmer
All Engines except SDI and Power TEK
Timing can also be changed using the MPEM pro-
grammer (P/N 529 035 878).
Connect the 9-volt adaptor (P/N 529 035 675) to
the supply harness (P/N 529 035 869) and supply
harness to diagnostic connector, located on right
side of the vehicle.
529 035 675
529 035 869
A33E0LA
Connect MPEM programmer to DESS post.
Turn on programmer then enter password.
From main menu select no. 3. INFO VEHICLE.
1. CHECK KEYS
2. PROGRAM KEY
>3. VEHICLE INFO
4
START VEH.
+
A30E1XA
Vehicle information is transferred from MPEM to
programmer.
A30E1YA
TRANSFER
PGMR MPEM
NOTE: In fact the programmer takes a copy of
all vehicle parameters scribed in MPEM. This
copy will be modified within the programmer then
transferred to the MPEM.
Select no. 4. ENGINE PARAMETER.
A30E1ZA
+
>4 ENGINE PARAM.
2. DELIVERY DATE
1. CUSTOMER NAME
3. VEH. SERIAL#
Select no. 1 TIMING ADJUSTMENT.
A30E2GA
2. ENGINE SERIAL#
>1. TIMING ADJUST
3. CALIBRATION
Press ENTER.
288 mmr2005-082
