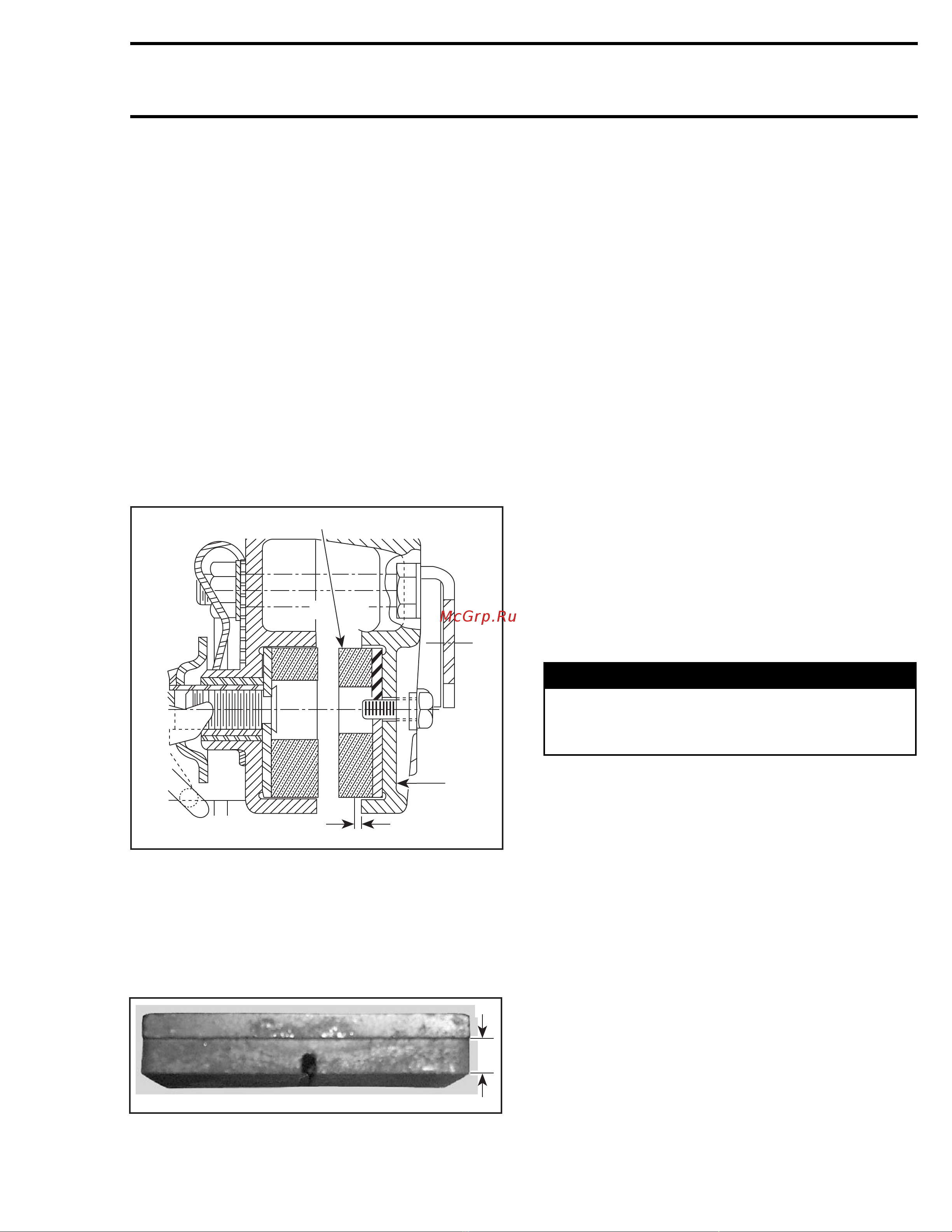

![Ski-Doo Ski Doo MX Z 2005 [1256/1429] Assembly](/views2/1012747/page1256/bg4e8.png)
Section 07 TRANSMISSION
Subsection 05 (BRAKE)
CLEANING
Clean all metal components in a general purpose
solvent. Thoroughly dryall components before as-
sembling.
CAUTION: Do not clean brake pads in solvent.
Soiled brake pads must be replaced by new
ones.
INSPECTION
7, Brake Pad
Models with Mechanical Brake
Brake pads must be replaced when fixed pad
projects only 1 mm (1/32 in) from caliper.
CAUTION: Brake pads must always be replaced
in pairs.
A15D03A
A
2
1
TYPICAL
1. Fixed pad
2. Inner caliper
A. 1 mm (1/32 in) minimum
Models with Hydraulic Brake
Brake pads must be replaced when lining is 1 mm
(1/32 in) thick.
A
A30D1BA
A. 1 mm (1/32 in) minimum
CAUTION: Brake pads must always be replaced
in pairs.
Brake Disc
All Models
Check for scoring, cracking or heat discoloration,
replace as required.
CAUTION: Brake disc should never be ma-
chined.
ASSEMBLY
14, Ratchet Wheel
Apply synthetic grease (P/N 413 711 500) on
threads and spring seat prior to installing. Fully
tighten then back off one turn.
16, Pin
Install so that it can only be removed upward.
Lock it in the caliper casting notch.
INSTALLATION
To install brake, reverse removal procedure paying
attention to the following.
WARNING
Avoid getting oil on brake pads. Do not lubri-
cate or apply antirust or antifreeze solution in
brake cable.
17, Brake Disc
Skandic LT
The brake disc must be floating on countershaft
for efficient operation of brake.
Apply anti-seize lubricant (P/N 413 701 000) on
shaft and check that disc slides freely.
The disc hub exceeds the disc more from one side
than from the other. Install disc with the longer
exceeding portion toward driven pulley.
mmr2005-038 393
