Section 08 ELECTRICAL
Subsection 04 (BATTERY)
CAUTION: Prior to charging the battery, al-
ways remove it from the vehicle to prevent
electrolyte spillage.

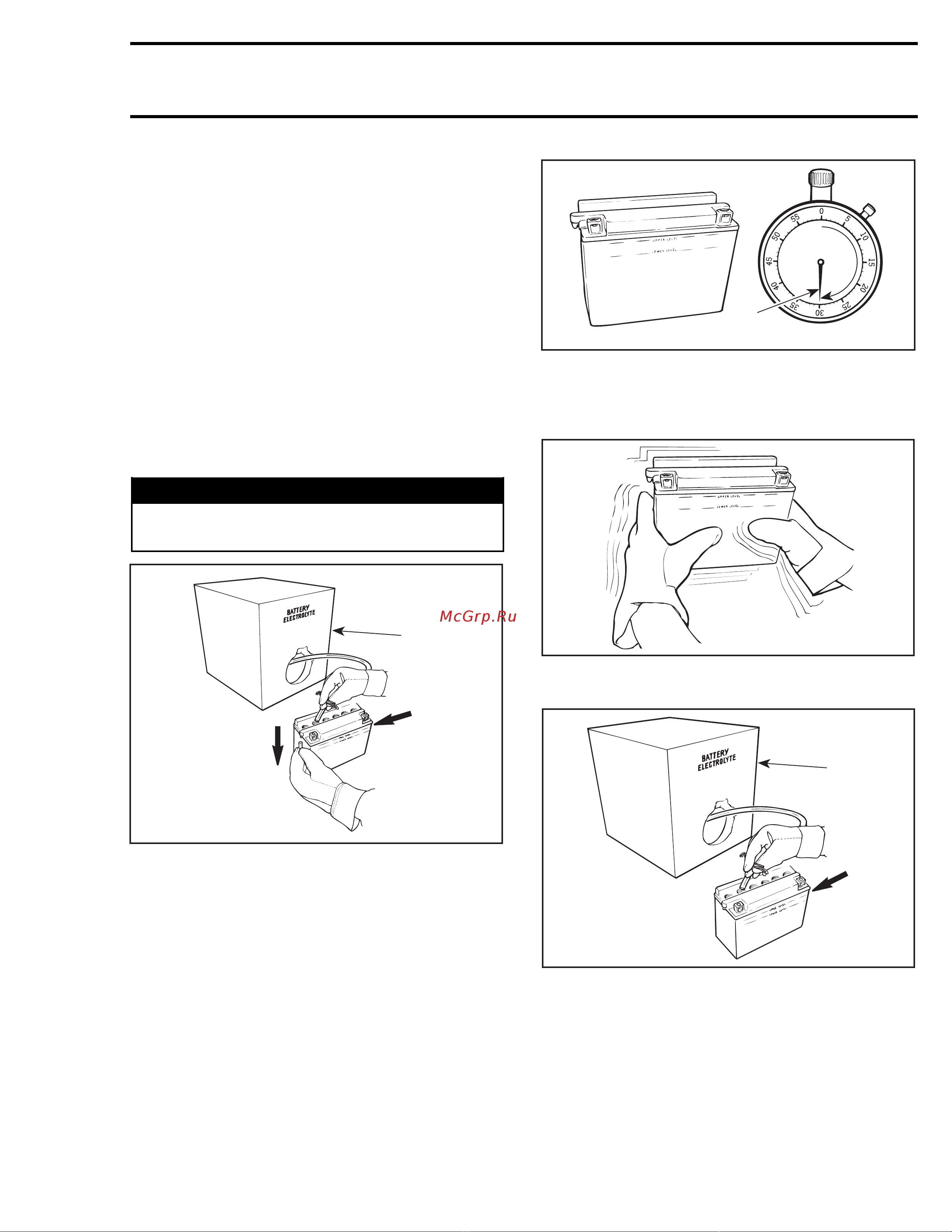

A new battery is factory fresh dry charged. For
storage purposes, it is fitted with a temporary seal-
ing tube.
Do not remove the sealing tube or loosen battery
caps unless activation is desired.
In case of accidental premature removal of caps or
sealing tube, battery should be given a full charge.
Perform the following operations anytime a new
battery is to be installed.
– Remove the sealing tube from the vent elbow.
Install vent tube, included in the battery kit, to
battery elbow.
WARNING
Failure to remove the sealing tube could re-
sult in an explosion.
A17E0FA
1
1. Battery electrolyte
– Remove caps and fill battery to UPPER LEVEL
line with electrolyte (specific gravity : 1.265 at
20°C(68°F)).
– Allow the battery to stand for 30 minutes MIN-
IMUM (1 hour MAXIMUM) so that electrolyte
soaks through battery cells.
A17E0GA
1
1. 30 minutes
– Allow gas bubbles to escape by lightly shaking
battery by hand.
A17E0HA
– Readjust the electrolyte level to the UPPER
LEVEL line.
A17E0RA
1
1. Battery electrolyte
– Connect a 2 A battery charger for 10 to 20
hours.
mmr2005-045 443
