Section08ELECTRICAL
Subsection 04 (BATTERY)

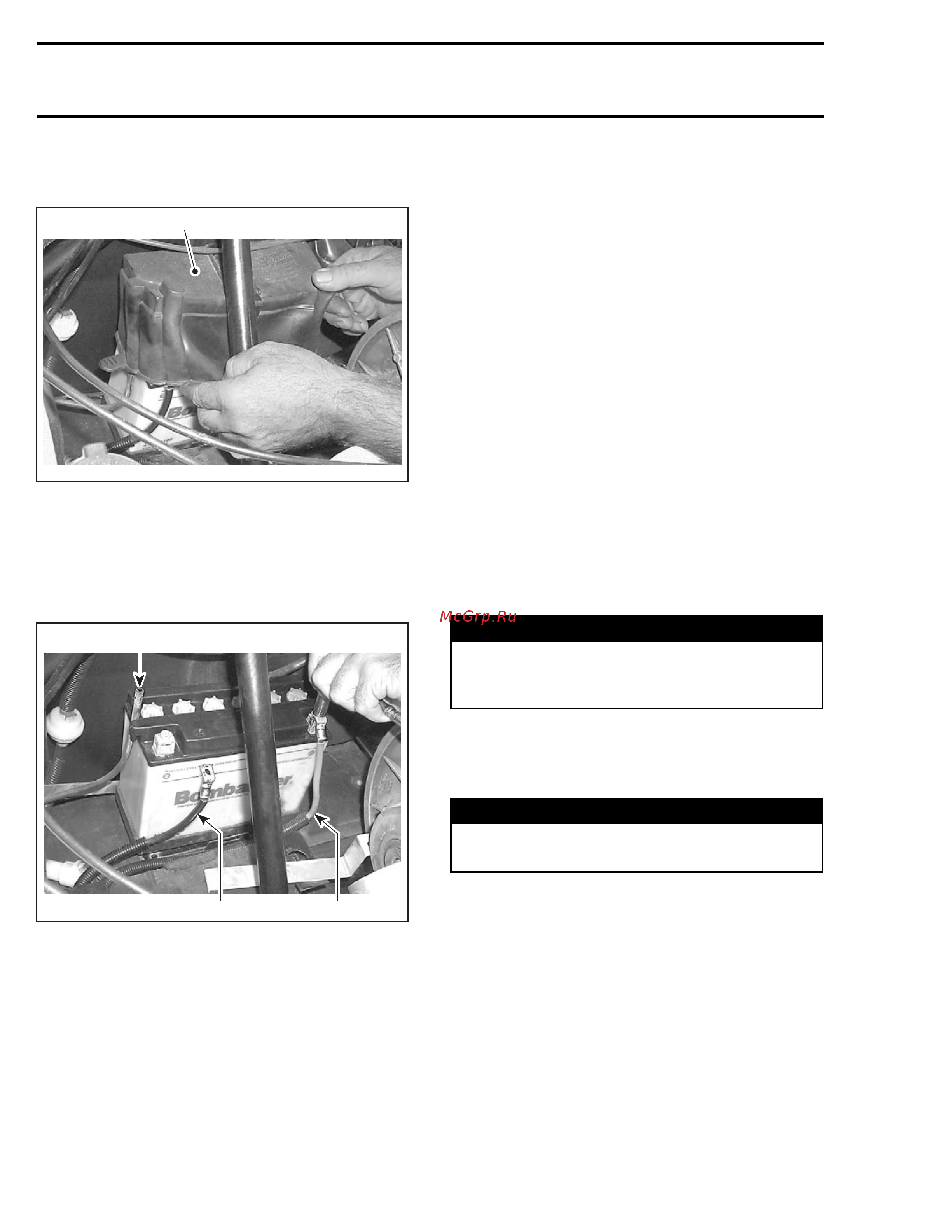

Unbolt battery cover steel strip and remove bat-
tery cover.
1
A29C2IA
TYPICAL
1. Battery cover
Unplug vent tube (if applicable) from battery vent
nipple.
Disconnect the black negative cable first followed
by red cable and remove battery.
1
A29C2JA
2
3
TYPICAL
1. Vent tube (if applicable)
2. Black negative cable
3. Red cable
Remove battery from vehicle.
NOTE: On some models, be careful not to lean the
battery so that electrolyte flows out of vent tube.
CAUTION: Should any electro
lyte spillage oc-
cur, immediately wash off with a solution of
baking soda and water to prevent damage to
vehicle components.
CLEANING
Clean the battery, battery casing, vent tube, caps,
cables and battery posts using a solution of baking
soda and water.
Remove corrosion from battery cable terminals
and battery posts using a firm wire brush. Bat-
tery top should be cleaned by soft brush and any
grease-cutting soap or baking soda solution.
Skandic LT E
CAUTION: Do not allow cleaning solution to en-
ter battery interior since it will destroy the elec-
trolyte.
INSPECTION
All Models
Visually inspect battery casing for cracks or other
possible damage. Discoloration, warping or raised
top, indicates that battery has overheated or been
overcharged. If casting is damaged, replace bat-
tery and thoroughly clean battery tray and close
area with water and baking soda.
WARNING
Should the battery casing be damaged, wear
a suitable pair of non-absorbent gloves when
removing the battery by hand.
Inspect battery posts for security of mounting.
Inspect for cracked or damaged battery caps, re-
place defective caps.
WARNING
Battery caps do not have vent holes. Make
sure that vent tube is not obstructed.
440 mmr2005-045
