Section 06 DRIVE SYSTEM
Subsection 06 (CHAINCASE)
GENERAL
During assembly/installation, use the torque val-
ues and service products as in the exploded view.
Clean threads before applying a threadlocker. Re-
fer to SELF-LOCKING FASTENERS and LOCTITE
APPLICATION at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must strictly be adhered to.
Locking devices (e.g.: locking tabs, elastic
stop nuts, self-locking fasteners, cotter pin,
etc.) must be installed or replaced with new
ones where specified. If the efficiency of
a locking device is impaired, it must be re-
newed.
CHAINCASE OIL LEVEL

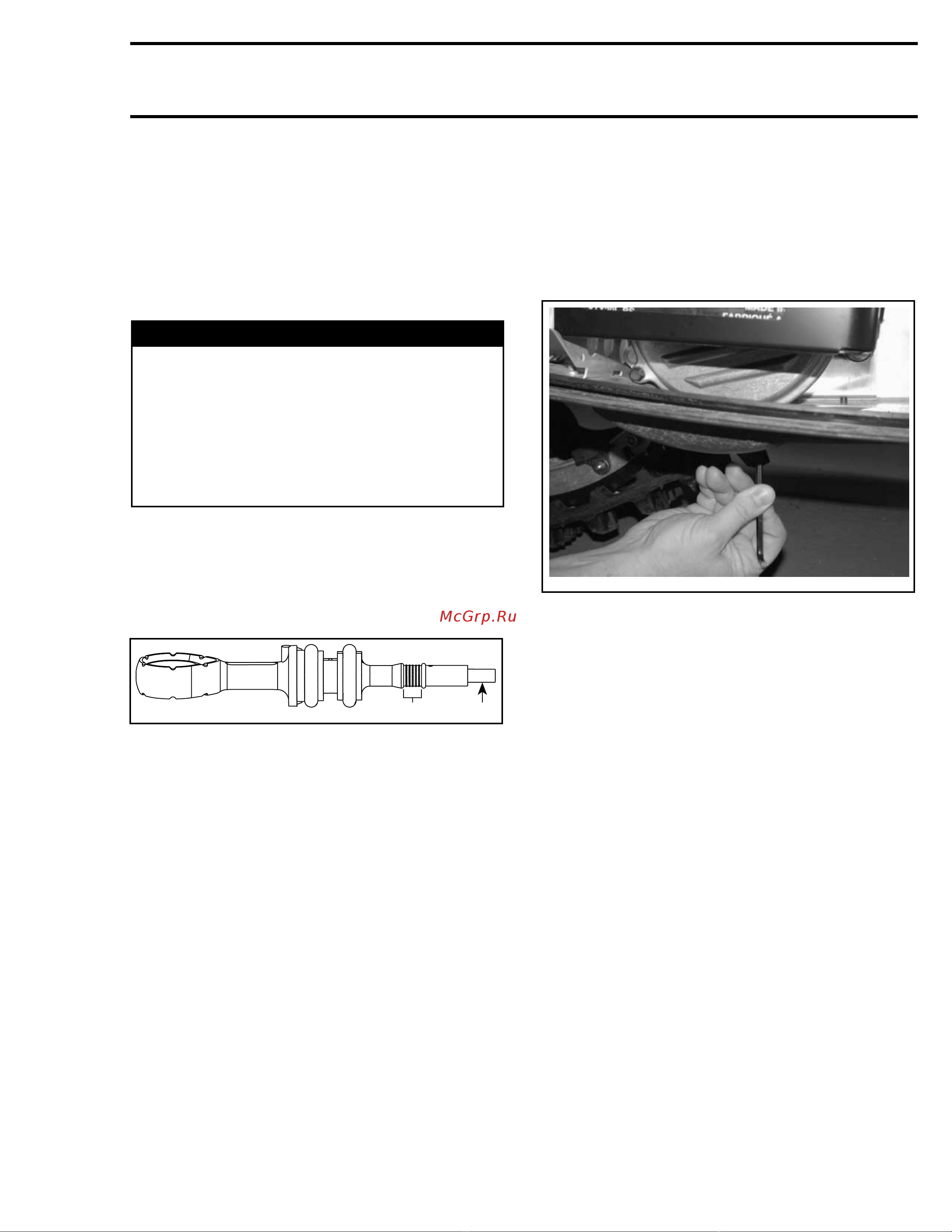

With the vehicle on a level surface, check the oil
level by removing dipstick no. 1. Oil level must be
between lower and upper marks.
A35D0DA
1 2
TYPICAL
1. Level between marks
2. Magnet
NOTE: It is normal to find metallic particles stuck
to dipstick magnet. If bigger pieces of metal are
found, remove the chaincase cover and inspect
the chaincase parts.
Remove metal particles from magnet.
Refill to upper mark using XP-S chaincase oil
(P/N 413 801 900) or the XP-S synthetic chaincase
oil (P/N 413 803 300).
CAUTION: Do not use unrecommended types
of oil when servicing. Do not mix synthetic oil
with other types of oil.
Check O-rings no. 2. If the O-rings are brittle, hard
or otherwise damaged, replace them.
OIL CHANGE
Draining Procedure
Place a drain pan under chaincase drain plug area.
Remove dipstick no. 1.
Using an Allen key, remove the drain plug no. 3.
A33D1NA
Wait a while to allow oil to flow out of chaincase.
Filling Procedure
Place the vehicle on a level surface.
Using a funnel, pour 250 mL (8.5 U.S. oz) of XP-S
chaincase oil (P/N 413 801 900) or the XP-S syn-
thetic chaincase oil (P/N 413 803 300).
Check oil level with the dipstick and add oil if nec-
essary. The level must be between lower and up-
per dipstick's marks.
DRIVE CHAIN ADJUSTMENT
Summit Series
NOTE: Brake disc and countershaft splines must
be in good condition before checking if chain is
loose.
Unscrew lock nut no. 4.
Tighten tensioner adjustment screw no. 5 BY
HAND, then unscrew 1/2 turn. Hold tensioner
screw and tighten lock nut no. 4.
CHAINCASE COVER
Removal
Drain chaincase, see the above procedure.
mmr2005-136 225
