Section01MAINTENANCE
Subsection 03 (PRESEASON PREPARATION)
PRESEASON PREPARATION
Proper vehicle preparation is necessary after the
summer months or when a vehicle has not been
used for more than one month.
Refer to preseason preparation column from
MAINTENANCE CHART jointly with the present
preseason preparation procedure in order to cover
each and every aspect of the snowmobile presea-
son preparation procedure.
Any worn, broken or damaged parts found during
the storage procedure should have been replaced.
If not, proceed with the replacement.
WARNING
Unless otherwise specified, engine should be
turned off for preparation procedure.
FUEL FILTER REPLACEMENT
All Models except V-1000 and 593 SDI
Engine Equipped Models
Drain fuel tank.
Remove fuel line grommet from fuel tank and pull
out inlet fuel line from tank.

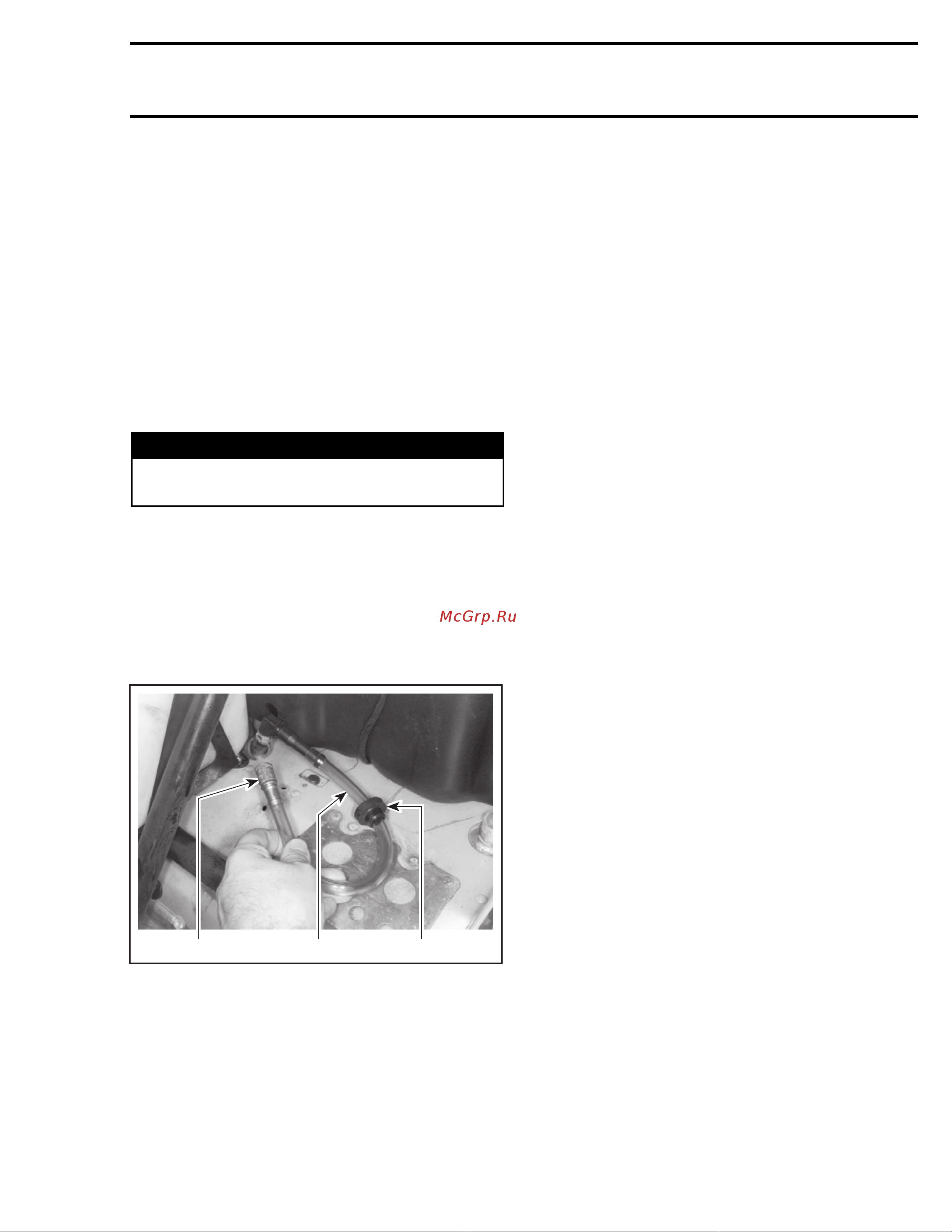

A03I0GA
3 12
TYPICAL
1. Inlet fuel line
2. Position of grommet when installing
3. Fuel filter
Replace fuel filter. To facilitate the fuel line instal-
lation, slide grommet on fuel line about 50 mm
(2 in) away from elbow then install grommet on
fuel tank and push elbow through grommet.
V-1000 and 593 SDI Engine Equipped
Models Only
Fuel filter, inlet and outlet hoses come as an as-
sembly.
The fuel filter is located beside the steering col-
umn, next to coolant tank.
Using B.U.D.S. release the fuel pressure. Refer to
COMPONENT INSPECTION AND ADJUSTMENT.
Remove console to gain access to top of fuel
pump module.
Disconnect both ends of fuel filter line.
Unfasten clip retaining fuel filter line to fuse box
support.
Unscrew the fuel filter support nut then remove
the filter.
Reverse removal procedure for installation.
THROTTLE BODY CLEANING (ON
SO EQUIPPED MODELS)
Remove the throttle body from vehicle.
Using the pulley flange cleaner (P/N 413 711 809),
remove the dirt ejected by the drive belt from the
throttle plate and from both throttle body bores.
After throttle body installation, adjust throttle and
injection oil cables.
CARBURETOR CLEANING (ON
SO EQUIPPED MODELS)
Disassemble carburetor(s) in order to clean all in-
ternal parts. Do not hesitate to replace any jets
having gum or varnish on their surfaces.
AIR FILTER CLEANING
Check that inside of air silencer is clean and dry
then properly reinstall the filter.
CAUTION: These snowmobiles have been cal-
ibrated with the filter installed. Operating the
snowmobile without it may cause engine dam-
age.
mmr2005-004 7
