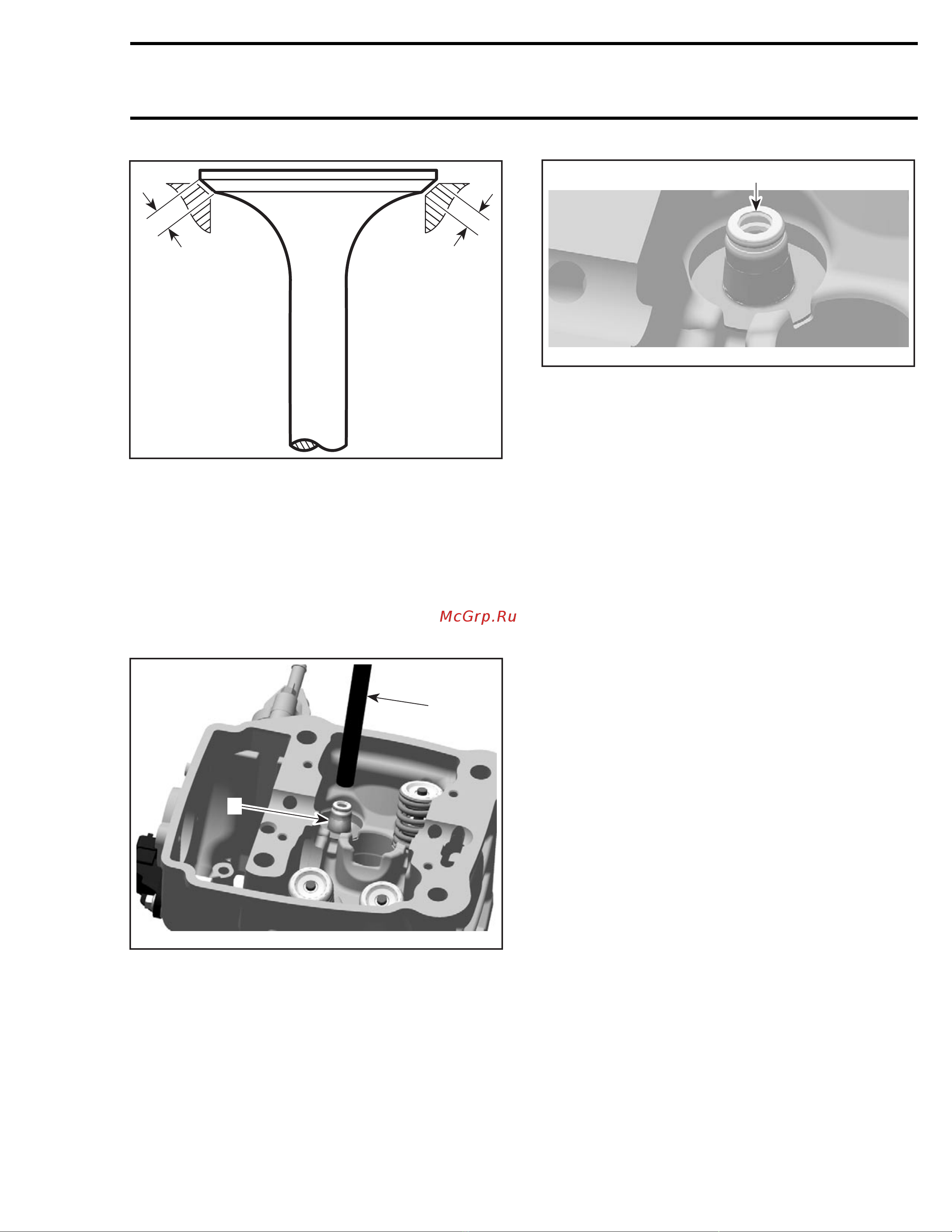

Section 04 ENGINE (4-TEC)
Subsection 05 (CYLINDER AND CYLINDER HEAD)
V01C1HA
B
A
A. Valve face contact width
B.Valveseatcontactwidth
Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
NOTE: At installation, replace the valve stem seal
no. 15, use valve stem seal installer (P/N 529 035
687).
R1004motr178A
1
2
1. Valve stem seal
2. Valve stem seal installer (P/N 529 035 687)
Apply engine oil on valve stem and install it.
CAUTION: Be careful when valve stem is
passed through sealing lips of valve stem seal.
1
R1004motr105A
1. Sealing lips of valve stem seal
To ease installation of cotters, apply oil or grease
on them so that they remain in place while releas-
ing the spring.
After spring is installed, ensure it is properly
locked by tapping on valve stem end with a soft
hammer so that valve opens and closes a few
times.
CAUTION: An improperly locked valve spring
will cause engine damage.
CYLINDER
NOTE: Theengineisequippedwithtwodifferent
cylinders no. 2 and no. 72.
Removal
Lock crankshaft with crankshaft locking tool
(P/N 529 035 900), refer to CRANKSHAFT/DRIVE
GEARS.
Remove:
– cylinder heads (refer to CYLINDER HEAD).
Pull cylinder no. 2 and no. 72.
Discard cylinder gaskets no. 1.
Inspection
Cylinder
Check cylinder for cracks, scoring and wear ridges
on the top and bottom of the cylinder. If so, re-
place cylinder.
Cylinder Taper
Measure cylinder bore at 3 recommended posi-
tions. See the following illustration.
mmr2005-025 227
