INTRODUCTION
TIGHTENING TORQUE
Tighten fasteners to torque mentioned in explod-
ed views and/or text, When they are not specified,
refer to following table. The table also gives the
metric conversion.
WARNING
Torque wrench tightening specifications
must strictly be adhered to. Locking devices
(ex.: locking tabs, elastic stop nuts, self-lock-
ing fasteners, etc.) must be installed or
replaced with new ones, where specified. If
the efficiency of a locking device is impaired,
it must be renewed.
In order to avoid a poor assembling, tighten
screws, bolts or nuts in accordance with the
following procedure:
– Manually screw all screws, bolts and/or nuts.
– Apply the half of the recommended torque val-
ue.
CAUTION: Be sure to use proper tightening
torque for the proper strength grade.
NOTE: When possible, always apply torque on the
nut.
– Torque at the recommended torque value.
NOTE: Always torque screws, bolts and/or nuts in
a criss-cross sequence.

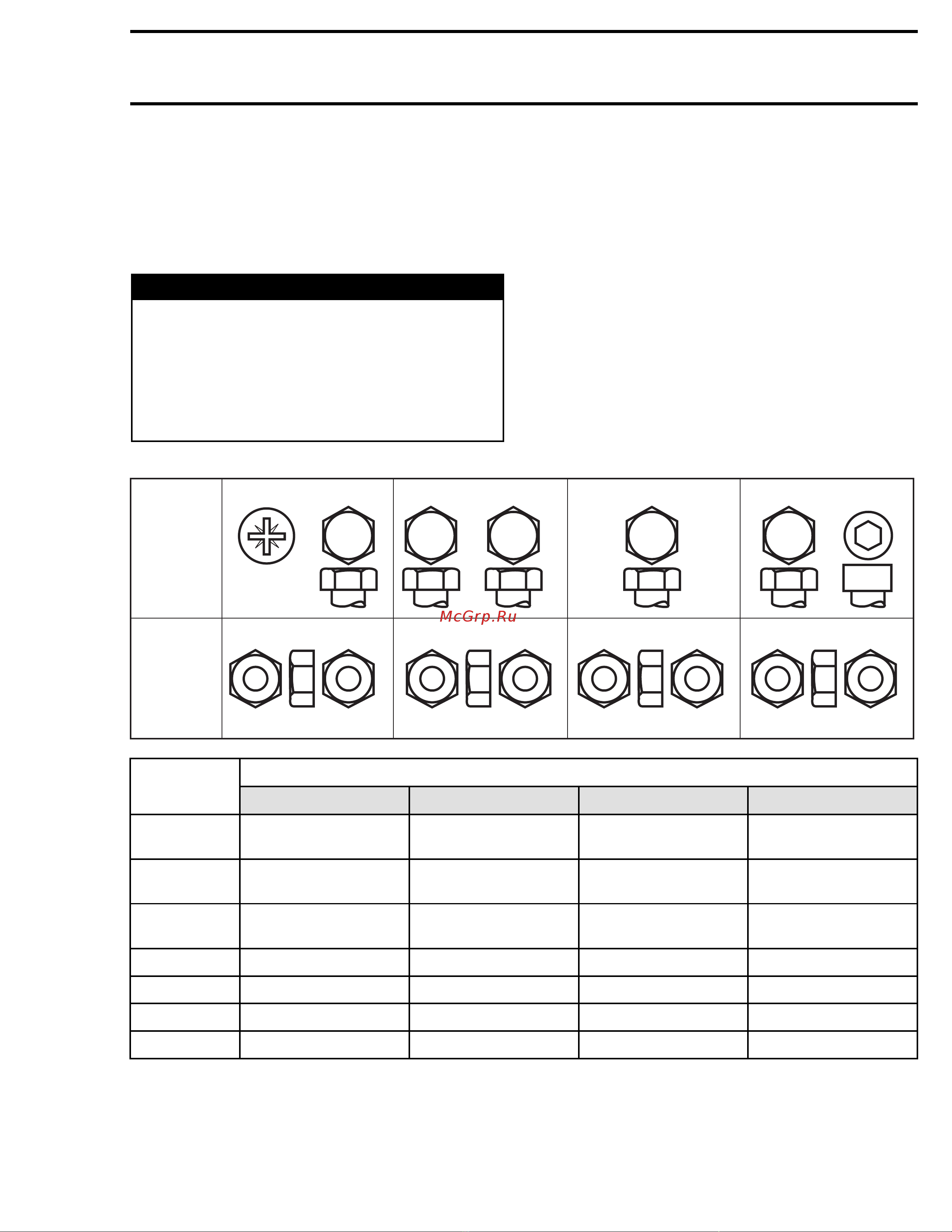

A00A8BS
Property
class
and
head
markings
Property
class
and
nut
markings
5
5
10
10
10
10
12
12
4.8
4.8
4.8
8.8
8.8
8.8
9.8
9.8
9.8
10.9
10.9
10.9
12.9
12.9
12.9
12.9
FASTENER GRADE/TORQUE
FASTENER
SIZE
5.8
Grade
8.8
Grade
10.9
Grade
12.9
Grade
M4
1.5 – 2N•m
(13 – 18 lbf•in)
2.5 – 3N•m
(22 – 27 lbf•in)
3.5 – 4N•m
(31 – 35 lbf•in)
4 – 5N•m
(35 – 44 lbf•in)
M5
3 – 3.5 N•m
(27 – 31 lbf•in)
4.5 – 5.5 N•m
(40 – 47 lbf•in)
7 – 8.5 N•m
(62 – 75 lbf•in)
8 – 10 N•m
(71 – 89 lbf•in)
M6
6.5 – 8.5 N•m
(58 – 75 lbf•in)
8 – 12 N•m
(71 – 106 lbf•in)
10.5 – 15 N•m
(93 – 133 lbf•in)
16 N•m (142 lbf•in)
M8 15 N•m(11lbf•ft) 24.5 N•m(18lbf•ft) 31.5 N•m(23lbf•ft) 40 N•m(30lbf•ft)
M10 29 N•m(21lbf•ft) 48 N•m(35lbf•ft) 61 N•m(45lbf•ft) 72.5 N•m(53lbf•ft)
M12 52 N•m(38lbf•ft) 85 N•m(63lbf•ft) 105 N•m(77lbf•ft) 127.5 N•m(94lbf•ft)
M14 85 N•m(63lbf•ft) 135 N•m(100lbf•ft) 170 N•m (125 lbf•ft) 200 N•m (148 lbf•ft)
mmr2005-059 XXIII
