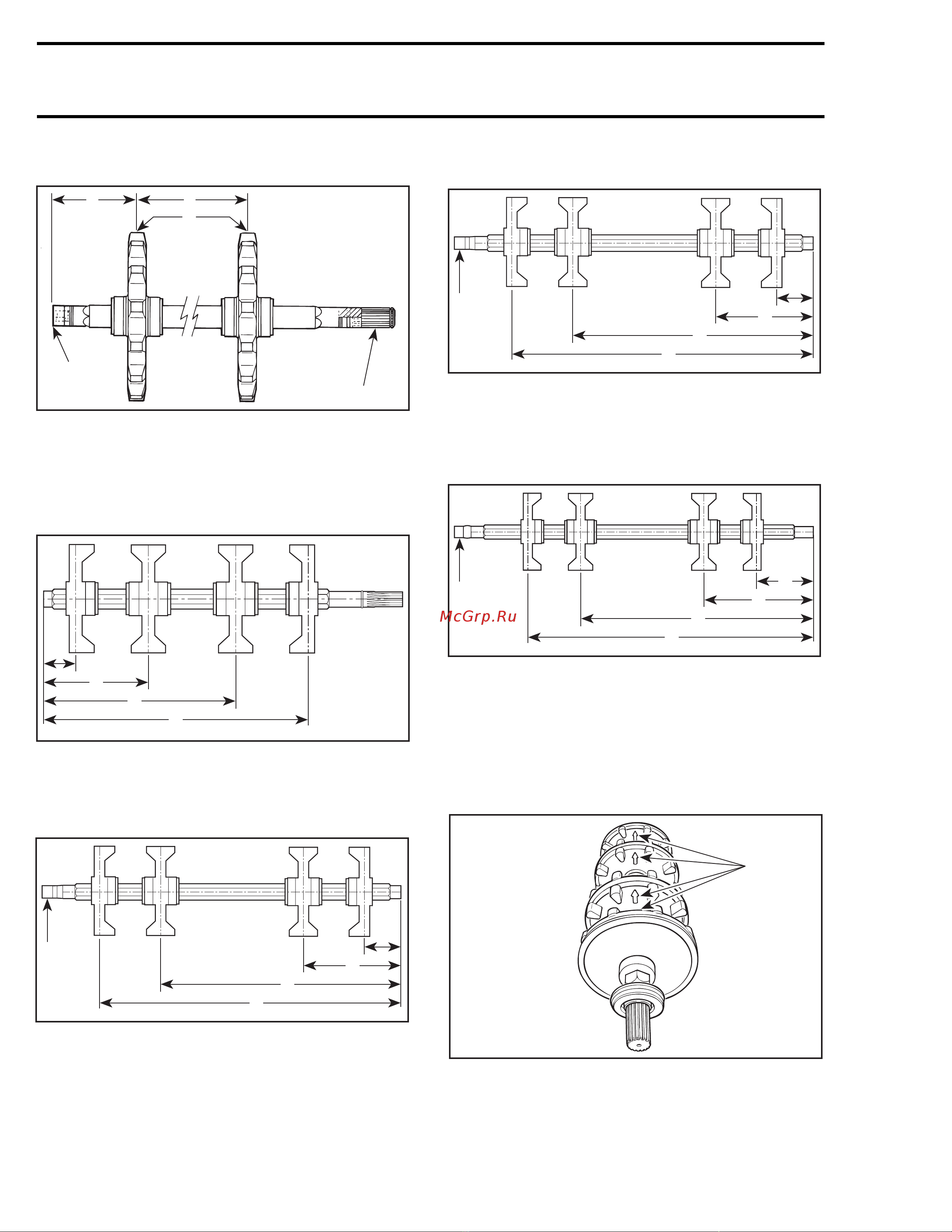

Section 09 REAR SUSPENSION
Subsection 04 (DRIVE AXLE)
Tundra
A00F08B
3
2
1
B
A
TYPICAL
1. Chaincase side
2. Center line of sprocket
3. Drive axle end
A. 83.0 mm (3-17/64 in)
B. 237 mm (9-21/64 in)
Skandic LT/LT E
A29D1UA
D
C
B
A
A. 47.0 mm (1.850 in)
B. 148.0 mm (5.827 in)
C. 271.0 mm (10.669 in)
D. 372.0 mm (14.646 in)
Skandic WT/WT LC/SUV
A29D1VA
D
C
B
A
1
1. Gearbox side
A. 55.0 mm (2.165 in)
B. 157.0 mm (6.181 in)
C. 399.0 mm (15.709 in)
D. 501.0 mm (19.724 in)
Expedition TUV
A29D1VA
D
C
B
A
1
1. Gearbox side
A. 46.0 mm (1.811 in)
B. 148.0 mm (5.827 in)
C. 390.0 mm (15.354 in)
D. 492.0 mm (19.370 in)
Skandic SWT
A29D1WA
D
C
B
A
1
1. Gearbox side
A. 105.0 mm (4.016 in)
B. 207.0 mm (8.150 in)
C. 449.0 mm (17.677 in)
D. 551.0 mm (21.693 in)
All Models
Ensure to align indexing marks of each sprocket
when assembling.
A24D05A
1
TYPICAL
1. Indexing marks aligned
506 mmr2005-051
