Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

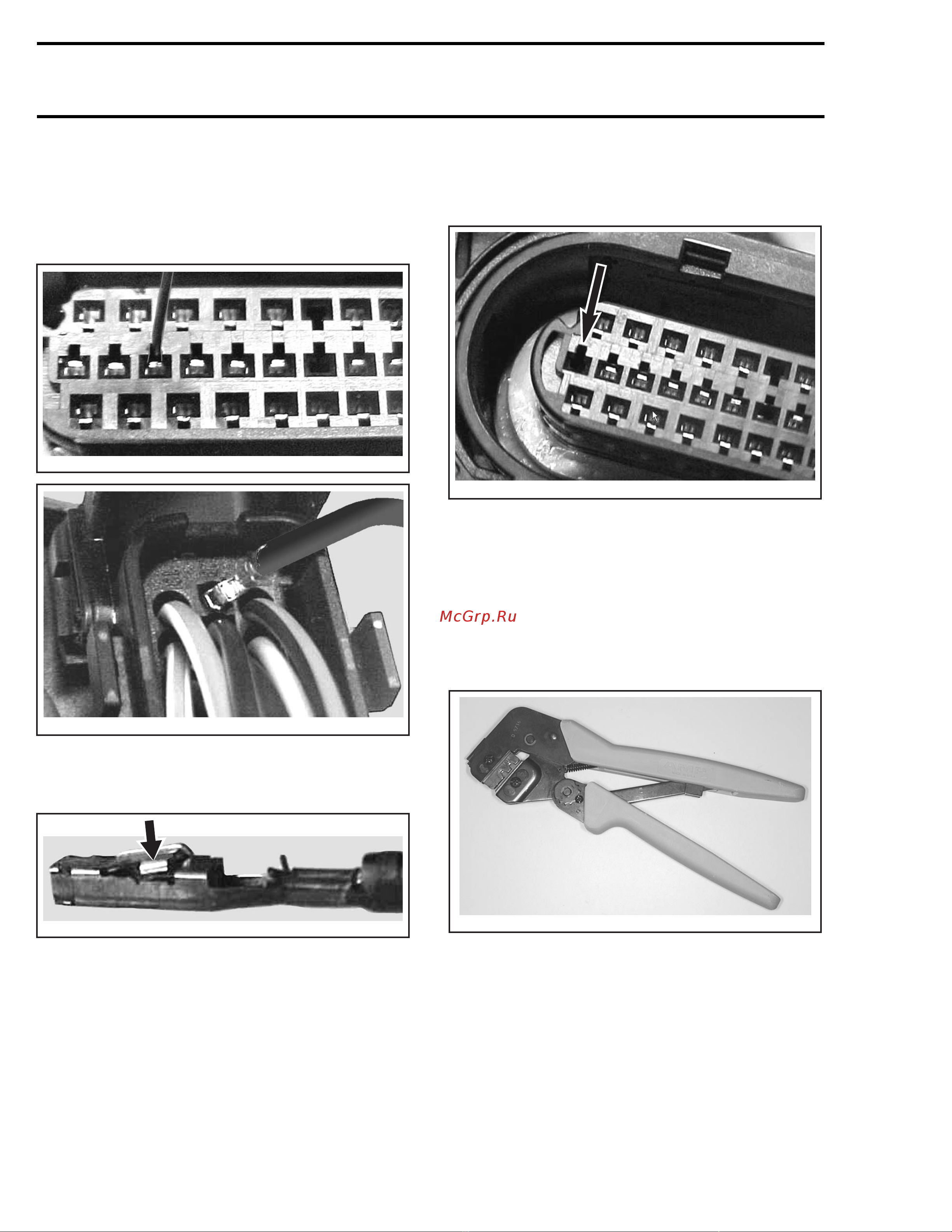

Insert the probe into the housing as shown, and
locate the appropriate wire in the back of the
housing. You may have to slightly cam the probe
against the locking tab to release it, then remove
the terminal from the housing.
F18Z0UA
F18Z0VA
The locking tab on the connector may have to be
bent out a little so it will lock in the housing when
it's re-inserted.
F18Z0WA
If the wire is in good condition but the terminal is
rusted or corroded, remove defective terminal and
crimp a new one. If wire and terminal are defec-
tive, acquire a new genuine wire and new terminal
and crimp them together as explained below.
IMPORTANT: Use genuine wires only. Otherwise
wires will not fit properly.
When re-inserting the connector, the locking tab
must be installed facing the smaller cutout of the
connector cavity.
F18Z0XA
Insert the connector, ensuring the locking tab
snaps into the housing.
Re-install the lock, attach the 2 tie raps, and close
the housing cover.
Terminal Crimping (Kostal and AMP multilock)
To crimp a new connector terminal, use the con-
nector crimping tool (P/N 529 035 909) and the
crimper die (P/N 529 035 906).
F00B0EA
CRIMPING TOOL
To properly crimp the wires, strictly follow this pro-
cedure.
Strip the wire to a maximum of 3 mm (1/8 in).
494 mmr2005-102
