Section 04 ENGINE (4-TEC)
Subsection 05 (CYLINDER AND CYLINDER HEAD)
2
1
R1004motr96A

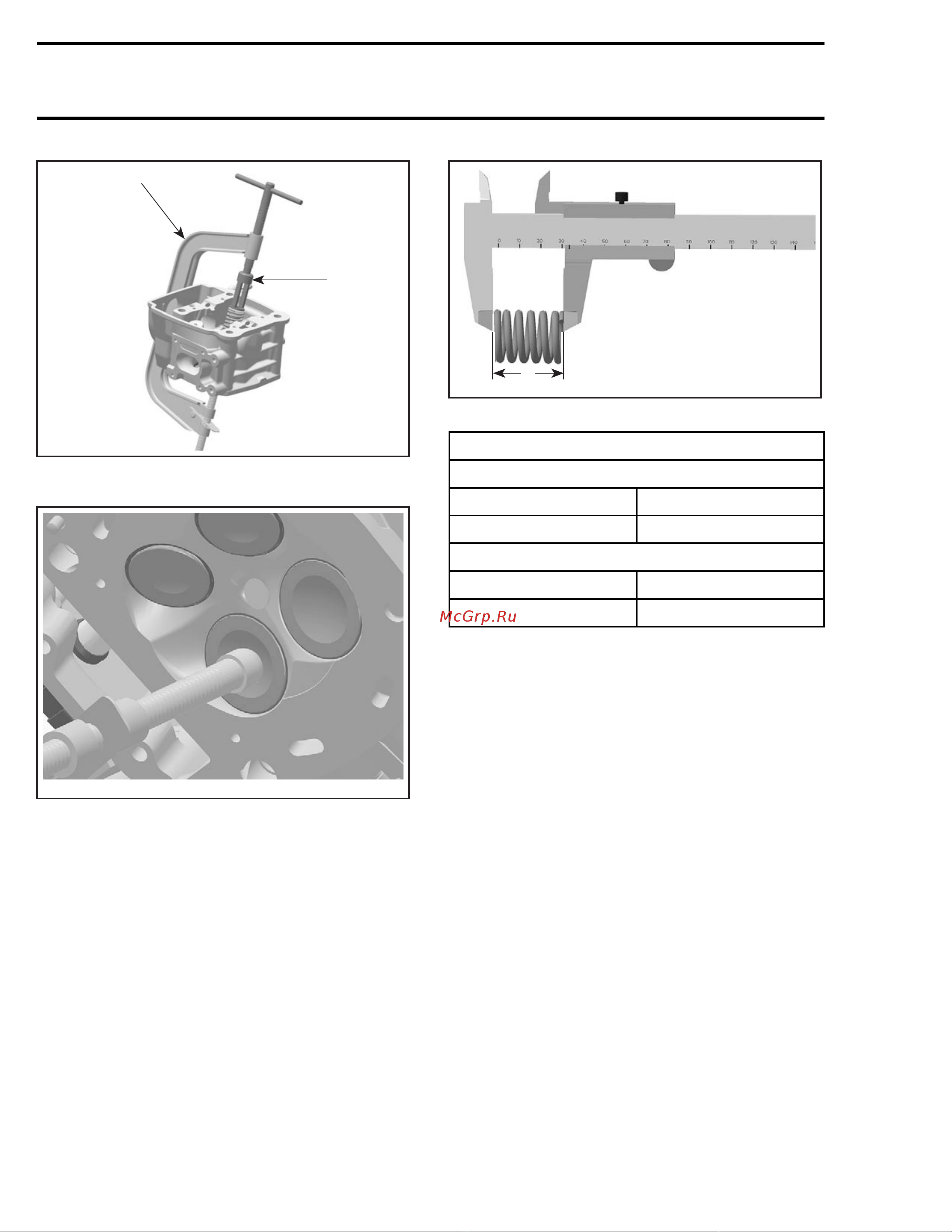

1. Valve spring compressor clamp (P/N 529 035 764)
2. Valve spring compressor cup (P/N 529 035 724)
R1004motr97A
LOCATE VALVE SPRING COMPRESSOR CLAMP IN
CENTER OF THE VALVE
Remove valve cotters no. 19.
Withdraw valve spring compressor, valve spring
retainer no. 18 and valve springs.
Inspection
Check valve springs for rust, corrosion or other
visible damages. If so, replace valve springs.
Check valve springs for free length and straight-
ness.
Replace valve springs if not within specifications.
R1004motr98A
A
A. Valve spring length
VALVE SPRING FREE LENGTH
OUTER VALVE SPRING
NOMINAL (NEW) 45.45 mm (1.789 in)
SERVICE LIMIT
43 mm (1.693 in)
INNER VALVE SPRING
NOMINAL (NEW) 41.02 mm (1.615 in)
SERVICE LIMIT 38.80 mm (1.528 in)
Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
NOTE: Colored area of the valve spring must be
placedontop.
If the color cannot be identified any more, orienta-
tion is possible, based on the shape of the spring.
The spacing of the coils is smaller at one end. At
installation, this end must be directed towards the
cylinder head.
NOTE: Valve cotters must be properly engaged in
valve stem grooves.
224 mmr2005-025
