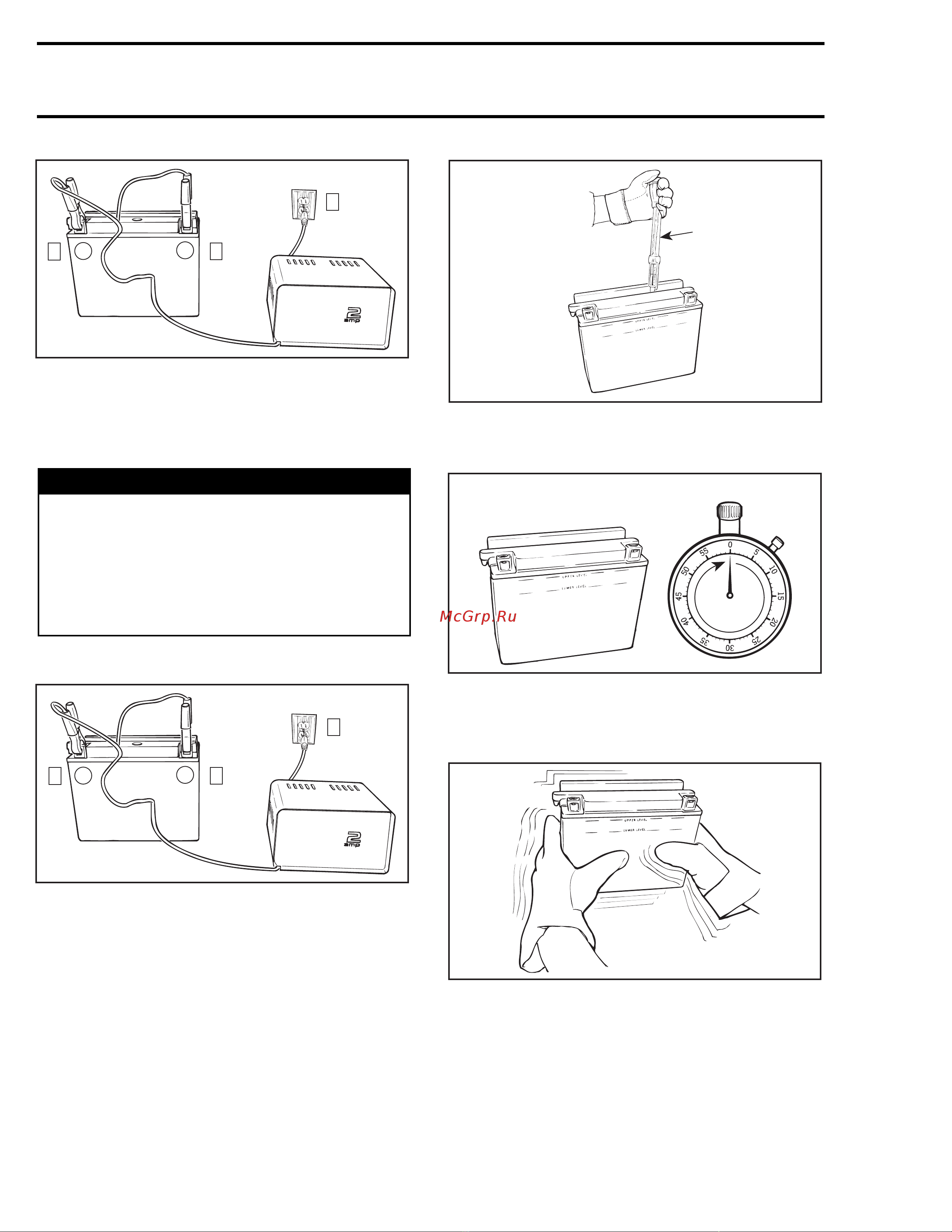

Section08ELECTRICAL
Subsection 04 (BATTERY)
A17E0IA
-
+
2
1
3
CAUTION: If charging rate raises higher than
2.4 A reduce it immediately. If cell tempera-
ture rises higher than 50°C(122°F) (if the casing
feels hot) discontinue charging temporarily or
reduce the charging rate.
WARNING
Gases given off by a battery being charged
are highly explosive. Always charge in a well
ventilated area. Keep battery away from cig-
arettes or open flames. Always turn battery
charger off prior to disconnecting cables.
Otherwise a spark will occur and battery
might explode.
– Disconnect battery charger.
A17E0IB
-
+
1
32
– Test battery state of charge. Use a hydrometer.
A17E0JA
1
1. Specific gravity 1.265
– Let battery settle for 1 hour.
A17E0KA
1
1. 60 minutes
– Allow gas bubbles to escape by lightly shake
battery.
A17E0HA
– Readjust electrolyte level.
444 mmr2005-045
