Section 03 ENGINES
Subsection 09 (REWIND STARTER)

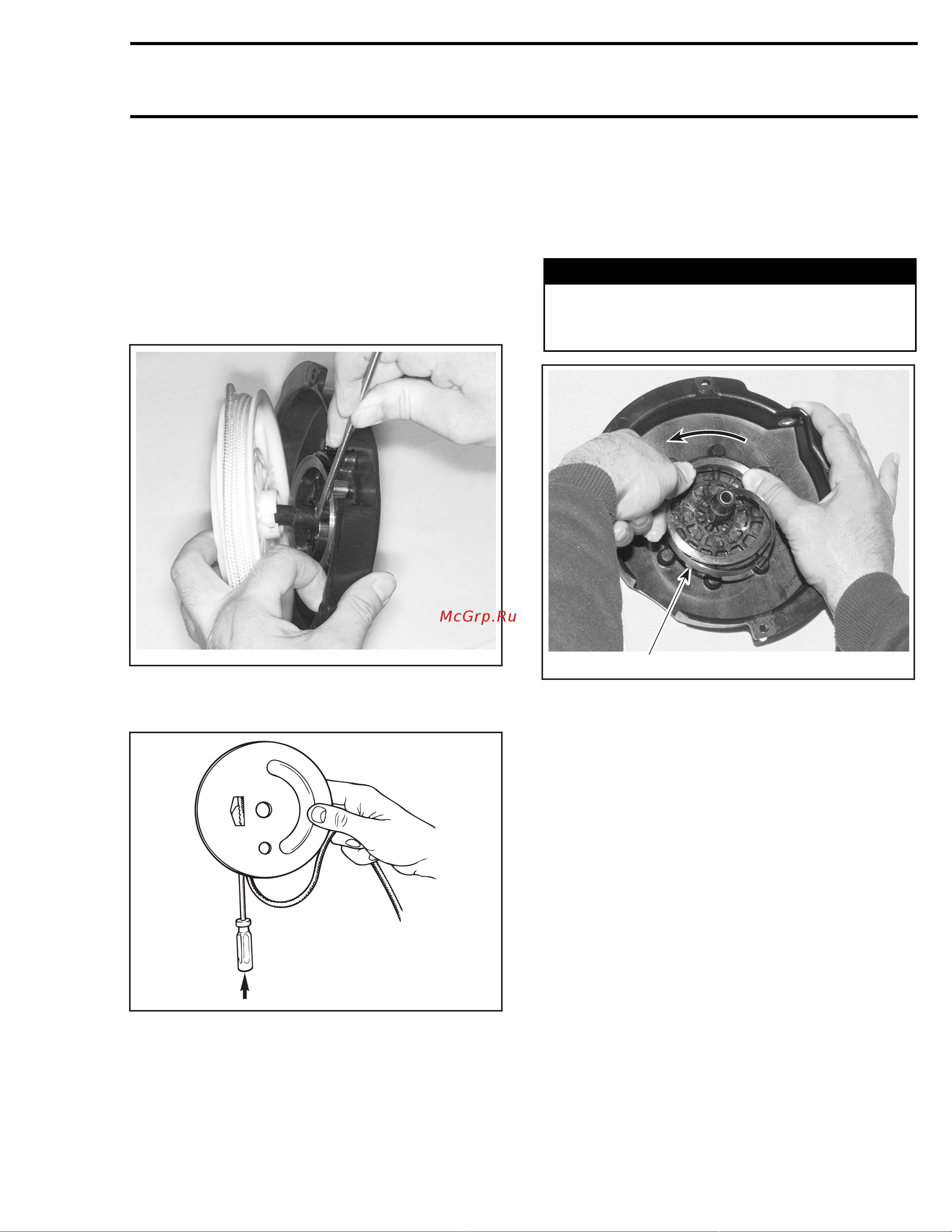

DISASSEMBLY
Undo knot previously tied at removal. Let sheave
get free to release spring preload.
Cut push nut no. 13 and discard. Remove locking
element no. 12,O-ringno. 11,stepcollarno. 10,
pawl lock no. 9 and pawl no. 8.
Remove sheave no. 5 from starter housing no. 1.
Hold spring with a screwdriver.
A03C3EA
Fan Cooled Models Only
Disengage key no. 7 and pull out rope no. 6.
A01C12A
GENTLY TAP ON KEY
Liquid Cooled Models Only
Take out the knot and then rope no. 6.
ASSEMBLY
At assembly, position spring no. 4 outer end into
spring guide notch then wind the spring counter-
clockwise into guide.
WARNING
Since the spring is tightly wound inside the
guide it may fly out when rewind is handled.
Always handle with care.
A03C3FA
1
1. Outer end into guide notch
CAUTION: It is of the utmost importance that
the rewind starter spring be lubricated period-
ically using Molykote PG 54 (P/N 420 899 763).
Otherwise, rewind starter component life will
be shortened and/or rewind starter will not op-
erate properly under very cold temperatures.
Lubricate spring assembly and 1 cm (1/2 in)
wide on bottom of housing with Molykote PG 54
(P/N 420 899 763).
mmr2005-075 151
