Section 10 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
Check condition of ball joints. Replace as re-
quired.
Check skis and runners no. 5 for wear, replace as
necessary.
Check condition of ski stopper no. 26. Replace it
when deteriorated.
To check condition of shock absorber, refer to
sub-section SHOCK ABSORBER INSPECTION
AND SERVICING in section REAR SUSPENSION.
INSTALLATION
For assembly, reverse the disassembly procedure.
However, pay attention to the following.
Tighten nuts and screws to proper torque as men-
tioned in exploded view.
Nuts with a cotter pin: After applying the prop-
er torque, continue tightening as necessary to al-
low cotter pin insertion. Ensure to properly secure
cotter pin.
WARNING
Always install new cotter pins at assembly
and properly bend their ends.

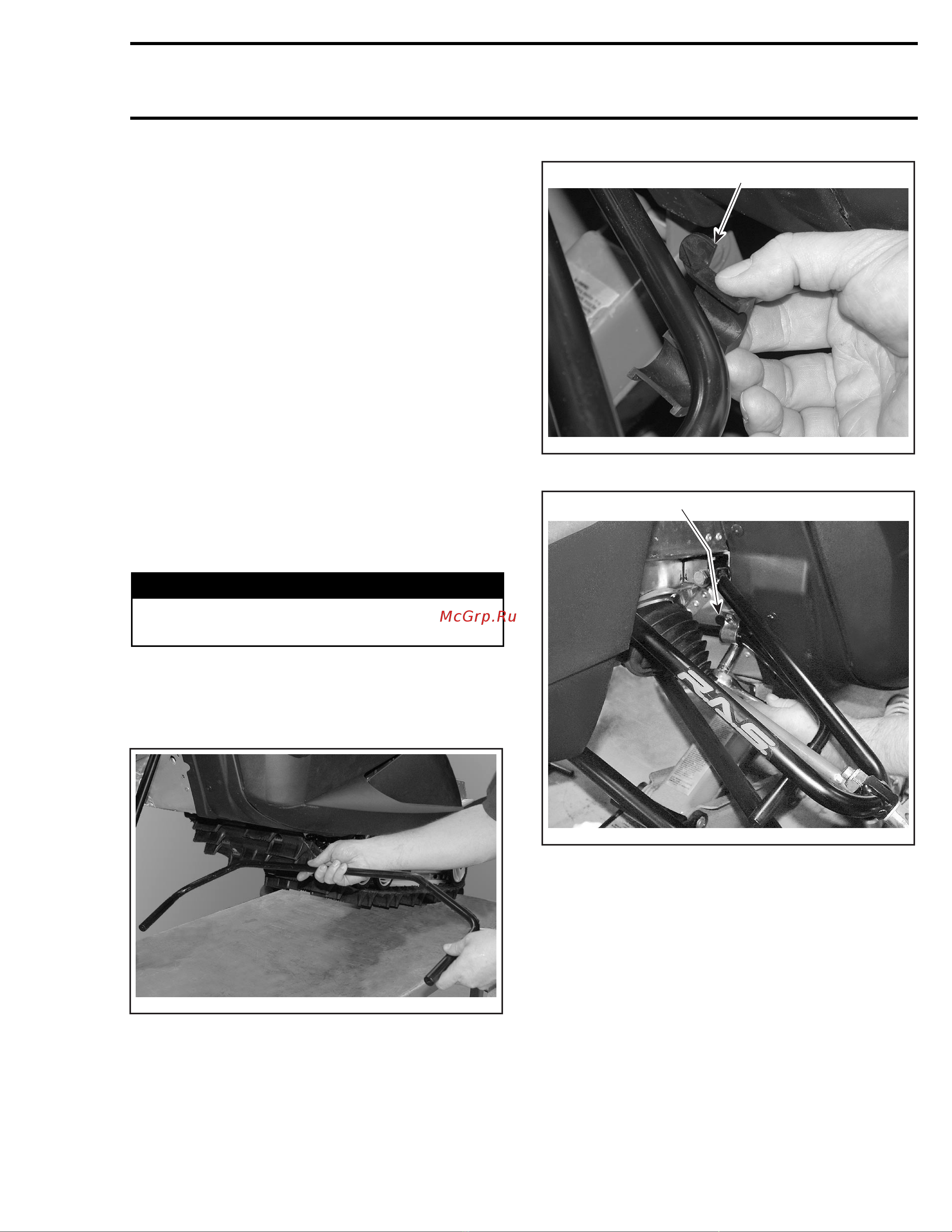

Stabilizer Bar
Ensure to properly position stabilizer bar before
insertion in frame.
A33F26A
Install the stabilizer bar bushing no. 23 making
sure to place its tab over the access hole locat-
ed on the LH side.
1
A33F28A
1. Install bushing as shown
1
A33F27B
1. Tab here to obstruct access hole
Upper Arm
When installing ball joint no. 15 to upper arm, en-
sure to tilt it with the proper angle as shown. The
ball joint housing must be parallel to ski leg tab.
This mounting position corresponds to 10° ±3°
angle from upper arm.
mmr2005-098 455
